AN/JIC FITTINGS - QUICK REFERENCE GUIDE

AN/JIC FITTING & TUBE INFORMATION

Dash Size	Braided Hose I.D.	Hard Tube O.D.	AN/JIC Thread	AN Flare Bore Size	AN/JIC Wire Nut Hex
-3	1/8"	3/16"	3/8" x 24	0.125"	7/16" or 1/2"
-4	7/32"	1/4"	7/16" x 20	0.171"	9/16"
-6	11/32"	3/8"	9/16" x 18	0.298"	11/16"
-8	7/16"	1/2"	3/4" x 16	0.391"	7/8"
-10	9/16"	5/8"	7/8" x 14	0.484"	1"
-12	11/16"	3/4"	1-1/16" x 12	0.608"	1-1/4"
-16	7/8"	1"	1-5/16" x 12	0.844"	1-1/2"
-20	1-1/8"	1-1/4"	1-5/8" x 12	1.078"	1-13/16"

WHAT DOES AN MEAN?

AN stands for Army-Navy standard, a specification developed for military use. The dash number divided by 16 equals the tube outer diameter in inches.

Examples:
AN-4 = 4 ÷ 16 = 1/4"
AN-6 = 6 ÷ 16 = 3/8"
AN-8 = 8 ÷ 16 = 1/2"

Collection: Speedflow AN Fittings, Hose Ends & Adapters

Browse Speedflow hose ends, AN adapters, unions, reducers, bulkhead fittings, banjo fittings, weld bungs and plumbing accessories. Selected Proflow, Aeroflow and other-brand items also appear in this collection; check the brand and part number on each listing.

Choose the matching hose-end series

Match the hose end to the specified hose construction, series and size. An AN size match alone does not establish hose compatibility, and different brands or series should not be assumed interchangeable.

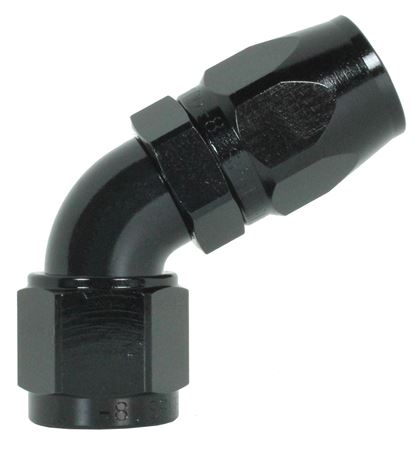

100 Series hose ends: check the specified hose and screw-together assembly requirements. Refer to the 100 Series installation guide.
200 Series hose ends: check the specified hose, olive and assembly components. Refer to the 200 Series installation guide.
400 Series pushlock hose ends and hose: confirm the particular hose is approved for the fitting and intended service. Refer to the 400 Series installation guide.

Adapters, unions and weld fittings

Compare both ends of every fitting: size, thread pitch, male or female connection, sealing interface, angle and clearance. AN flare, O-ring port, tapered pipe, inverted-flare and banjo connections require the correct mating components and seals; similar thread sizes are not enough.

Steel AN flare-to-NPT adapters and 816 Series AN flare-to-NPT adapters
Female unions, reducers and expanders
Weld-on fittings and bungs: check material, thread and intended use. Sensor bungs and fluid-port bungs are not interchangeable.

Plan the complete assembly

Browse Speedflow hose, fuel-system components and oil-system components alongside your fittings. Confirm fluid compatibility, pressure and temperature requirements for every component rather than assuming the whole collection suits the same service.

Check each listing for material, finish, supplied seals, olives, nuts and sale quantity. Follow the applicable assembly instructions and inspect and test the completed system before use. For brake or other safety-critical applications, confirm suitability with the component manufacturer and your installer.
