Collection: 400 Series 120 Degree Hose Ends

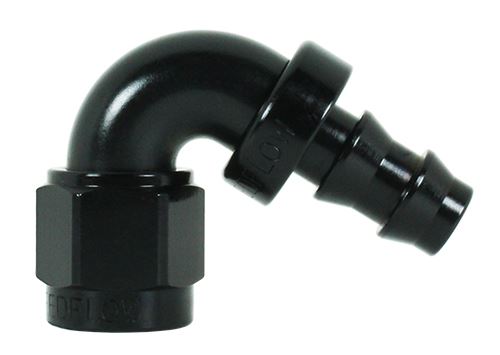

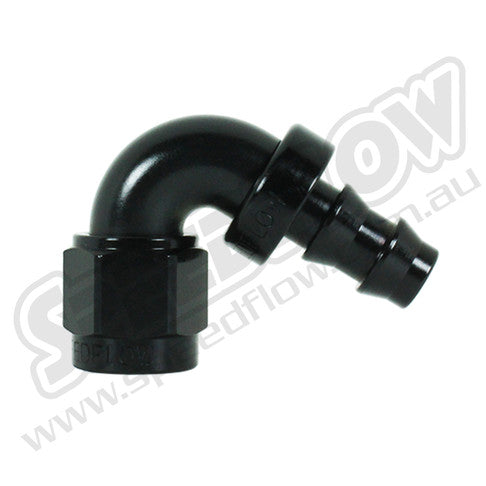

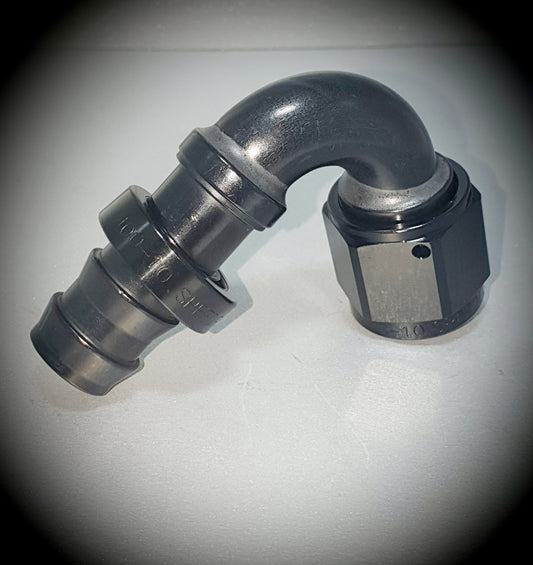

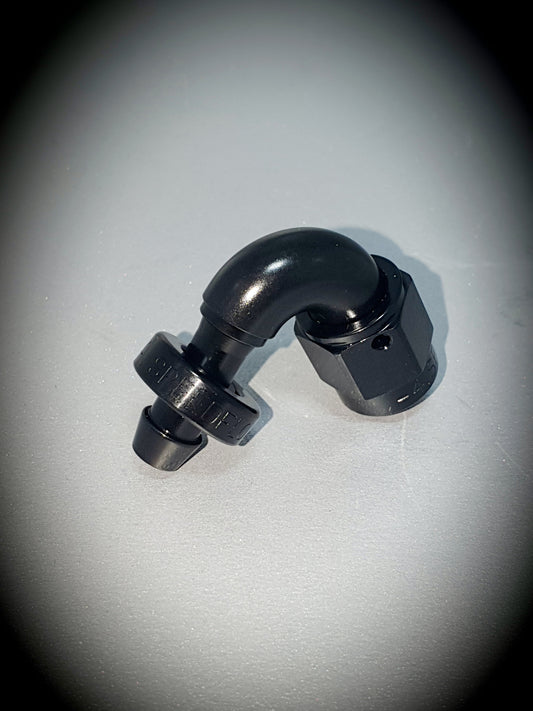

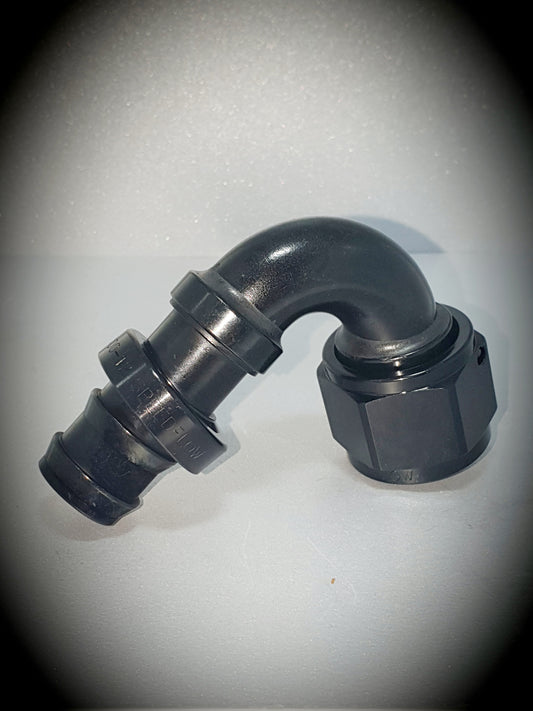

Speedflow 400 Series 120° Hose Ends - Push-Lock AN Fittings

Premium 120-degree push-lock hose ends for complex routing in fuel, oil, coolant, and air systems. The Speedflow 400 Series 120° fittings solve challenging plumbing situations where standard angles won't work, perfect for navigating around headers, frames, and tight engine bays.

Why Choose 120° Hose Ends?

120-degree fittings are ideal for complex routing scenarios where you need more than a 90-degree turn but less than a complete U-turn. They're perfect for wrapping lines around obstacles, creating clean routing paths in tight spaces, and maintaining proper hose orientation in difficult installations.

Common Applications

• Header clearance - Route fuel or oil lines around exhaust headers without excessive heat exposure
• Turbo installations - Navigate around turbochargers and manifolds in tight engine bays
• Frame routing - Wrap lines around chassis rails and crossmembers
• Remote cooler lines - Complex routing from engine to remote oil or transmission coolers
• Firewall pass-throughs - Angle lines properly when passing through bulkheads
• Custom fuel cells - Professional routing from tank to engine in race cars

400 Series Features

• Push-lock design - No special tools required, simply push hose onto fitting
• Billet aluminium construction - CNC machined from 6061-T6 aircraft-grade aluminium
• Hard-coat anodized finish - Black anodized surface resists corrosion and looks professional
• Full-flow design - Minimal restriction for maximum performance
• Wide compatibility - Works with 400, 332, and 598 Series Speedflow hoses
• Multiple sizes - Available in -3AN to -20AN

Compatible Fluids

• Fuel (petrol, diesel, E85, methanol)
• Engine oil and synthetic lubricants
• Coolant and water
• Air and boost pressure
• Brake fluid and hydraulic fluids

Shop Other 400 Series Angles

Need a different angle for your routing? Browse our complete range:

• Straight hose ends - Direct connections
• 30° hose ends - Gentle angle routing
• 45° hose ends - Standard angle fittings
• 60° hose ends - Perfect for tight spaces
• 90° hose ends - Right angle connections
• 180° hose ends - U-turn connections

Complete Your System:

• 400 Series Speedflow hose - Premium braided hose
• Browse all Speedflow fittings - Adapters, unions, and specialty fittings
• Fuel system components - Pumps, regulators, filters

Australian Stock - Perth Dispatch
