Collection: Speedflow AN Tee Fittings - Swivel on Run & Branch

Browse Speedflow AN tee fittings with swivel-on-run and swivel-on-branch configurations. This collection includes both 145 Series and 144 Series listings, so choose by the exact part number and connection layout rather than the collection name alone.

Listed fittings

  • 144 Series swivel on branch: -3 AN steel 144-03-S and -4 AN black aluminium 144-04-BLK.
  • 145 Series swivel on run: -3 AN black aluminium 145-03-BLK and -3 AN steel 145-03-S.
  • 145 Series swivel on run: black aluminium listings in -4, -6, -8 and -10 AN, with respective part numbers 145-04-BLK, 145-06-BLK, 145-08-BLK and 145-10-BLK.

Confirm all three connections

The run is the straight-through section of the tee; the branch is the side connection. Check the size, gender and flare sealing arrangement of every port against the manufacturer's drawing before ordering.

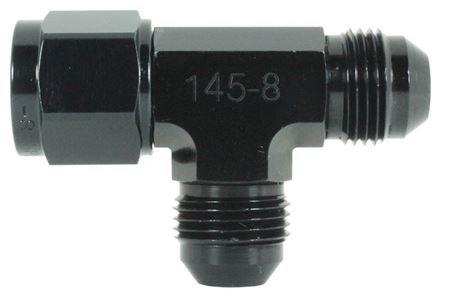

The 145 Series has one female AN swivel on the run, with male AN connections at the opposite end of the run and on the branch. The 144 Series has a female swivel on the branch and two male AN connections on the run. Match each connection to the corresponding mating fitting.

Installation and application checks

Check fitting dimensions, surrounding clearance, hose routing and tool access. An installation swivel feature does not by itself establish suitability for continuous rotation in service.

Material and finish vary by part. Confirm fluid compatibility, internal seal requirements, working pressure and temperature for the selected tee and complete assembly. Do not assume suitability for brake, hydraulic or nitrous systems from the AN size alone.

Follow Speedflow's installation and tightening instructions, and inspect and test the completed assembly before use.
