Collection: Bulkhead Fittings - Speedflow

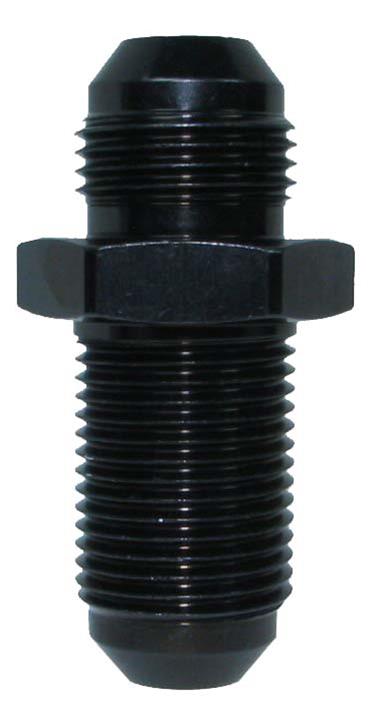

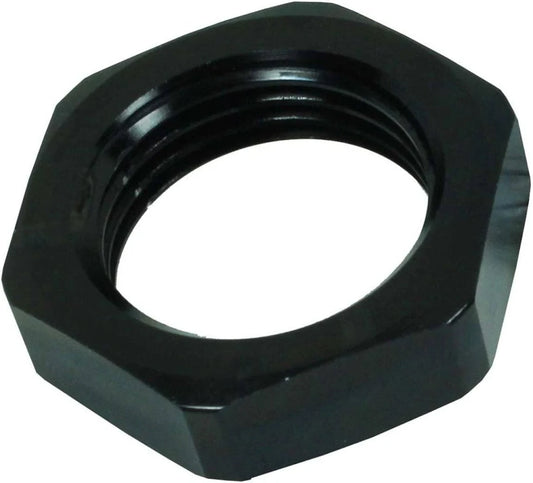

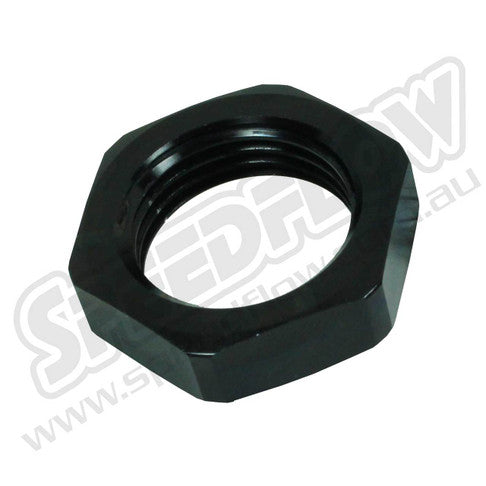

Browse Speedflow bulkhead fittings and nuts for routing compatible plumbing connections through panels and brackets. The range includes straight and 90° flare bulkheads, bulkhead tees, a 200 Series hose-to-bulkhead fitting and bulkhead nuts, with steel and alloy options across the individual listings.

Choosing a Bulkhead Fitting

  • Connections: Match the size, thread and flare connection at each end to your mating fittings. For the 200 Series hose-to-bulkhead fitting, confirm the specified hose series and bulkhead-end thread rather than choosing by AN size alone.
  • Layout: Choose a straight, 90° or tee configuration to suit your plumbing layout. Check hose routing, bend radius and clearance on both sides of the panel.
  • Panel mounting: Confirm the required hole size, panel thickness, usable mounting-thread length and compatible bulkhead nut. Check each listing for included hardware.
  • Application: Confirm the individual fitting's material, fluid compatibility, pressure and temperature limits for your system.

Mounting & Sealing

A bulkhead nut secures the fitting to the panel; it does not by itself create a fluid-tight seal through a tank wall. For tank or fuel-cell installations, confirm that the fitting and sealing arrangement are designed for that application.

AN flare connections seal at the mating flare seats, not the threads. Follow the manufacturer's installation instructions and support hose runs so they do not place unnecessary load on the fitting or panel.

25 products
