SWT0615 Steering U-Joint | 3/4 Smooth to 3/4-30 Spline

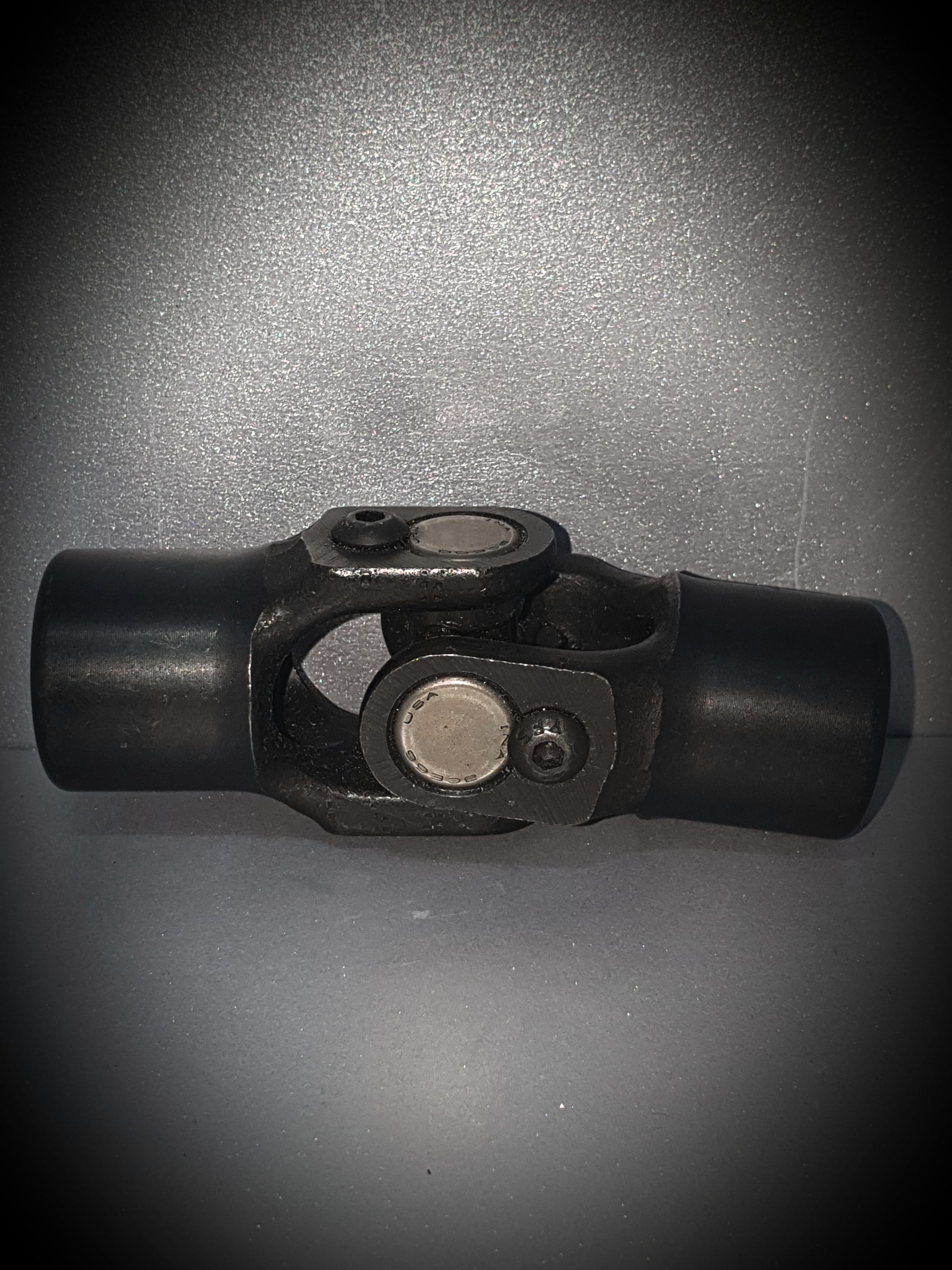

SWT0615 Steering Universal Joint

Connect a steering shaft to a control valve or servo with the SWT0615 universal joint. It combines a 3/4-inch smooth-bore weld-on end with a 3/4-inch 30-spline end and set screw for the listed steering connection.

Fitment and specifications

• Part number: SWT-0615
• Application: control valves and servos, when the listed connections match
• End #06: 3/4-inch smooth-bore weld-on
• End #15: 3/4-inch, 30-spline with set screw
• Maximum operating angle: 30 degrees
• Material: steel
• Finish: black oxide
• Weight: 292g

Before ordering

Confirm the control-valve or servo application, weld-on tube connection, 3/4-30 spline count, available operating angle, and steering-system clearance before ordering. Do not rely on vehicle model alone.

Suitable for the listed control-valve or servo connection when the 3/4-inch smooth-bore weld-on and 3/4-30 spline specifications match.
