Proflow ADR Brake Line -03AN Stainless Braided 500mm - Street Legal (PFEADR500)

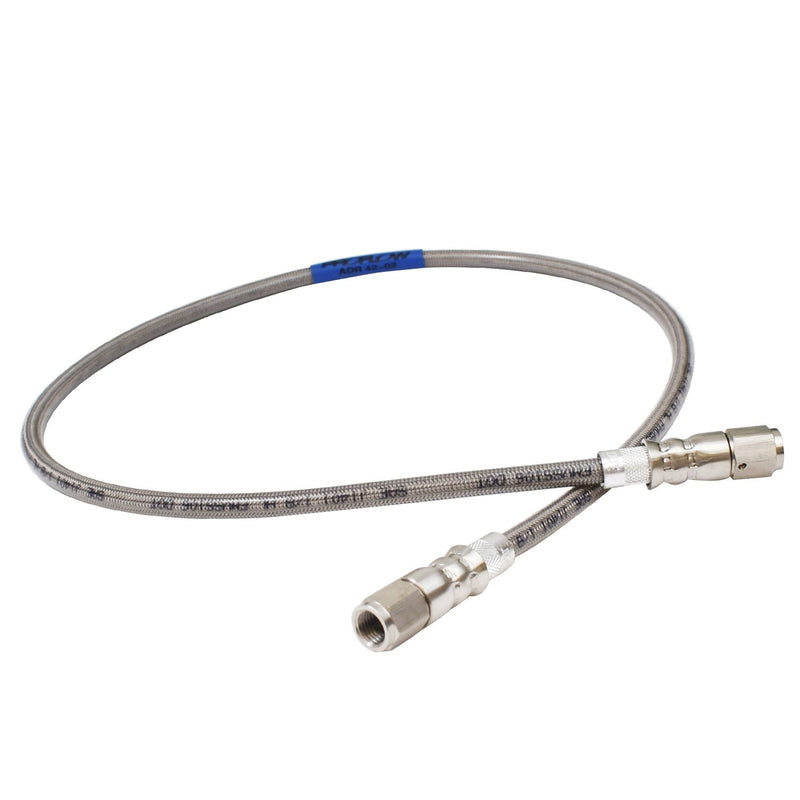

Proflow ADR-Approved Braided Brake Line - 500mm

The Proflow PFEADR500 street-legal braided brake line delivers improved brake feel and response while meeting Australian Design Rules (ADR 42/04) for road use. This premium 500mm brake line eliminates the expansion of standard rubber lines under hard braking, resulting in better pedal feel and more consistent braking performance.

Key Features

• ADR 42/04 Approved: Fully street legal for Australian road use
• -03AN Female Ends: Pre-crimped with quality AN3 female hose ends

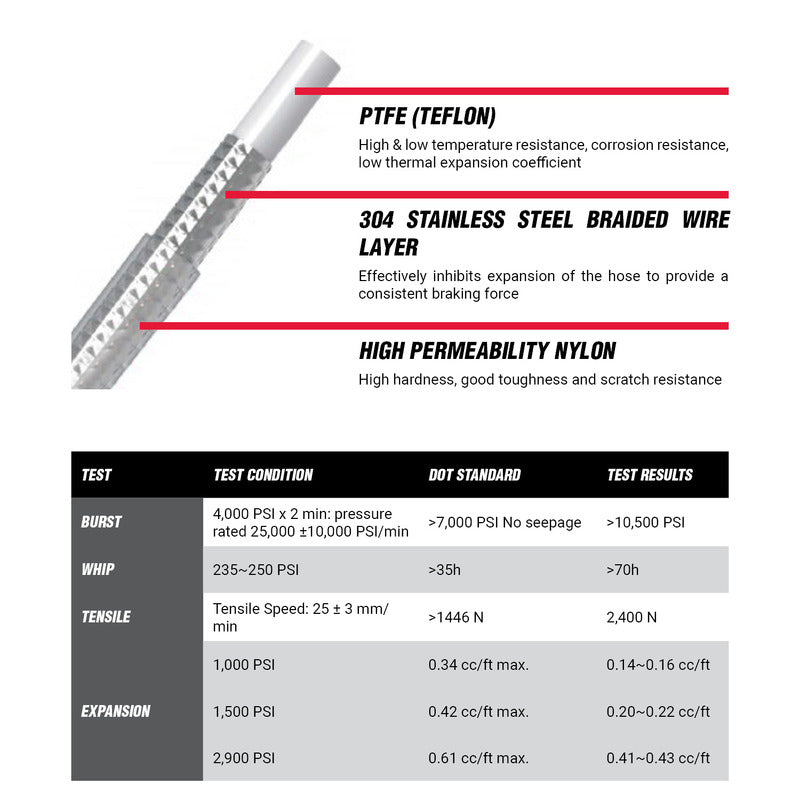

• PTFE Inner Tube: J1501 poly coated for superior fluid compatibility
• Stainless Steel Braided Cover: Provides strength and abrasion resistance
• Clear PVC Coating: Protects against abrasion and environmental damage
• Wide Temperature Range: Operates from -70°C to 260°C
• 500mm Length: Suitable for many brake line applications
• Improved Brake Feel: Eliminates rubber line expansion for firmer pedal

Performance Benefits

• Better braking response time compared to rubber lines
• Reduced pedal sponginess under hard braking
• Consistent performance during track days or spirited driving
• No expansion under high brake pressure
• Long-lasting durability in harsh conditions

Technical Specifications

• Length: 500mm
• Fitting size: -03AN female both ends
• Inner tube: PTFE (J1501 poly coated)
• Cover: Stainless steel braid with clear PVC coating
• Temperature rating: -70°C to 260°C
• Compliance: ADR 42/04 approved
• Weight: 0.01kg

Installation Note: Always use new crush washers when installing brake lines. Bleed brakes thoroughly after installation. Inspect regularly for wear or damage.

Perfect for: Street cars, performance builds, track day cars, and any application requiring ADR-approved braided brake lines with improved feel and response.

Part number: PFEADR500 | SKU: PFEADR500 | Barcode: 90014581 | Australian stock ready to ship.
