PFE631-06-06 Proflow Barb End Adaptor, Suit 3/8'' Barb to AN6 Male, Black, Each

Proflow Barb to -6 AN Male Adapter - 3/8" Barb

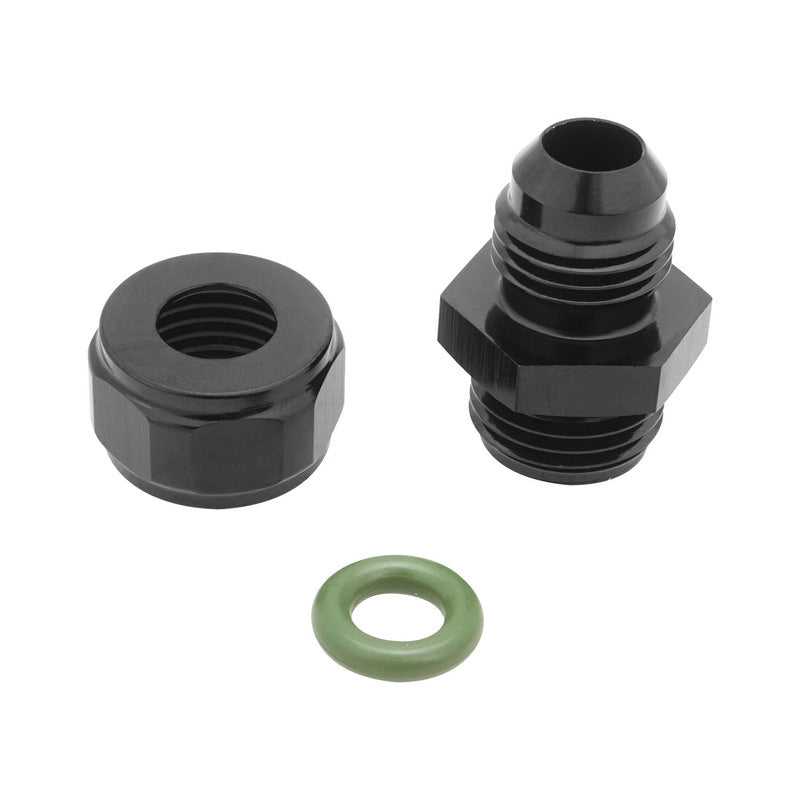

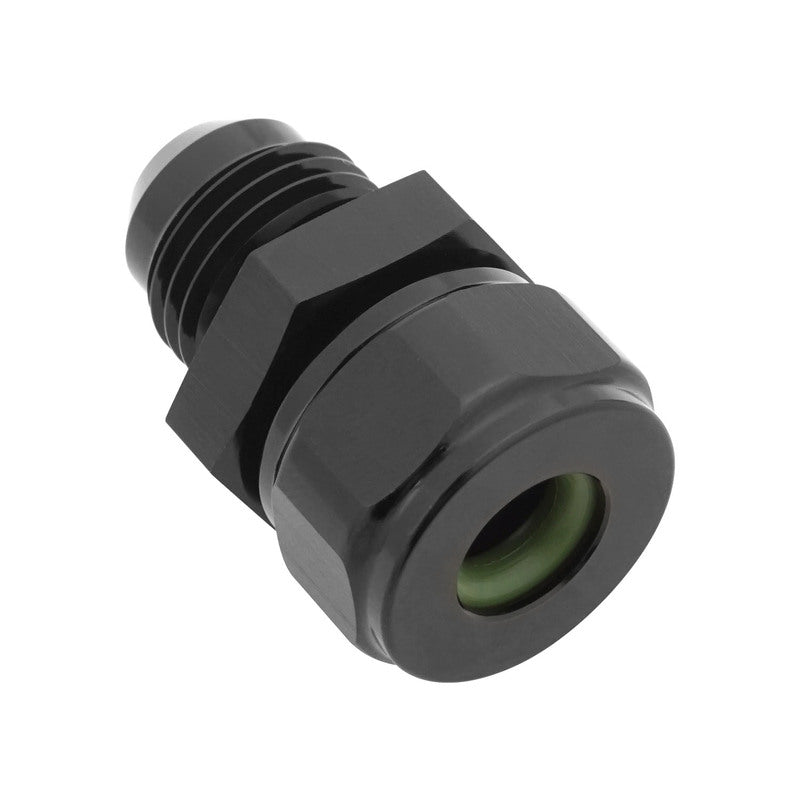

The Proflow PFE631-06-06 barb end adapter provides a clean, professional solution for converting barbed fuel pumps and accessories to AN fittings. This precision-machined adapter features an internal O-ring seal design that eliminates the need for hose clamps on the barb side, delivering a leak-free connection for your fuel or oil system.

Key Features

• 3/8" Barb to -6 AN Male: Converts barbed connections to standard -6 AN fittings
• Internal O-Ring Seal: No hose clamps needed on barb side for clean installation
• CNC-Machined Aluminium: Precision construction for reliable, leak-free performance
• Black Anodized Finish: Corrosion-resistant coating with professional appearance
• Universal Application: Works with fuel pumps, oil pumps, and other barbed accessories
• Compact Design: Low-profile fitting saves space in tight installations

Technical Specifications

• Barb size: 3/8 inch (9.5mm)
• AN size: -6 AN male
• Material: CNC-machined aluminium
• Finish: Black anodized
• Seal type: Internal O-ring (barb side)
• Thread: -6 AN (9/16"-18 UNF)

Common Applications

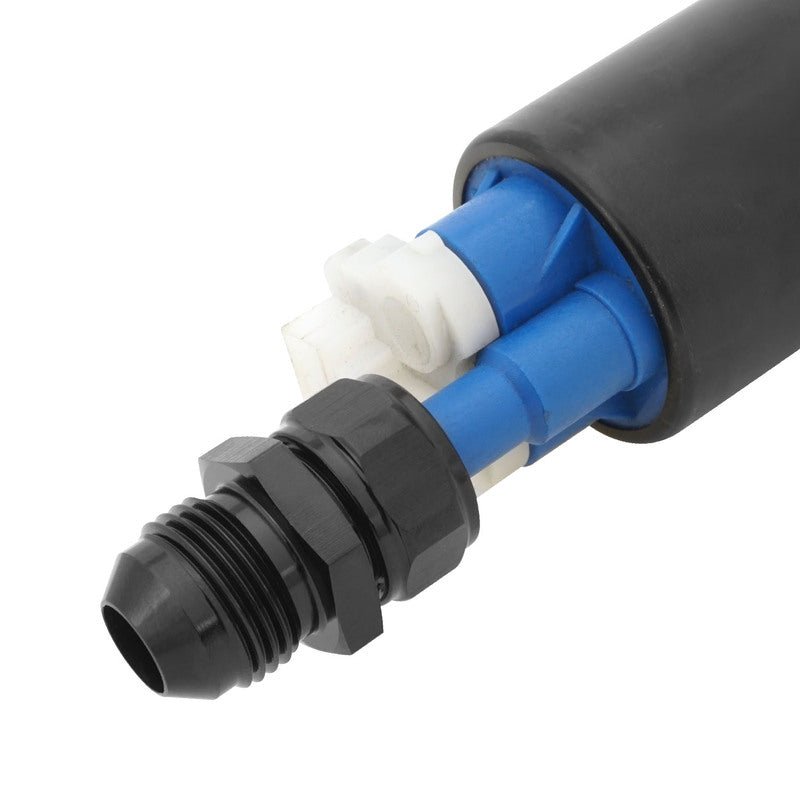

• In-tank fuel pumps with barbed outlets
• External fuel pumps
• Oil pumps and accessories
• Converting barbed fittings to AN plumbing
• Custom fuel system builds

Installation Note: The internal O-ring provides the seal on the barb side - simply push the barb into the hose for a secure, leak-free connection. Use a -6 AN female fitting or hose end on the threaded side.

Perfect for: Fuel system upgrades, oil system plumbing, race cars, street performance builds, and any application requiring conversion from barbed to AN fittings.

Part number: PFE631-06-06 | Barcode: 90014240 | Australian stock ready to ship.
