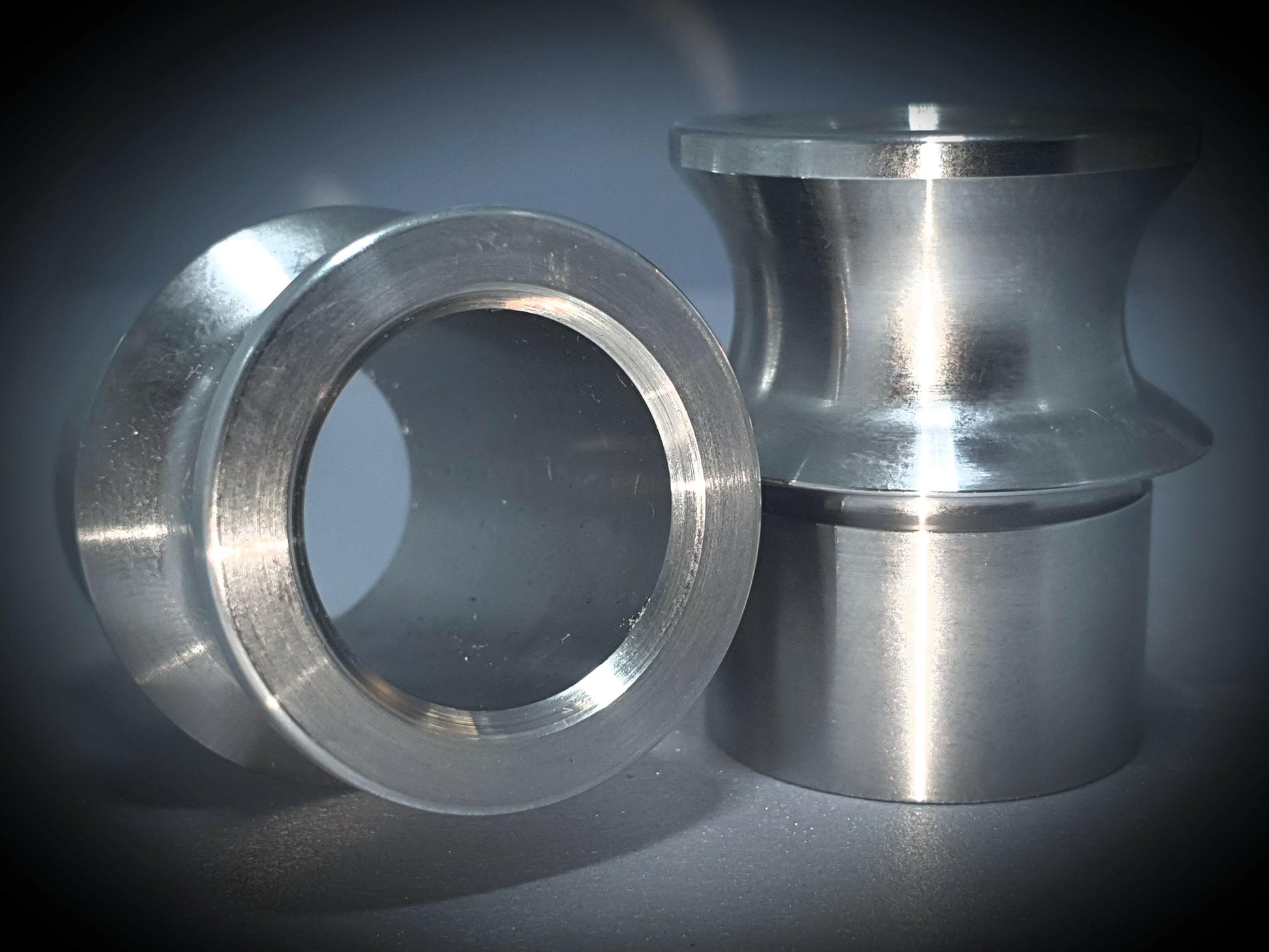

KTKHMA10034NOR 17-4 Stainless Steel Hourglass Misalignment Spacer For 1" Heim Or Uniball For 3/4" Bolt 2-3/4" Stack (PAIR)
KTKHMA10034NOR 17-4 Stainless Steel Hourglass Misalignment Spacer For 1" Heim Or Uniball For 3/4" Bolt 2-3/4" Stack (PAIR)
misalignment spacer
Couldn't load pickup availability
High misalignment spacers are designed for suspension joints, steering tie rod ends and anything else that uses the pivot of a spherical bearing such as heim joints, rod ends and uniballs. They have two functions. They reduce the hole size to accommodate a smaller bolt and increase the max angle of a spherical bearing.
How much the angle is increased is determined by the bolt size and the amount of material removed. When more material is removed, the strength of the spacer is decreased. The same happens when using a larger bolt. To compensate for this we only use heat treated 17-4 stainless steel for our spacers. This also prevents corrosion when used in everyday applications.
We offer a wide variety of high misalignment spacers for almost every possible application.
- Not all spacers will fit every uniball or heim joint. See diagram below regarding uniballs.
- The stack height or width in the title of the page is a nominal dimension. See below for actual decimal dimension.
- Material: 17-4 Heat treated stainless steel
- (A) Shoulder Height: 0.475"
- (B) Head Diameter: 1.000"
- (C) Half The Stack Height: 0.910"
- Nominal Stack Height: 1-13/16"
- Actual Stack Height: 1.820"
- (D) Bolt Size: 5/8"
- (E) Heim Or Uniball Size: 3/4"
- (F) Depth: 0.437"

Will Fit:
- Aurora Bearing Company
- FK Rod Ends
- NHBB New Hampshire Ball Bearings
- RBC Aerospace Bearings
