KTK2118 GM LS Engine Clover Shaped Weld On Steel Mounting Plate 3/16" Thick 3-1/16" x 4-7/16" Bolt Pattern
KTK2118 GM LS Engine Clover Shaped Weld On Steel Mounting Plate 3/16" Thick 3-1/16" x 4-7/16" Bolt Pattern
Regular price
$32.70 AUD
Regular price
Sale price
$32.70 AUD
Unit price
/
per
Tax included.
Couldn't load pickup availability

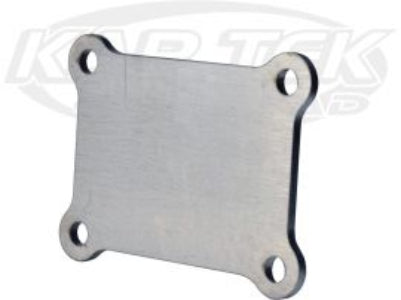

GM LS Engine Clover Shaped Weld On Steel Mounting Plate 3/16" Thick 3-1/16" x 4-7/16" Bolt Pattern
These flat mounting plates are for fabricating your own solid motor mounts. The plate features the bolt pattern for GM's LS series engines. They are sold individually.
Dimensions:
Dimensions:
- 3/16" Thick Laser Cut Mild Steel
- 5-3/8" Wide
- 4" Tall
- 7/16" Mounting Holes
- 3-1/16" Center To Center Vertically
- 4-7/16" Center To Center Horizontally
Share
Low stock: 2 left
View full details![KTK2118 GM LS Engine Clover Shaped Weld On Steel Mounting Plate 3/16" Thick 3-1/16" x 4-7/16" Bolt Pattern](http://racereadygear.com.au/cdn/shop/products/chevy-chevrolet-gm-ls1-ls2-ls3-ls4-ls5-ls6-ls7-lsx-engines-clover-shaped-weld-on-steel-mounting-plates_270x202_f2116675-17d9-4579-bbe5-674e1adee47d.jpg?v=1631000291&width=1445)
