Holley Power Valve 125-25 | 2.5 Hg Single-Stage Low Vacuum Racing + Gasket

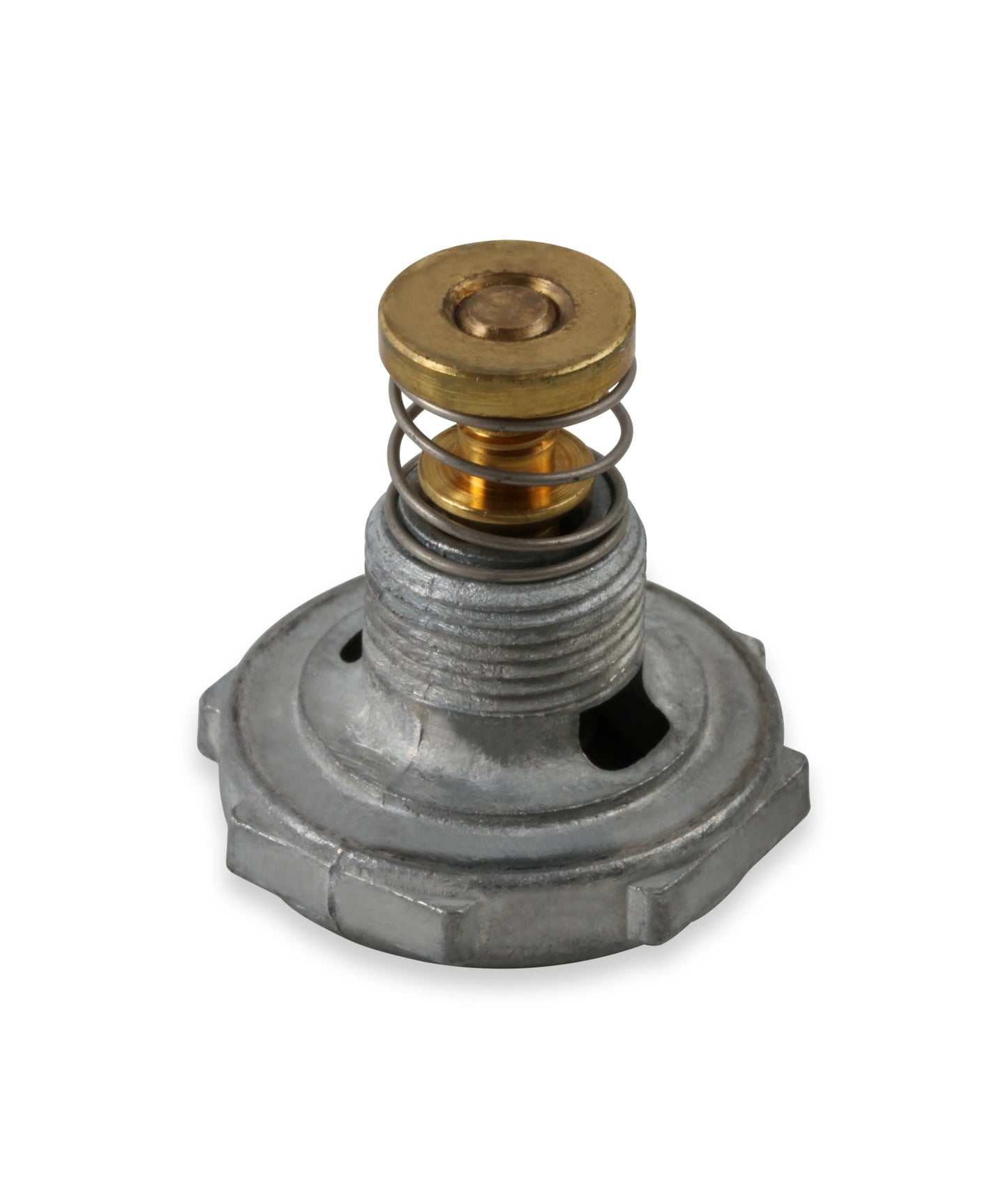

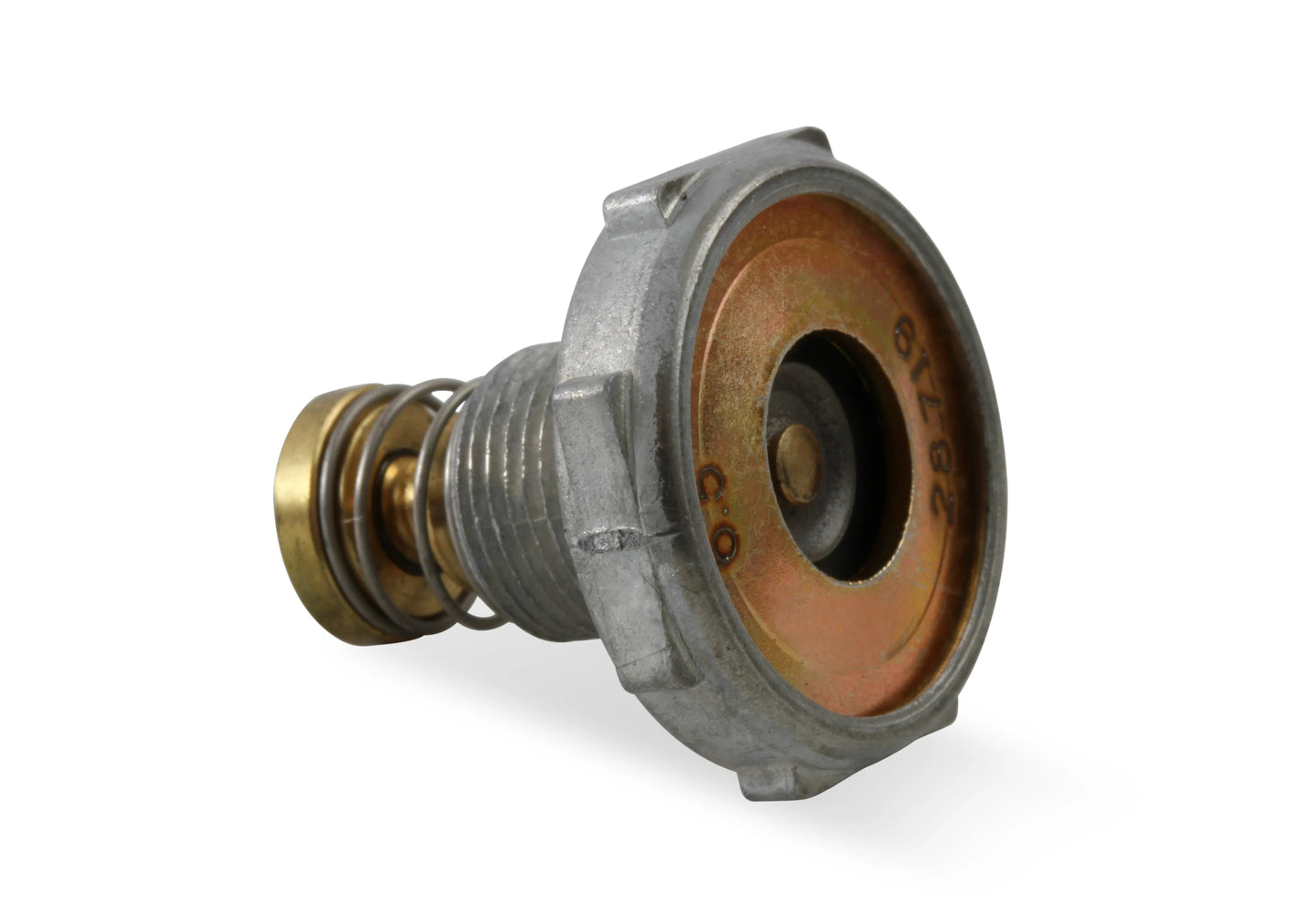

Holley Single-Stage Power Valve - Part #125-25

Ensure optimal fuel enrichment during acceleration with this genuine Holley 2.5 in. Hg power valve. This critical component operates vacuum-controlled enrichment in your carburetor's power circuit, opening at 2.5 inches of mercury to deliver additional fuel during heavy acceleration and full-throttle operation, preventing lean conditions and hesitation. Designed specifically for low-vacuum, high-performance engines with aggressive camshafts. Includes gasket for complete installation.

What's Included:

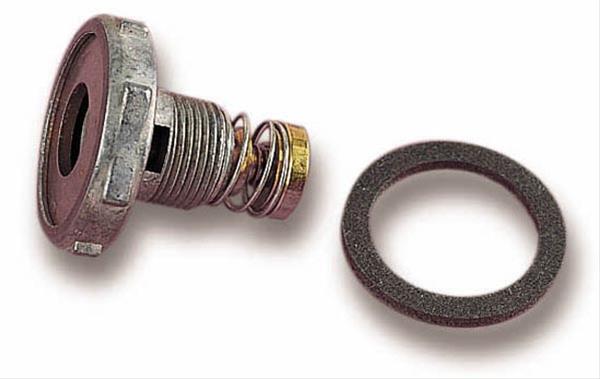

• 1x power valve (2.5 in. Hg rating)
• 1x gasket

Key Features:

• 2.5 in. Hg Rating: Opens at 2.5 inches of mercury vacuum for low-vacuum engine applications
• Single-Stage Design: Standard flow for high-performance applications
• Vacuum Operated: Automatically responds to engine load conditions
• Genuine Holley Quality: OEM-grade component for reliable performance
• Standard Flow: Balanced enrichment for aggressive performance engines
• Gasket Included: Complete installation kit for leak-free operation

Performance Benefits:

• Prevents lean conditions during acceleration and heavy load
• Eliminates hesitation and bogging under throttle
• Provides smooth, consistent power delivery
• Automatically enriches fuel mixture when engine vacuum drops
• Essential for proper carburetor performance on aggressive cam engines
• Prevents power valve from opening at idle on low-vacuum engines

Understanding Power Valves:

• Function: Adds fuel to the main circuit when engine vacuum drops below the valve's rating
• Vacuum Rating: The point (in inches of mercury) at which the valve opens
• Selection Rule: Typically use a valve rated at half your idle vacuum reading
• Common Ratings: Range from 2.5 to 10.5 in. Hg for different applications
• 2.5 Rating: Lowest common rating for engines with 5-6 in. Hg idle vacuum (aggressive cams, racing)

Ideal Applications:

• High-performance engines with aggressive camshafts and low idle vacuum
• Racing engines with 5-6 in. Hg idle vacuum (use half of idle vacuum)
• Street/strip combinations with radical camshafts
• Engines with significant valve overlap and low manifold vacuum
• Replacing failed or damaged power valves
• Carburetor rebuilds on high-performance engines

When to Replace:

• During carburetor rebuild or overhaul
• If experiencing hesitation or stumbling during acceleration
• After engine backfire (can rupture power valve diaphragm)
• When changing camshafts or engine modifications affect idle vacuum
• If fuel leaks from the power valve area
• If current power valve rating is too high for low-vacuum engine

Selection Tips:

• Measure idle vacuum with engine fully warmed and in gear (automatic) or neutral (manual)
• Divide idle vacuum reading by 2 to determine proper power valve rating
• Example: 5 in. Hg idle vacuum ÷ 2 = 2.5 in. Hg power valve
• Very low vacuum engines (big cams, racing) need lowest-rated valves (2.5-3.5 in. Hg)
• Using too high a rating on low-vacuum engines causes rich idle and poor fuel economy
• 2.5 in. Hg is the lowest common rating available

Technical Specifications:

• Part Number: 125-25
• Vacuum Rating: 2.5 inches of mercury (in. Hg) - lowest common rating
• Type: Single-stage power valve
• Flow: Standard
• Includes: Gasket
• Application: Holley performance carburetors with power valve circuits
• Common Use: Engines with 5-6 in. Hg idle vacuum (aggressive cams, racing)
