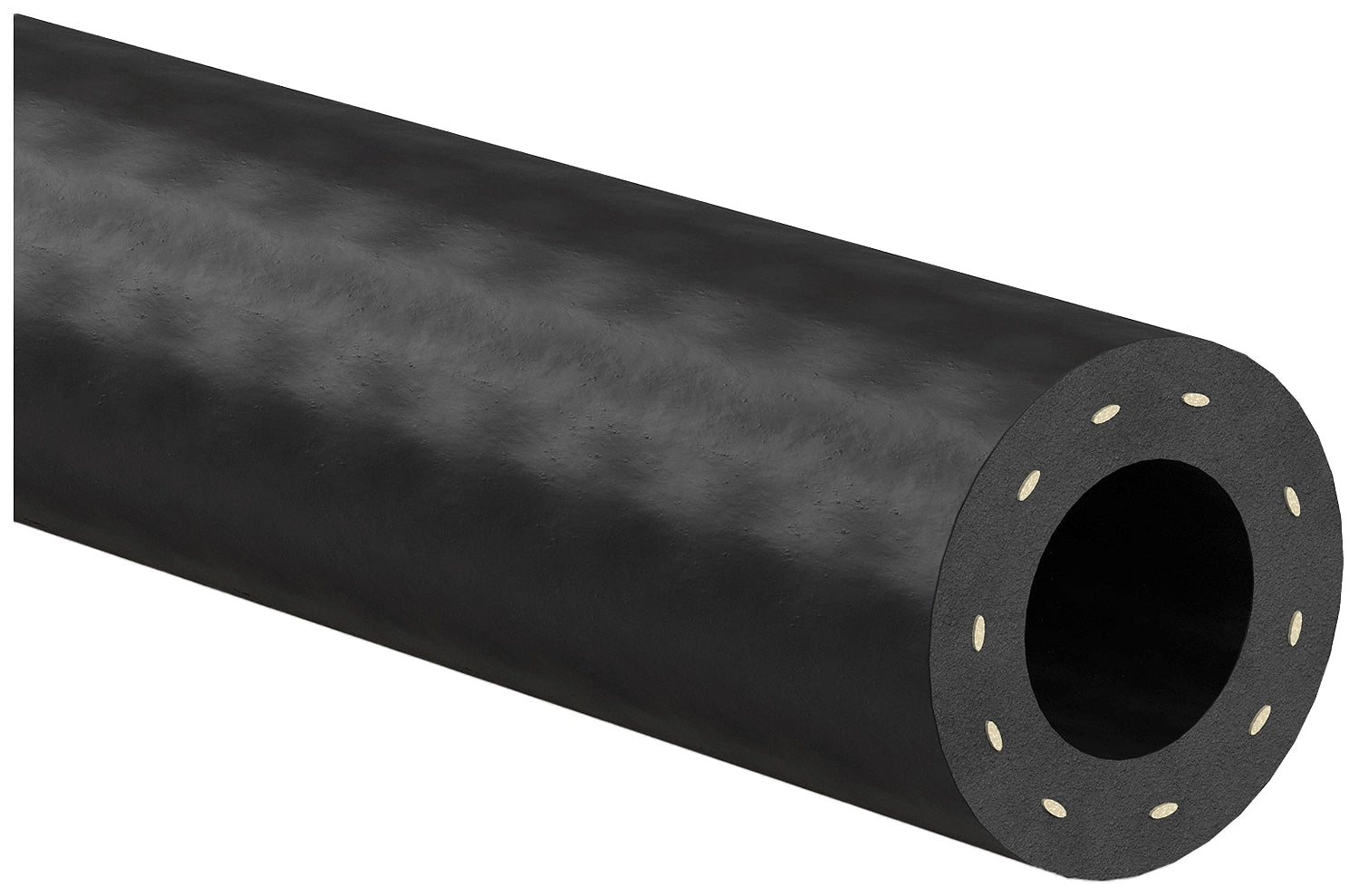

Gates Barricade MPI Fuel Injection Hose 5/16 Inch ID - 27340 - Per Metre

Gates Barricade MPI fuel injection hose, part number 27340, with a nominal 5/16-inch inside diameter. Sold per metre for fuel-line installations selected to suit the exact application.

Product details

• Brand: Gates

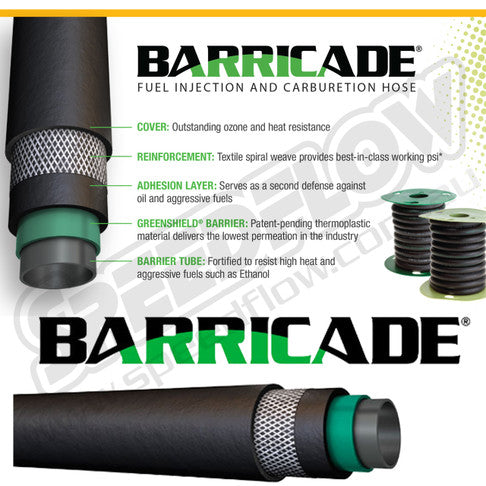

• Range: Barricade MPI fuel injection hose
• Part number: 27340
• Inside diameter: 5/16 inch, listed as 8.0mm
• Sale unit: per metre

Check application suitability

Before ordering, confirm Gates' current specifications for part 27340 against your fuel type and blend, system working pressure and operating temperature. Check permitted fuel concentrations and any continuous or intermittent temperature limits rather than assuming suitability for all fuel systems.

Confirm any restrictions on submerged use with Gates before selecting this hose for an in-tank installation. Do not assume that its MPI designation establishes suitability for direct-injection high-pressure circuits.

Connections and installation

Match the hose to fittings and retention methods specified for the hose and intended system pressure. Nominal diameter or an AN size alone does not establish compatibility with reusable braided-hose ends or pushlock fittings.

Follow the hose and fitting manufacturers' installation instructions. Plan routing and length to allow for movement and bend requirements, avoiding kinks, abrasion and contact with hot or moving components.
