920-12-BLK -12 male to -12 o-ring port

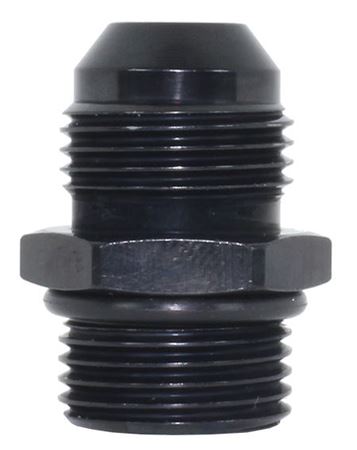

Speedflow 920-12-BLK | -12 AN Male to -12 O-Ring Port Adapter — Black Anodised

Connect large-bore -12 AN female hose ends directly to -12 O-ring boss (ORB) ports with the Speedflow 920-12-BLK — a precision-machined AN-to-ORB adapter in black hard anodised aluminium. The -12 AN size is one of the largest commonly used AN sizes in performance automotive plumbing, found on high-volume dry-sump oil systems, large-capacity fuel delivery circuits, transmission coolers, and surge tank connections. This adapter bridges the gap between -12 AN flare hose ends and -12 ORB-ported components cleanly and without compromise.

Why Choose the Speedflow 920-12-BLK?

• Precision CNC machined aluminium — accurate -12 AN male flare and -12 ORB male threads with O-ring sealing face for a reliable, leak-free connection
• Black hard anodised finish — corrosion, heat, and fluid resistant for long-term reliability in demanding engine bay environments
• -12 AN male flare to -12 ORB male — connects standard -12 AN female hose ends to -12 O-ring boss ports on pumps, coolers, and manifolds
• O-ring boss (ORB) sealing — O-ring face seal provides a superior, vibration-resistant seal ideal for high-flow and high-pressure applications
• Large-bore -12 AN sizing — maximum flow capacity for dry-sump oil systems, high-volume fuel delivery, and large transmission cooler circuits
• Lightweight construction — negligible weight impact despite the large bore size

Ideal Applications

Dry-sump oil system connections to ORB-ported pumps and tanks, high-volume fuel delivery circuit connections, transmission and gearbox cooler ORB port plumbing, surge tank connections, and any application requiring a -12 AN male to -12 ORB port adapter.

Specifications

• Part Number: SF920-12-BLK
• AN End: -12 AN Male Flare
• ORB End: -12 O-Ring Boss (ORB) Male
• Finish: Black Hard Anodised Aluminium
• Type: AN to ORB Adapter

Stock held locally in Perth, WA — fast dispatch Australia-wide.
