833-16-BLK -16 Flare bulkhead 90 degree

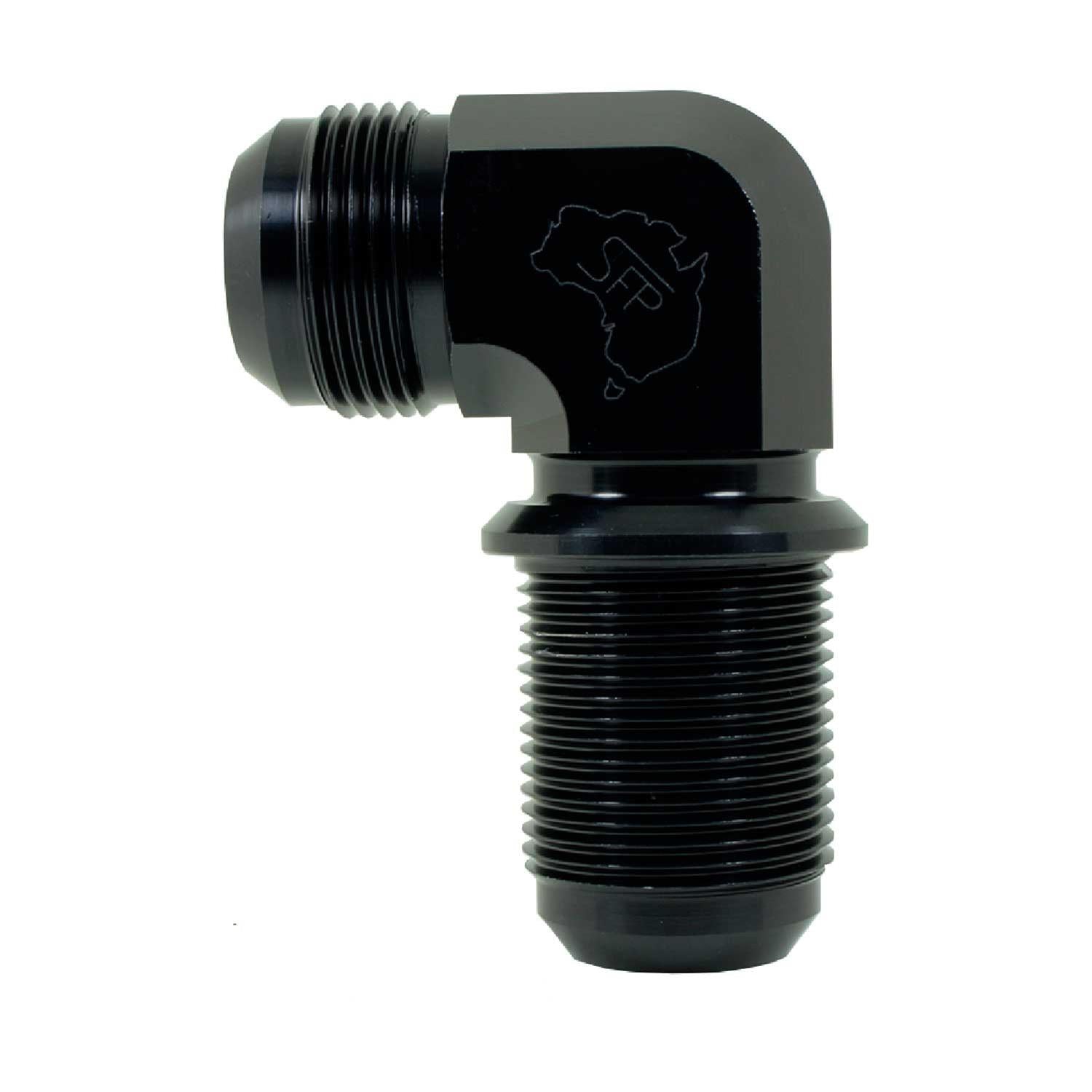

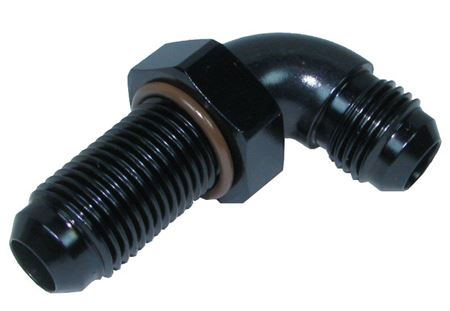

Speedflow 833 Series – AN-16 Flare Bulkhead 90° Fitting

The Speedflow 833-16-BLK is an AN-16 Flare Bulkhead 90° fitting, combining a bulkhead mount with a 90° flare exit – ideal for tight firewall and panel installations where a straight bulkhead won’t clear surrounding components.

Key Features

• Material: 6061-T6 billet aluminium – lightweight, strong, and corrosion resistant
• Finish: Hard anodised black for durability and heat resistance
• Configuration: Flare bulkhead with 90° exit – mounts through panels with a right-angle hose routing
• Size: AN-16 (part of the 833 Series bulkhead fitting range)

Australian Made

Speedflow fittings are manufactured at their facility in Taree, NSW – a trusted Australian producer of performance AN fittings and hardware.

Fitment

Suited to firewall pass-throughs, fuel cell installations, and custom panel routing where a 90° exit angle is required. Compatible with standard AN-16 hose ends. Always verify thread and panel thickness compatibility before installation.
