Proflow EFI Fuel Pressure Regulator 30-70 PSI Billet Aluminium -6AN Boost Reference PFEFS13130

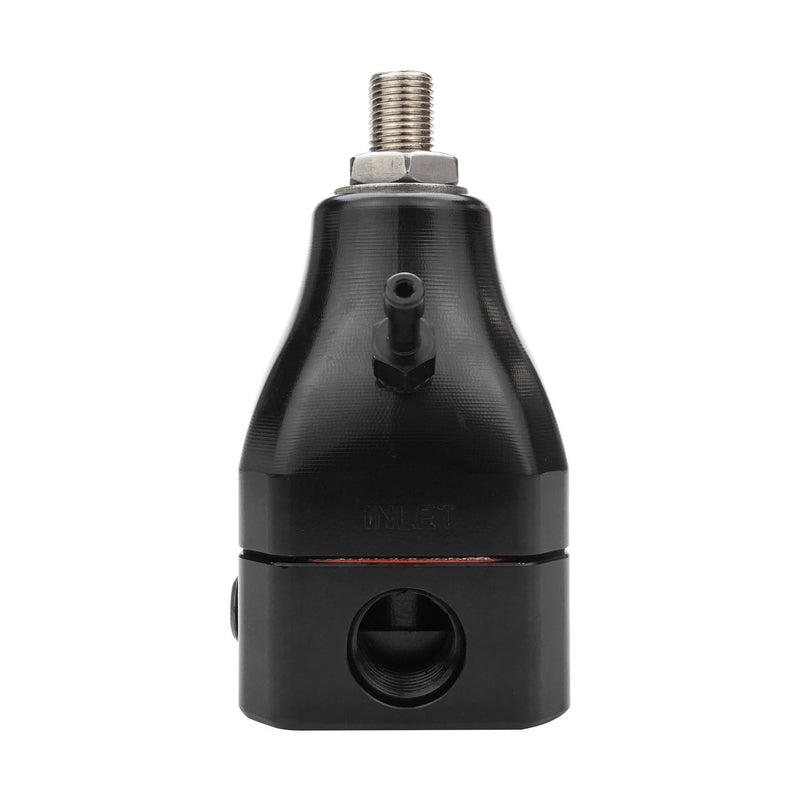

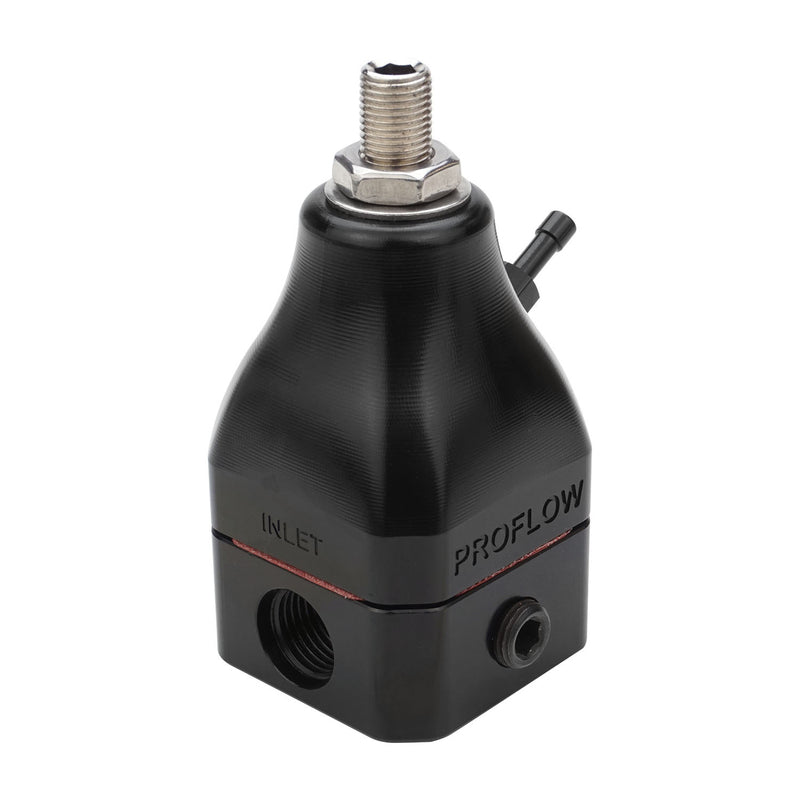

Proflow Pro Compact EFI Fuel Pressure Regulator - 30-70 PSI

Take complete control of your EFI fuel system with Proflow's precision-engineered billet aluminium fuel pressure regulator. Designed for street and track applications, this compact regulator delivers adjustable pressure from 30-70 PSI with 1:1 boost compensation, making it the perfect solution for naturally aspirated, turbocharged, and supercharged builds.

Key Features:

• Wide Pressure Range: Fully adjustable from 30-70 PSI to suit various fuel pump and injector combinations
• 1:1 Boost Reference: Rising rate boost/vacuum port compensates fuel pressure on a 1:1 ratio for forced induction applications
• Premium Billet Construction: CNC-machined from aircraft-grade aluminium with stainless steel internals for durability and corrosion resistance
• E85 & Alcohol Compatible: Stainless internals handle aggressive fuels including E85, methanol, and race gas
• Triple -6AN Ports: Two inlet ports and one return port with -6AN fittings for clean, leak-free plumbing
• 1/8" NPT Gauge Port: Integrated port for fuel pressure gauge installation and monitoring
• Compact Design: Space-saving footprint fits tight engine bays without sacrificing performance

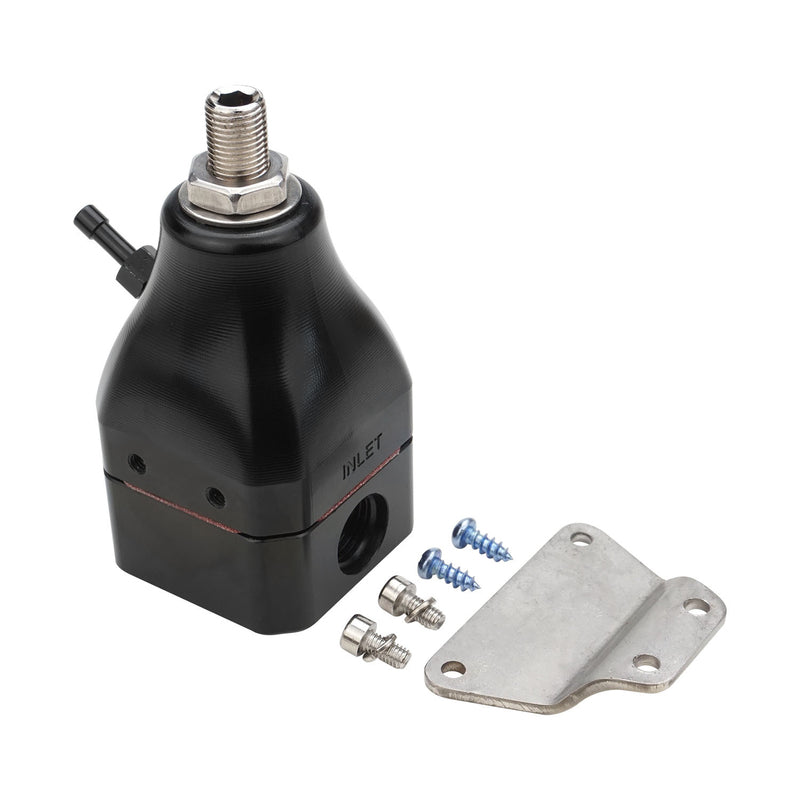

• Includes Mounting Bracket: Adjustable bracket for secure installation in any orientation

Applications:

Perfect for EFI conversions, turbocharged engines, supercharged applications, high-performance street cars, drag racing, circuit racing, LS swaps, Holden V8 builds, and any fuel-injected engine requiring precise fuel pressure control. Ideal for use with aftermarket ECUs, standalone fuel systems, and upgraded fuel pumps.

Specifications:

• Pressure Range: 30-70 PSI (adjustable)
• Boost Reference: 1:1 rising rate
• Inlet Ports: 2x -6AN
• Return Port: 1x -6AN
• Gauge Port: 1/8" NPT
• Material: Billet aluminium body with stainless steel internals
• Fuel Compatibility: Petrol, E85, methanol, alcohol-based fuels
• Includes: Mounting bracket
• Weight: 12.2 oz (346g)
• Barcode: 30193000
• SKU: PFEFS13130

Why Choose Proflow Regulators? Proflow's bypass-style fuel pressure regulators combine precision engineering with race-proven reliability. The stainless steel internals ensure consistent performance with any fuel type, while the compact design and included bracket make installation simple in any application.

Boost Reference Explained: The 1:1 boost reference port allows the regulator to increase fuel pressure in direct proportion to boost pressure, maintaining proper fuel pressure differential across your injectors for optimal performance and safe air-fuel ratios under boost.

Installation Benefits: Universal -6AN fittings work with braided hose or push-lock systems, adjustable bracket allows flexible mounting options, 1/8" NPT gauge port for easy monitoring, compact size fits tight spaces, suitable for street or race applications.

Perth Stock Available: Order by 2PM AWST for same-day pickup preparation at our Wangara warehouse, or choose FREE click and collect at your convenience.
