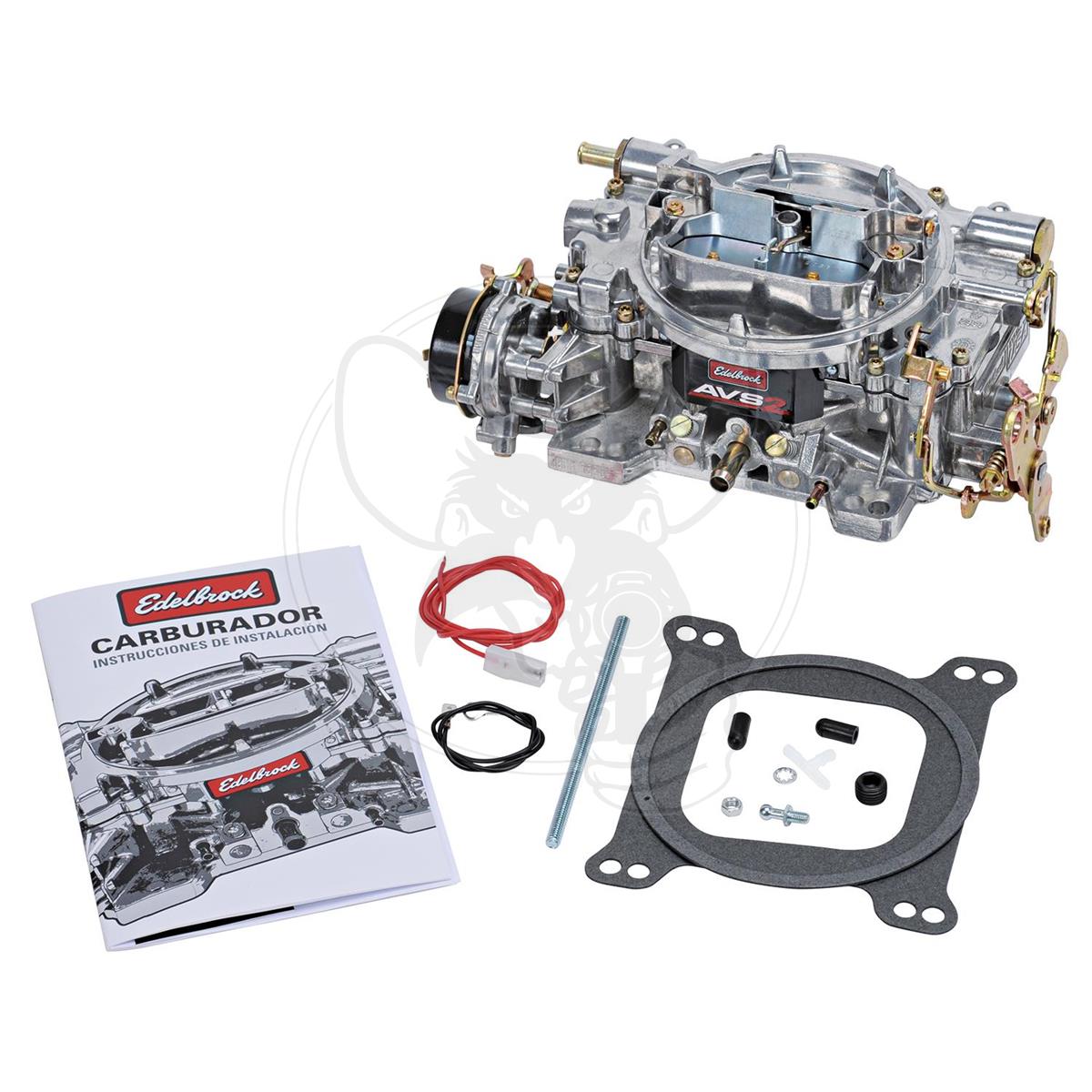

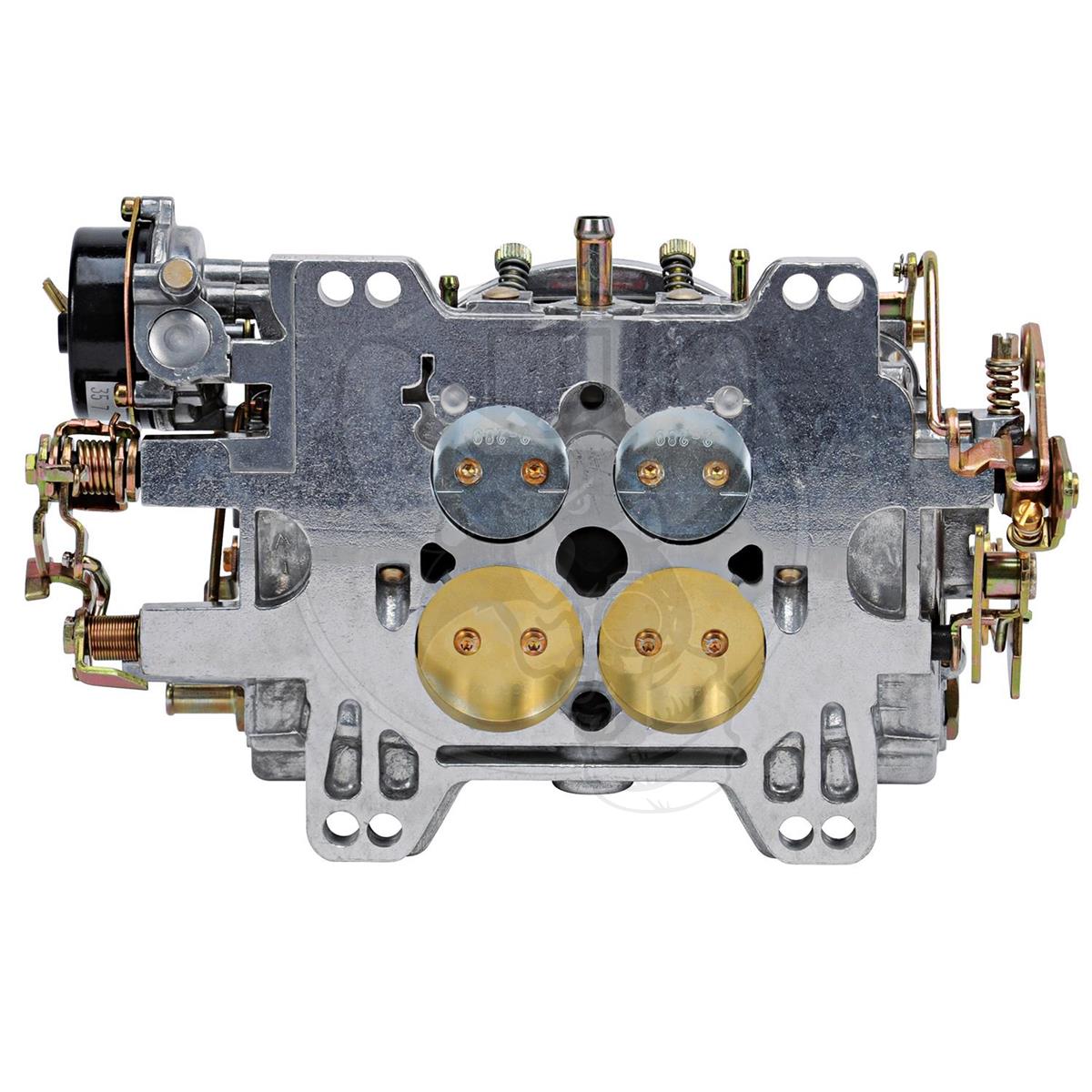

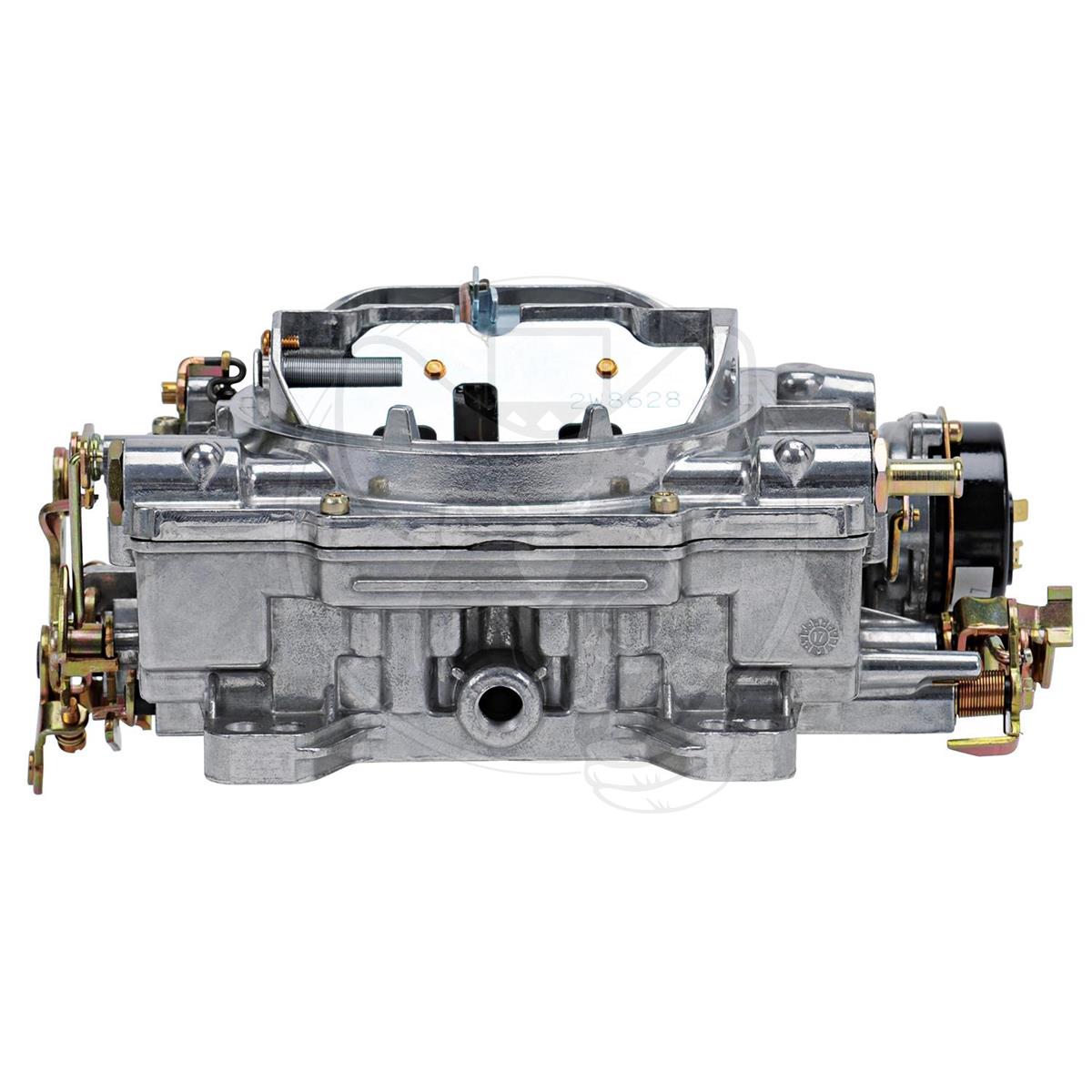

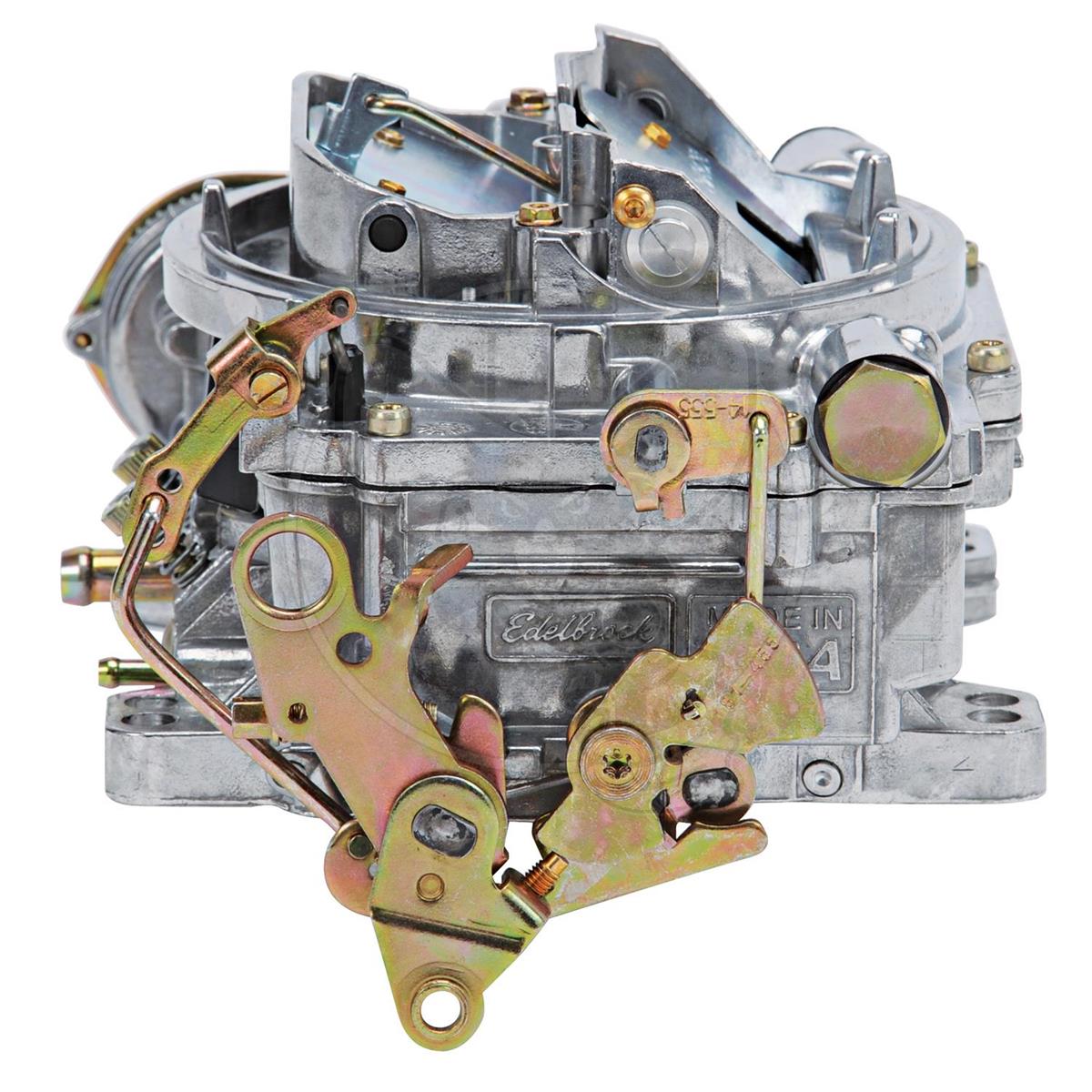

ED1906 Edelbrock carburetor 650 CFM AVS2 series electric choke
ED1906 Edelbrock carburetor 650 CFM AVS2 series electric choke
650 CFM AVS2 Series Carburettor

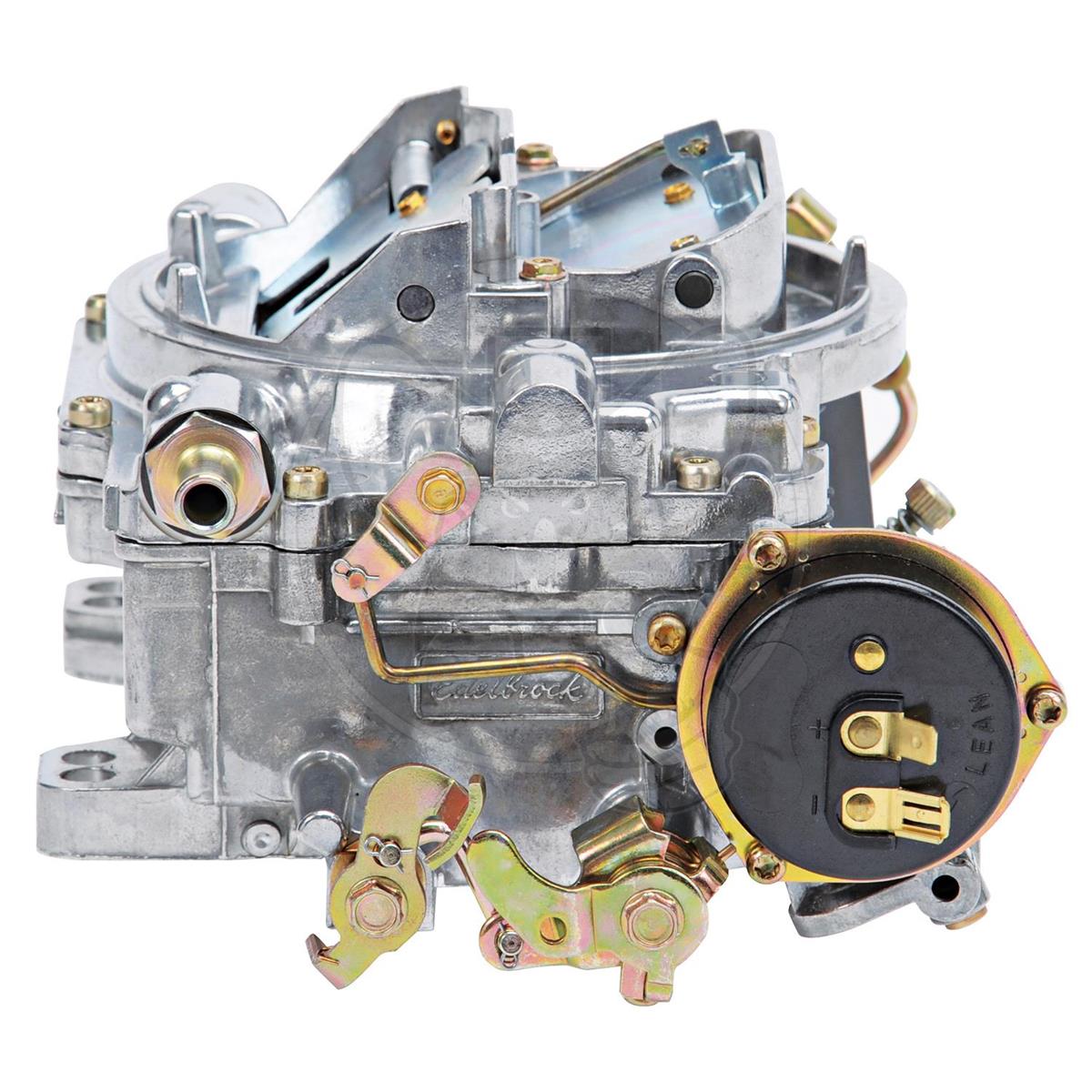

Electric choke, square flange, non-EGR
The AVS2 Series is the next generation in Edelbrock carburetors. The AVS2 features annular flow primary boosters with a new calibration for improved off idle and cruising performance. The annular flow booster design delivers improved fuel atomization to eliminate flat spots that may be encountered when the carburetor transitions from idle to full throttle. Each annular booster features eight, equally spaced orifices to improve fuel metering from idle to the main. The improved flow metering makes this carburetor ideal for use with a wide variety of small-block and big-block engines with either dual- or single-plane intake manifolds. The AVS2 includes both timed and full vacuum ports for ignition advance.
650 CFM THE ULTIMATE PERFORMANCE CARBURETOR
Designed and calibrated for optimum street performance in small-block and some big-block engines. Match with a variety of manifolds that include Edelbrock Performer, Performer EPS, RPM Air-Gap, Performer RPM, Torker II or other brands of similar design. Includes: Metering Jets - Primary .101, Secondary .098; Metering Rods - .070 x .037; Step-Up Spring - Orange (5" Hg).
