Steel Radiused Weld-On Mounting Tab, 1/4" Hole, 1-1/4" Tube, 1/8" Thick, 15/16" Top Edge to Centre - Each - TABAA112A

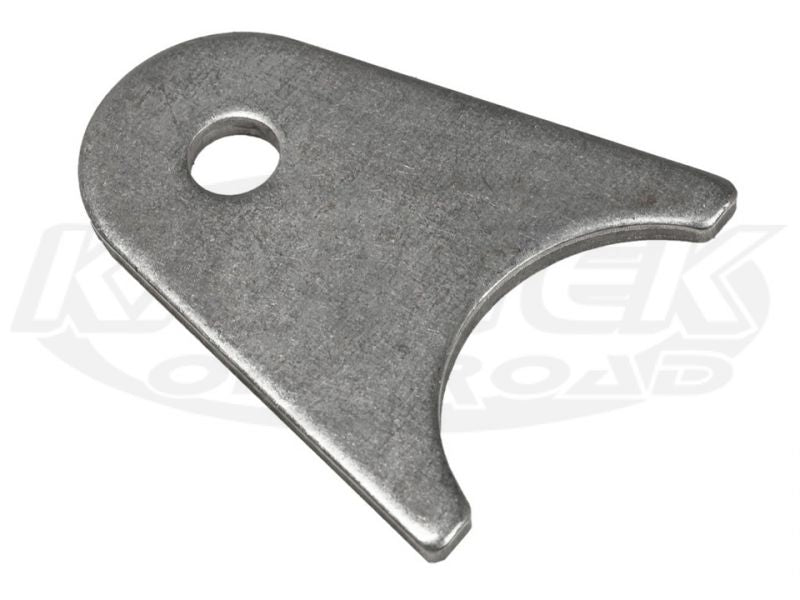

Steel Radiused Weld-On Mounting Tab – 1/4" Hole, 1-1/4" Tube, 1/8" Thick

A precision steel radiused mounting tab designed to weld directly onto 1-1/4" round tubing for a clean, strong attachment point. The radius notch ensures a tight fit against the tube surface for maximum weld contact and strength. Ideal for chassis, roll cage, and suspension fabrication where a reliable bolt-on mounting point is needed.

Fitment Notes

The radius notch is sized to fit 1-1/4" tubing without modification. Trimming the notch allows the tab to accommodate larger tubing diameters if required.

Key Features

• Steel construction for strength and weldability
• Radiused notch for a tight, full-contact fit on 1-1/4" tubing
• 1/4" hole for standard bolt-through applications
• 1/8" thickness for a solid, lightweight mounting point
• 15/16" top edge to centre measurement for precise positioning
• Sold individually

Applications

• Roll cage and chassis mounting points
• Suspension and control arm tabs
• Bracket and accessory mounts
• Off-road, rally, drag, and circuit builds

Specifications
