Sweet Mfg SWT1010 Steering U-Joint | 3/4-48 Spline Both Ends

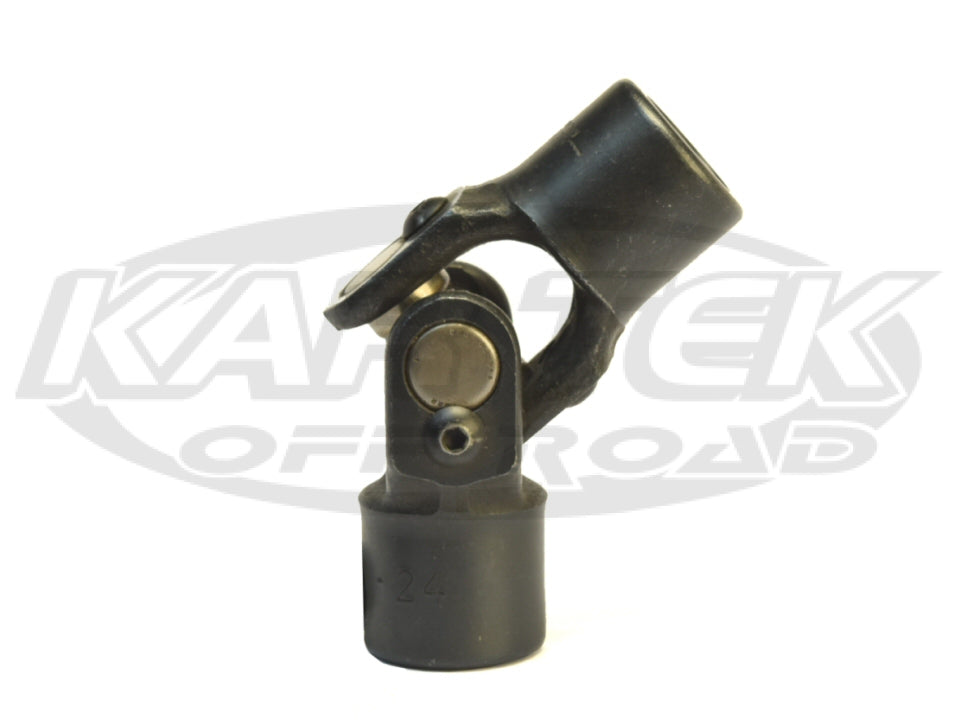

Sweet Mfg SWT1010 Steering Universal Joint

Connect steering components with the Sweet Mfg SWT1010 universal joint, featuring matching 3/4-48 spline connections at both ends. It is listed for steering-shaft or rack-and-pinion applications where both mating components use 3/4-48 splines.

Fitment and specifications

• Part number: SWT1010
• Spline configuration: 3/4-inch, 48-spline at both ends
• Retention: set screw at each end
• Maximum operating angle: 30 degrees
• Material: steel
• Finish: black oxide

Before ordering

Confirm that both steering-shaft connections are 3/4-48 spline before ordering. Check the spline count, shaft connection, available operating angle, and clearance in your steering system. Do not rely on vehicle model alone.

Suitable for the listed steering-shaft or rack-and-pinion connection when the 3/4-48 spline specifications match.
