SWT0610 Steering U-Joint | 3/4 Smooth Bore to 3/4-48 Spline

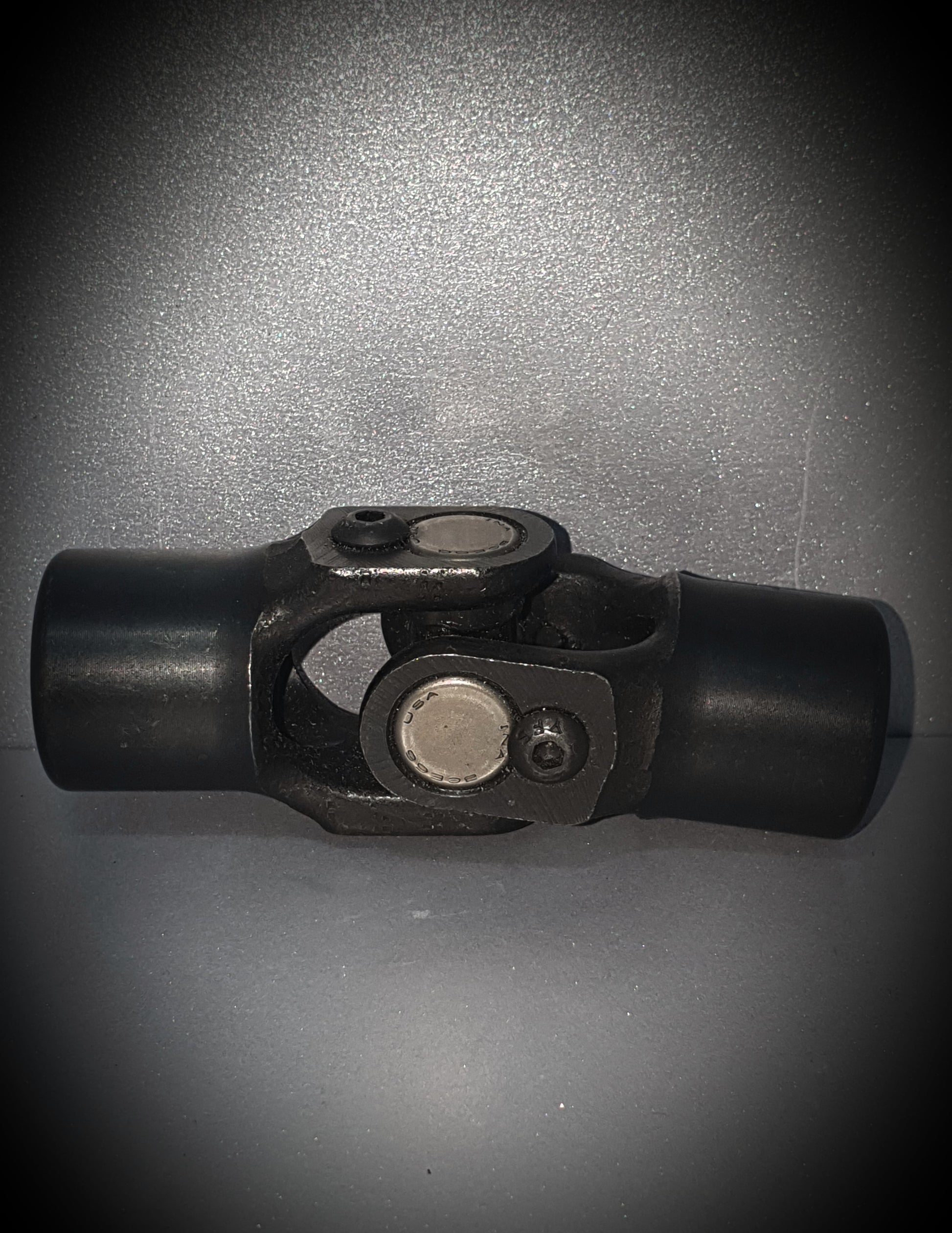

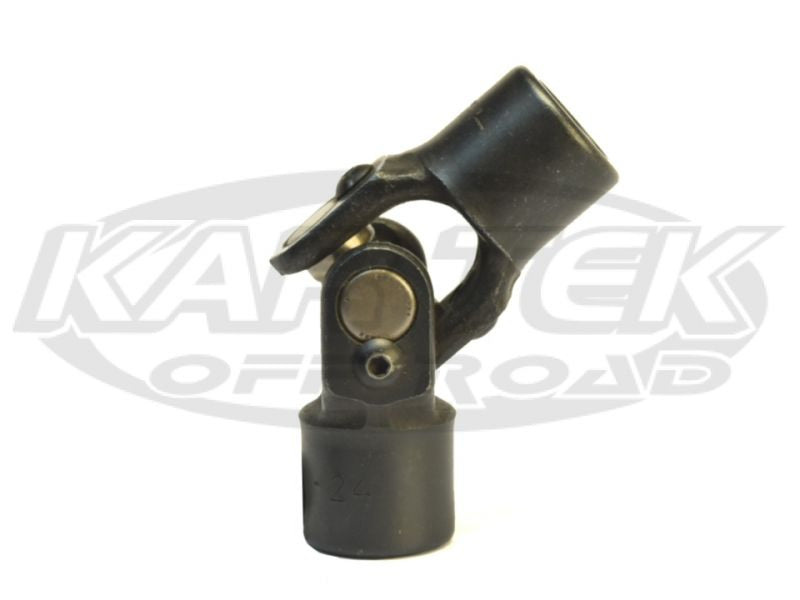

SWT0610 Steering Universal Joint

Connect a 3/4-inch smooth-bore steering shaft to a 3/4-48 spline with the SWT0610 steel universal joint. It is suited to custom steering-shaft and rack-and-pinion applications where the listed connection sizes and up to 30 degrees of operating angle are required.

Fitment and specifications

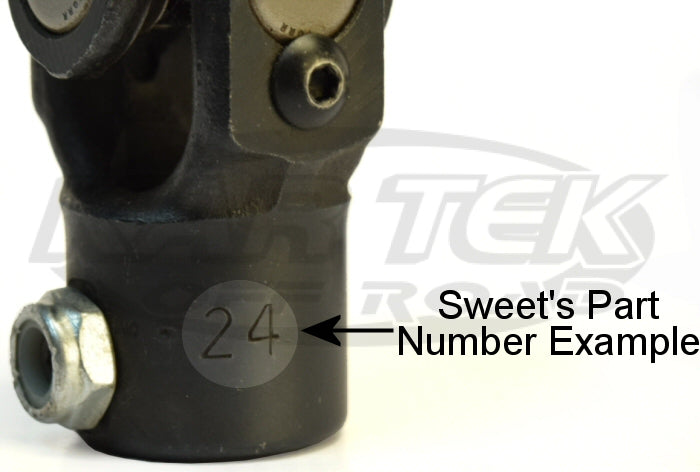

• Part number: SWT-0610
• Weld-on end: 3/4-inch smooth bore
• Splined end: 3/4-inch, 48-spline with set screw
• Maximum operating angle: 30 degrees
• Material: steel
• Finish: black oxide
• Weight: 293g

Before ordering

Confirm the steering-shaft diameter, weld-on tube connection, spline count, available operating angle, and steering-system clearance before ordering. Do not rely on vehicle model alone.

Suitable for the listed steering-shaft or rack-and-pinion connection when the 3/4-inch smooth-bore and 3/4-48 spline specifications match.
