SWT0612 Steering Universal Joint 3/4 Smooth To 3/4-36 Spline Steering Shaft Or Rack And Pinion

SWT0612 Steering Universal Joint

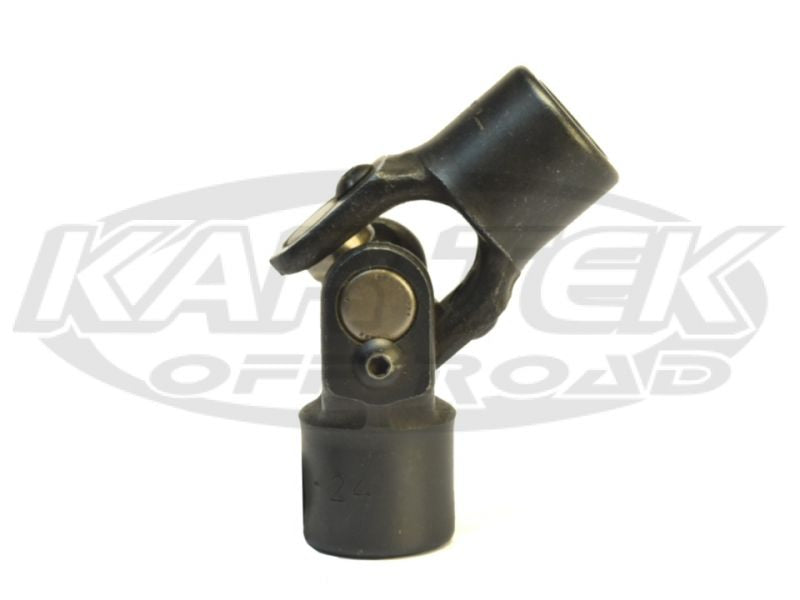

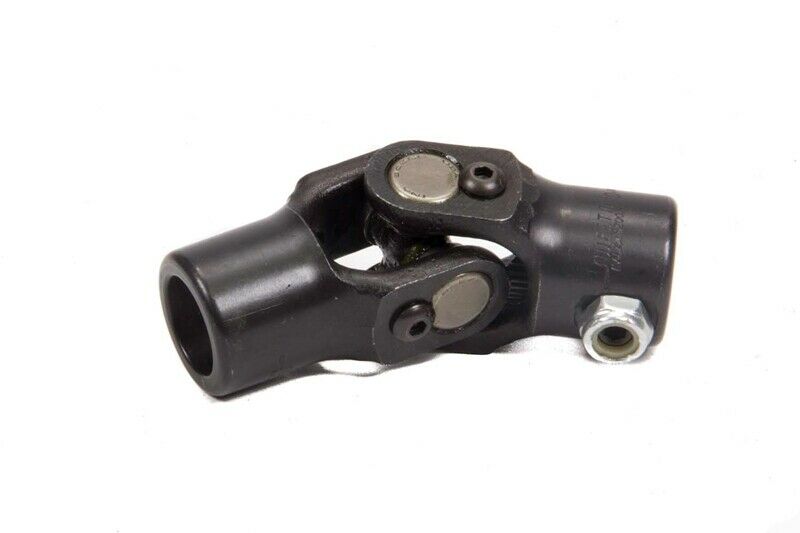

Connect a steering shaft or rack-and-pinion component with the SWT0612 universal joint. This combination joint has a 3/4-inch smooth-bore weld-on end and a 3/4-inch 36-spline end with a set screw, making the connection details clear before fabrication or installation.

Fitment and specifications

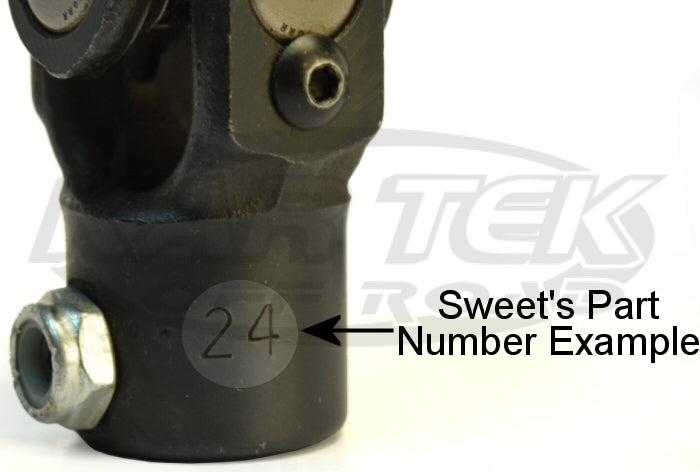

• Part number: SWT-0612
• End #06: 3/4-inch smooth-bore weld-on
• End #12: 3/4-inch, 36-spline with set screw
• Maximum operating angle: 30 degrees
• Material: steel
• Finish: black oxide
• Weight: 314g

Before ordering

Confirm the required weld-on tube connection, 3/4-36 spline count, available operating angle, and steering-system clearance before ordering. Do not rely on vehicle model alone.

Suitable for the listed steering-shaft or rack-and-pinion connection when the smooth-bore weld-on and 3/4-36 spline specifications match.
