SWT0611 Steering Universal Joint 3/4 Smooth To 13/16-36 Spline For Pre 1978 Big GM Steering Gear Box

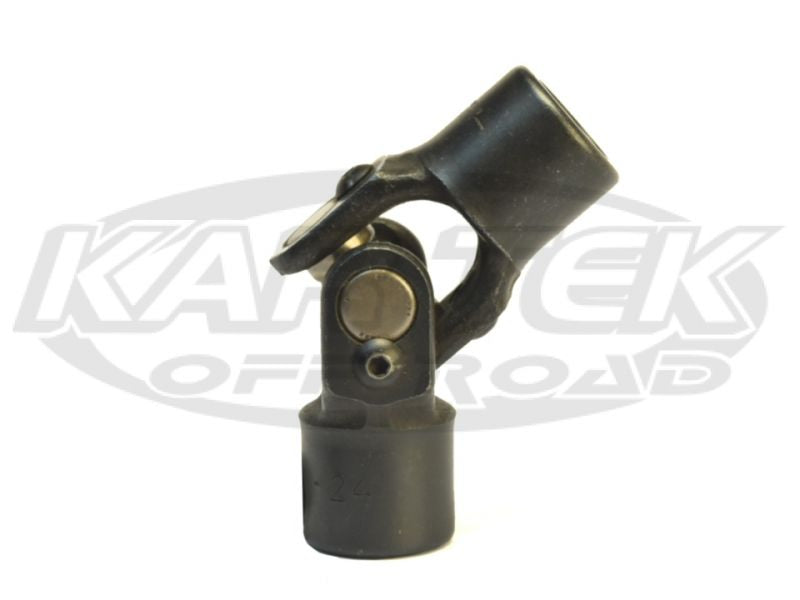

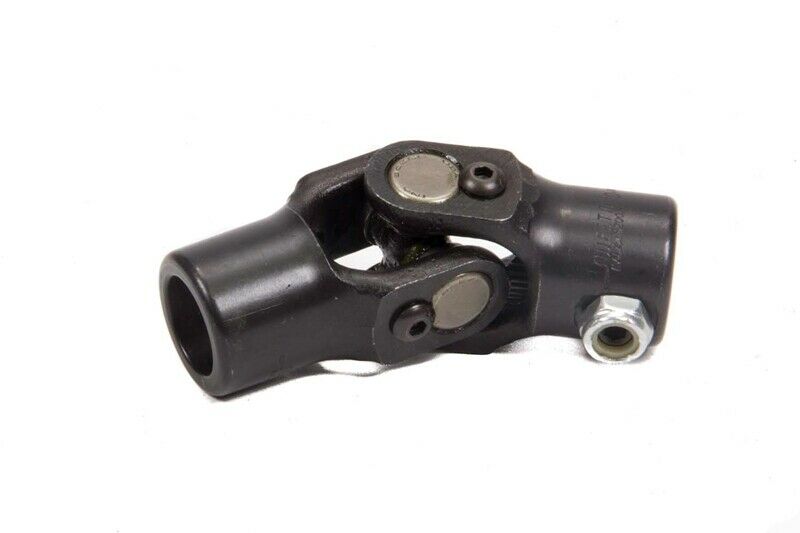

SWT0611 Steering Universal Joint

Connect a steering shaft to the listed pre-1978 big GM steering gear box with the SWT0611 universal joint. This combination joint has a 3/4-inch smooth-bore weld-on end and a 13/16-inch 36-spline end with a set screw.

Fitment and specifications

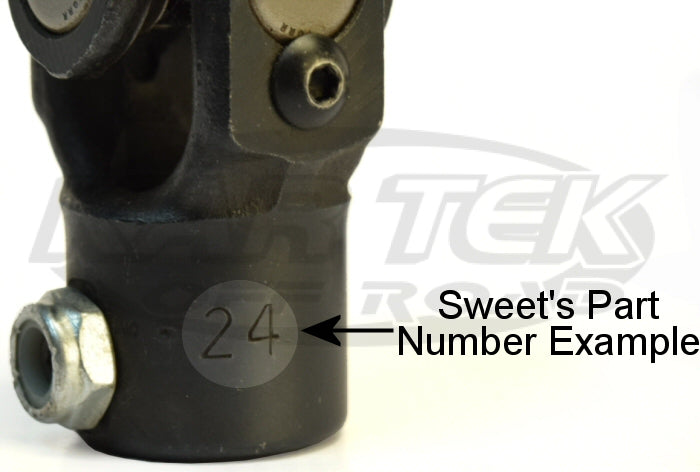

• Part number: SWT-0611
• Application: pre-1978 big GM steering gear box, when the listed connections match
• End #06: 3/4-inch smooth-bore weld-on
• End #11: 13/16-inch, 36-spline with set screw
• Maximum operating angle: 30 degrees
• Material: steel
• Finish: black oxide
• Weight: 305g

Before ordering

Confirm the steering gear-box application, weld-on tube connection, 13/16-36 spline count, available operating angle, and steering-system clearance before ordering. Do not rely on vehicle year alone.

Suitable for the listed pre-1978 big GM steering gear-box connection when the smooth-bore weld-on and 13/16-36 spline specifications match.
