Sweet Mfg SWT1015 Steering U-Joint | 3/4-48 to 3/4-30 Spline

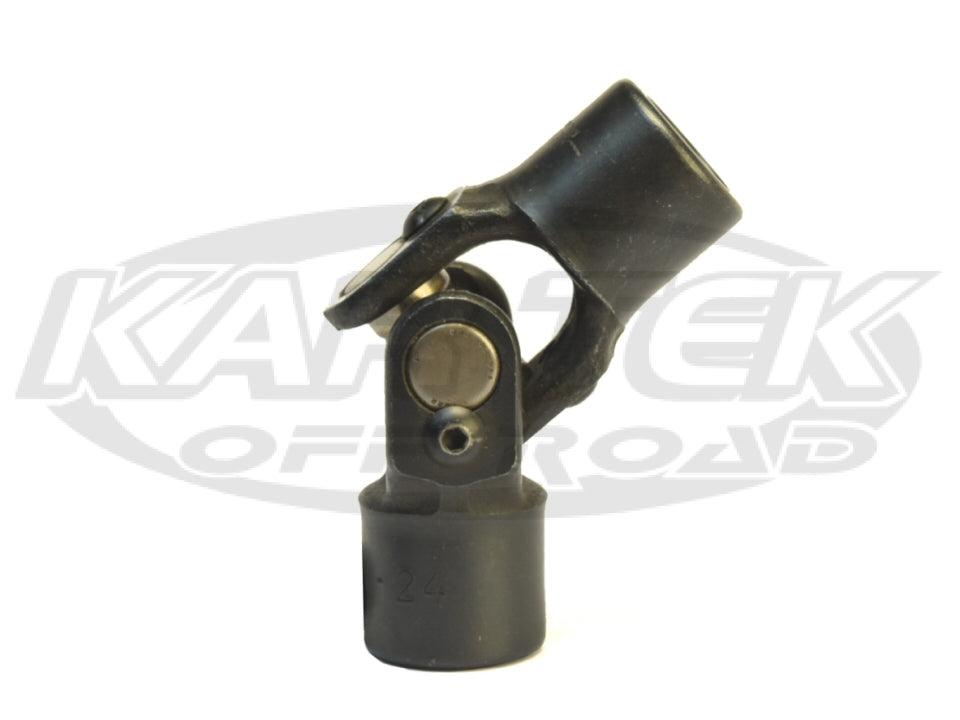

Sweet Mfg SWT1015 Steering Universal Joint

Connect steering components with the Sweet Mfg SWT1015 universal joint, featuring different spline sizes at each end. This joint is listed for steering applications from rack and pinion to a control valve or servo.

Fitment and specifications

• Part number: SWT1015
• End #10: 3/4-inch, 48-spline with set screw
• End #15: 3/4-inch, 30-spline with set screw
• Maximum operating angle: 30 degrees
• Material: steel
• Finish: black oxide

Before ordering

Confirm both spline counts and the steering-shaft connection before ordering. If the existing joint is still fitted to the vehicle, check the part numbers engraved on both sides. Sweet Mfg joint end numbers can help identify the required combination, so do not rely on vehicle model alone.

Suitable for the listed rack-and-pinion to control-valve or servo steering connection when the 3/4-48 and 3/4-30 spline specifications match.
