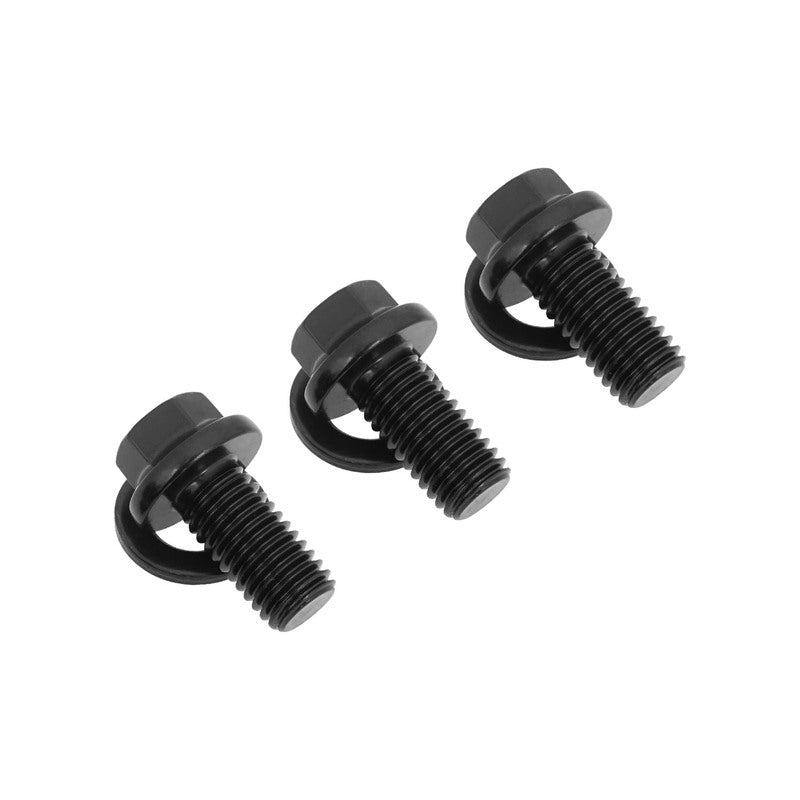

RTS/ARP LS Torque Converter Bolt & Washer Kit, M10 x 1.5, 20mm UHL, 8740 Chromoly, Set Of 3 - RTS-TC1015BOLT

The RTS/ARP RTS-TC1015BOLT torque converter bolt and washer kit is designed for compatible GM LS and late-model GM torque converters using M10 × 1.5 fasteners. Supplied as a set of three, it combines ARP bolts with large-diameter steel washers for increased contact area.

Fitment

For compatible GM torque converters requiring M10 × 1.5 threads and a 20 mm under-head bolt length. Confirm thread size, required bolt length, thread engagement and clearance for your converter and flexplate combination before installation. Thread size alone does not establish fitment.

Specifications

• Part number: RTS-TC1015BOLT.
• Brand: RTS/ARP.
• Quantity: Set of three bolts with washers.
• Thread: M10 × 1.5.
• Bolt length: 20 mm under-head length (UHL).
• Bolt material: 8740 chromoly, as listed in the existing product title.
• Bolt tensile strength: Listed as 180,000 in the existing product data; units are not specified.
• Washers: Steel with a black oxide finish.
• Washer dimensions: 10 mm inside diameter × 19 mm outside diameter × 2.25 mm thick.

Installation instructions and torque specification

View or download the RTS torque converter bolt installation instructions (PDF)

The supplied instruction sheet lists 50 ft-lbs for M10 × 1.5 fasteners when using ARP lube. The previous product listing stated 54 ft-lbs without a lubricant condition. These specifications conflict; confirm the correct specification for this kit and lubricant with RTS/ARP before tightening. Do not apply the lubricated specification to dry threads.
