RTS/ARP 7/16 UNF Torque Converter Bolt With Nut & Washer Kit, 1.250" UHL, 8740 Chromoly, Set Of 3 - RTS-TC716BOLTGM2

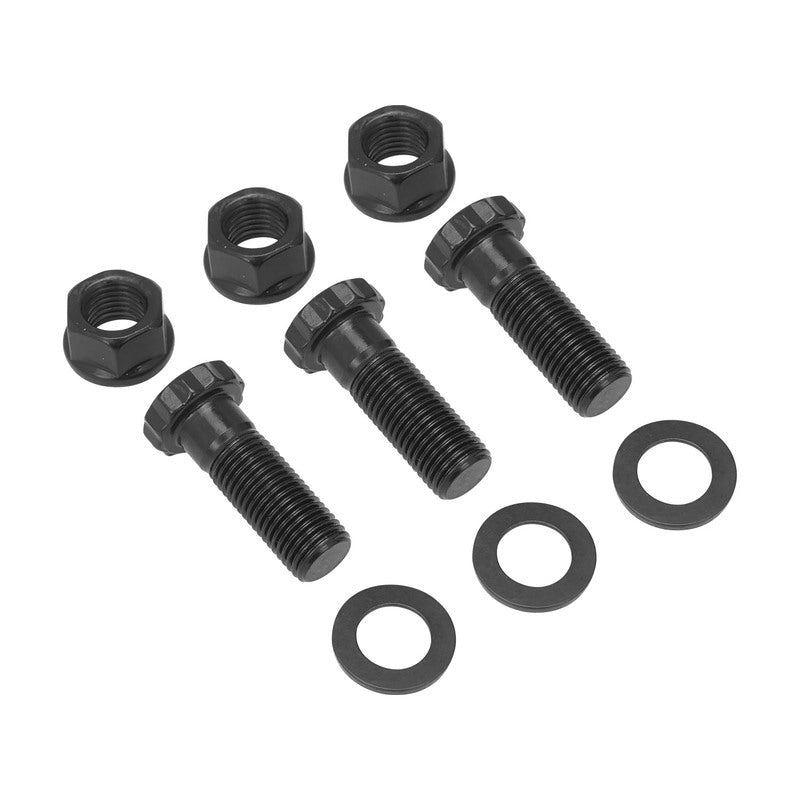

The RTS/ARP RTS-TC716BOLTGM2 torque converter bolt, nut and washer kit is designed for compatible aftermarket torque converters with thicker-than-standard mounting tabs. Supplied as a set of three, it combines 7/16-20 UNF ARP bolts with a 1.250-inch under-head length, matching nuts and steel washers.

Fitment

For compatible aftermarket torque converter and flexplate combinations requiring longer 7/16-20 UNF through-bolts with nuts and washers. The 1.250-inch under-head length distinguishes this kit from the shorter 0.725-inch RTS-TC716BOLTGM1 kit.

Confirm mounting-tab thickness, bolt length, mounting-hole size, thread engagement and clearance before installation. Select the kit for your specific converter and flexplate; thread size alone does not establish fitment.

Specifications

• Part number: RTS-TC716BOLTGM2.
• Brand: RTS/ARP.
• Quantity: Set of three bolts with nuts and washers.
• Thread: 7/16-20 UNF.
• Bolt length: 1.250 inches under-head length (UHL).
• Bolt material: 8740 chromoly.
• Bolt tensile strength: Listed as 180,000; the source listing does not specify units.
• Nuts: 7/16-20 thread with a 5/8-inch hex.
• Washers: Steel with a black oxide finish.
• Washer inside diameter: 0.437 inch.
• Application: Compatible aftermarket converters with thicker-than-standard mounting tabs.

Installation instructions

View or download the RTS torque converter bolt installation instructions (PDF)

The supplied instruction sheet specifies 55 ft-lbs for 7/16-20 fasteners when using ARP lube, matching the torque value in the existing listing. Read the instructions before installation and confirm they apply to your hardware and lubricant. This is a lubricated torque specification, not a dry-thread value.
