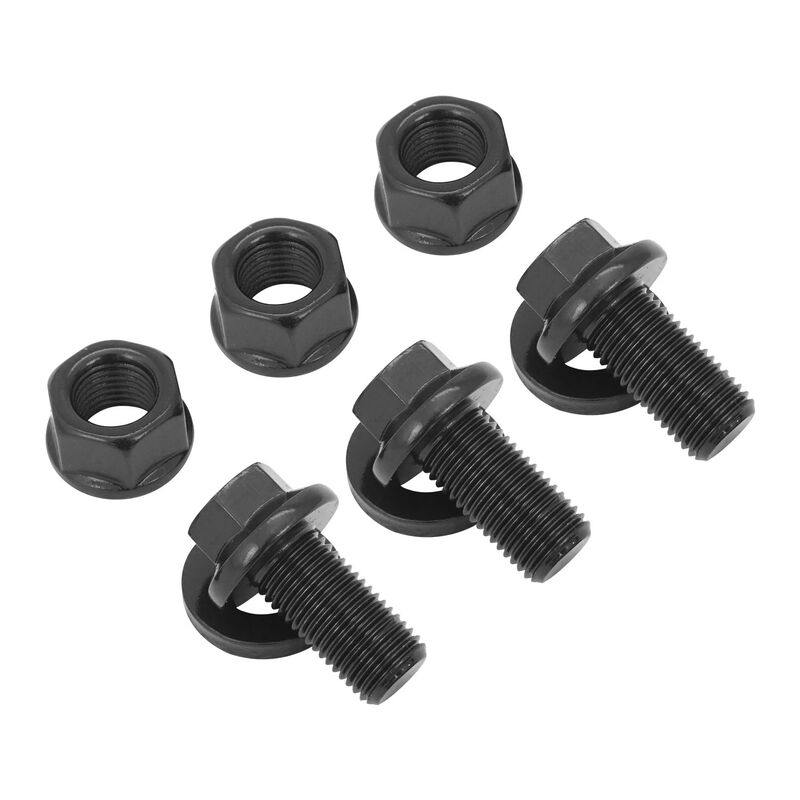

RTS/ARP 3/8UNF Torque Converter Bolt With Nut & Washer Kit, .750"UHL, 8740 Chromoly, Set Of 3 - RTS-TC38BOLTGM

The RTS/ARP RTS-TC38BOLTGM torque converter bolt, nut and washer kit suits compatible OEM-style torque converters requiring a 3/8 UNF through-bolt and nut arrangement. Supplied as a set of three, it combines ARP bolts with a 0.750-inch under-head length, matching nuts and steel washers.

Fitment

For compatible OEM-style torque converter and flexplate combinations using 3/8 UNF bolts, nuts and washers. Confirm bolt length, mounting-hole size, thread engagement and clearance for your specific combination before installation. Select the appropriate kit for your application; thread size alone does not establish fitment.

Specifications

• Part number: RTS-TC38BOLTGM.
• Brand: RTS/ARP.
• Quantity: Set of three bolts with nuts and washers.
• Thread: Listed as 3/8 UNF, with 3/8-24 nuts.
• Bolt length: 0.750 inch under-head length (UHL).
• Bolt material: 8740 chromoly.
• Bolt tensile strength: Listed as 180,000; the source listing does not specify units.
• Nuts: 3/8-24 thread with a 9/16-inch hex.
• Washers: Steel with a black oxide finish.
• Washer inside diameter: 0.375 inch.

Installation instructions and torque verification

View or download the RTS torque converter bolt installation instructions (PDF)

The previous product listing stated 45 ft-lbs. However, the supplied instruction sheet lists 45 ft-lbs with ARP lube for 3/8-16 fasteners, not the 3/8-24 UNF thread listed for this kit. The sheet does not provide a 3/8-24 torque specification. Confirm the correct torque and lubricant requirements for RTS-TC38BOLTGM directly with RTS/ARP before tightening; do not assume the 3/8-16 specification applies.
