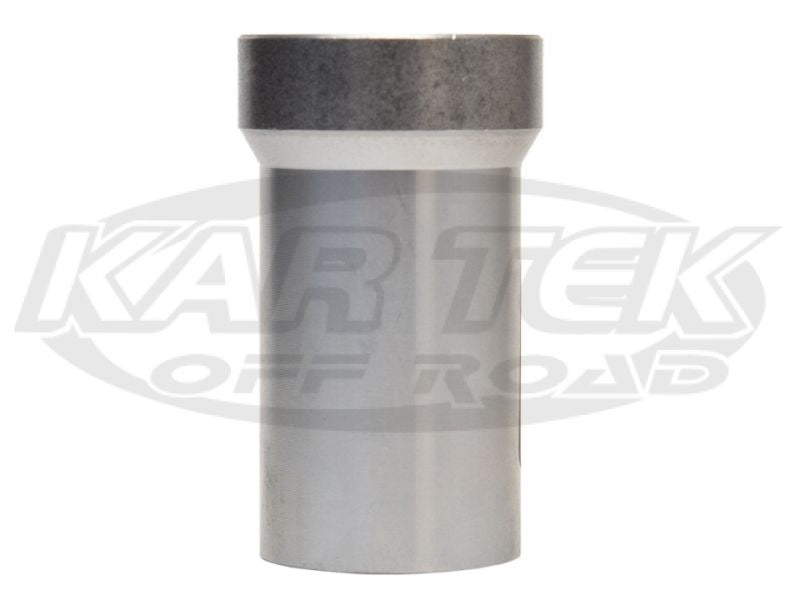

3/4"-16 LH Chromoly Step Round Bung for 1-1/2" x 0.120" Tube | KTK750TBRL1250

3/4"-16 Left Hand Thread Chromoly Step Round Bung – KTK750TBRL1250

The LH counterpart to the KTK750TBRR1250, this precision-machined chromoly step round bung is designed for 1-1/2" x 0.120" wall tubing and accepts 3/4" left hand thread heim joints. Pair it with the RH version for a fully adjustable suspension or steering link assembly.

Common Applications

• Tie rods & drag links
• Sway bar links & pan hard bars
• 3-link, 4-link & 5-link suspension
• Trailing arms, ladder bars & traction bars
• Upper & lower control arms, A-arms

Specifications

• SKU: KTK750TBRL1250
• Material: Chromoly
• Thread: 3/4"-16 Fine Thread, Left Hand (LH)
• Total Length: 2-1/8"
• Shoulder Length: 1-1/2"
• Head Length: 5/8"
• Fits Into: 1-1/2" x 0.120" Wall Tubing
• Base Diameter: 1-1/4"
• Note: Not threaded all the way through

Compatible with FK Rod Ends, Aurora Bearing Company, and NHBB New Hampshire Ball Bearing heim joints.
