Proflow Bosch Style 044 Fuel Pump Electric 380 LPH 5 Bar 1000HP External (PFEFS11380)

Proflow Bosch Style 044 Electric Fuel Pump - 380 LPH

The Proflow PFEFS11380 universal EFI external fuel pump is one of the most popular fuel pumps on today's market and a close contender to the infamous Bosch 044 style fuel pump. Capable of supporting up to 1000 HP on naturally aspirated vehicles and 800 HP on forced induction applications, it delivers an impressive and consistent fuel flow rate of 380 LPH at 40 PSI.

Key Features

• 380 LPH Flow Rate: Consistent fuel delivery at 40 PSI (16 A)
• 1000 HP Capable: Supports up to 1000 HP naturally aspirated, 800 HP forced induction
• E85 Compatible: Safe to use with exotic fuels including E85 ethanol
• 5 Bar Pressure: Reliable fuel pressure for high-performance applications
• 60mm Body Diameter: Fits most Bosch 044 style pump brackets
• In-Tank Conversion Ready: Can be converted using Proflow hanger (PFEFCA002)
• Complete Kit: Includes check valve and wiring plug kit with terminals and boots
• External Mount: Easy installation and servicing

Technical Specifications

• Flow rate: 380 LPH at 40 PSI
• Pressure: 5 bar
• Power capacity: 1000 HP (naturally aspirated), 800 HP (forced induction)
• Current draw: 16 amps at 40 PSI
• Body diameter: 60mm
• Inlet: M18 x 1.50mm
• Outlet: M12 x 1.50mm
• Fuel compatibility: Gasoline, E85, exotic fuels
• Weight: 3 oz

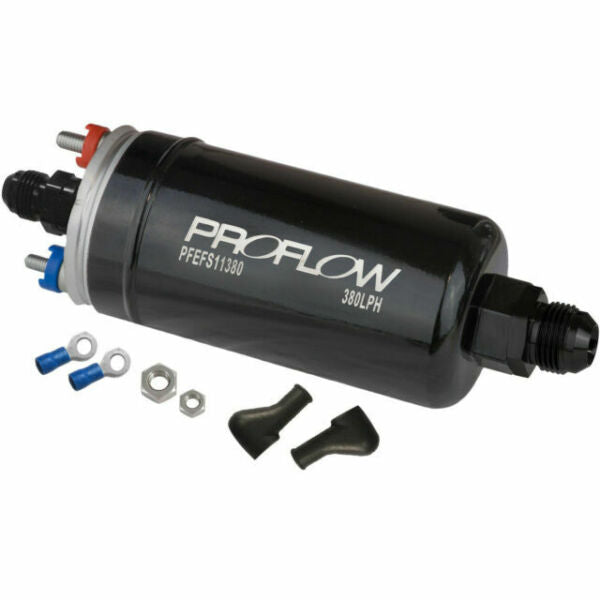

What's Included

• Fuel pump
• Check valve
• Wiring plug kit with terminals and boots

Applications

Perfect for high-performance EFI systems, turbocharged engines, supercharged applications, E85 conversions, race engines, street performance builds, and any application requiring reliable high-flow fuel delivery up to 1000 horsepower.

Installation Note: Can be mounted externally or converted for in-tank use with Proflow fuel pump hanger PFEFCA002 (sold separately). Ensure proper fuel line sizing to match pump capacity.

Perfect for: EFI conversions, LS swaps, turbo builds, supercharged engines, E85 applications, race cars, and any high-performance fuel system requiring reliable 380 LPH flow capacity.

Part number: PFEFS11380 | SKU: PFEFS11380 | Barcode: 30057000 | Australian stock ready to ship.
