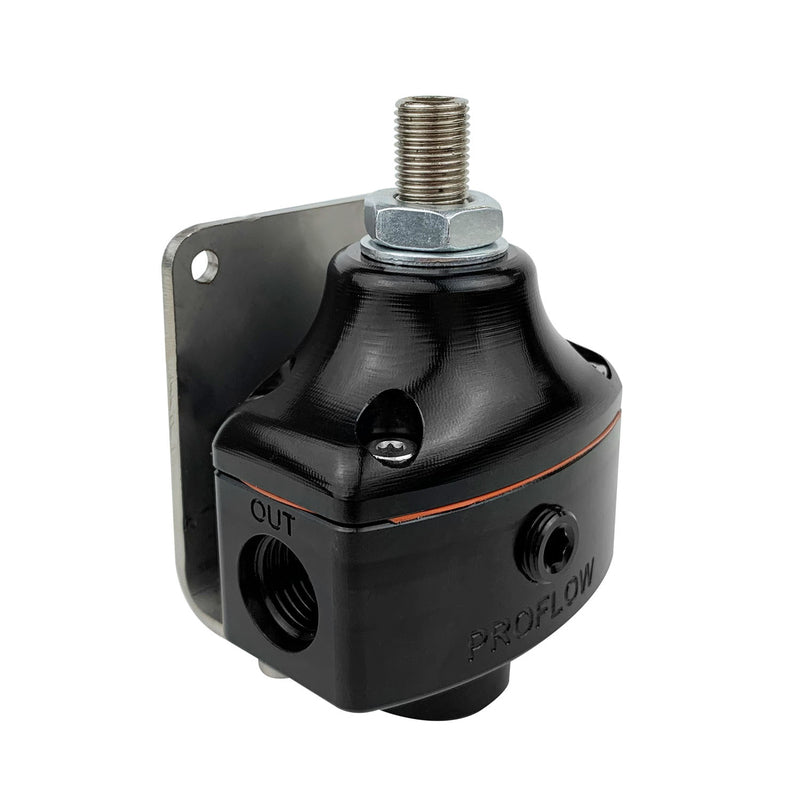

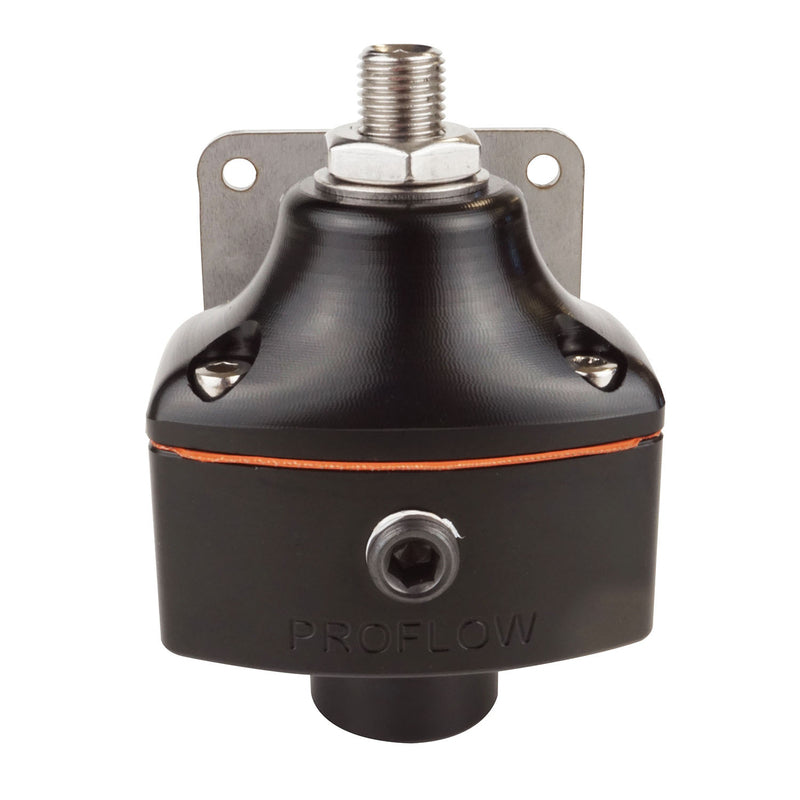

Proflow Series II Carburettor Fuel Pressure Regulator, 3-10 PSI, 2-Port - PFEFS13220

The Proflow PFEFS13220 Series II fuel pressure regulator offers an adjustable 3-10 PSI range for carburettor fuel systems and dedicated nitrous applications. Its stainless steel internals and re-seating diaphragm design help control pressure creep after the needle shuts down.

Features

• Adjustable 3-10 PSI fuel pressure range.
• 2-port design with -06AN connections.
• Stainless steel internals and a diaphragm designed to re-seat after needle shut-off.
• Billet aluminium body with a black anodised finish.
• E85 compatible.
• Supplied with a -06AN block-off plug and mounting bracket.

Specifications

• Brand: Proflow
• Series: Series II
• Part number: PFEFS13220
• Application: Carburettor fuel systems and dedicated nitrous applications
• Adjustable pressure range: 3-10 PSI
• Configuration: 2-port
• Connection size: -06AN
• Body material: Billet aluminium
• Finish: Black anodised
• Internals: Stainless steel

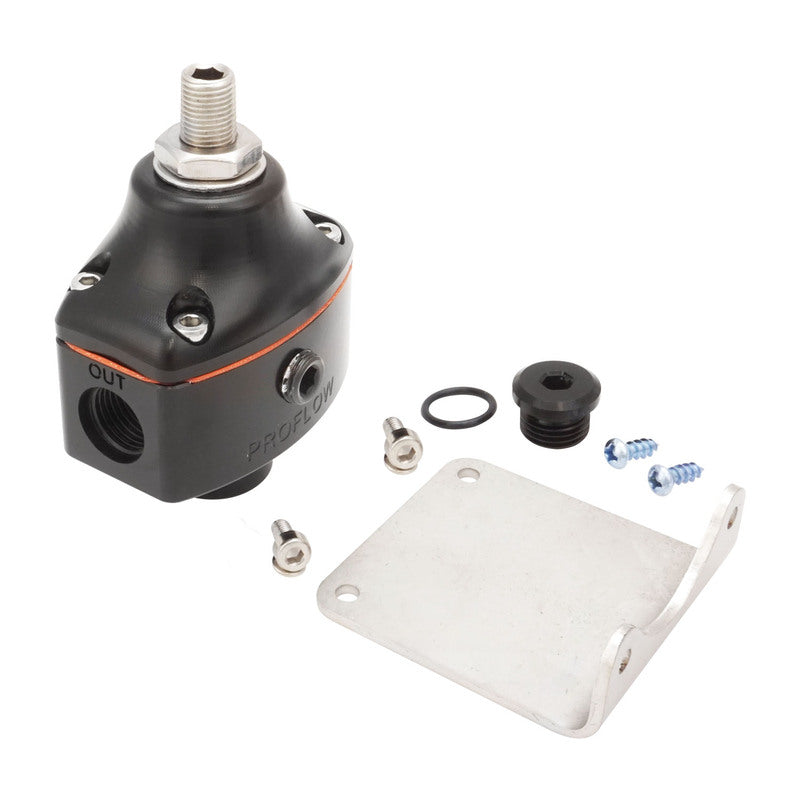

• Included: -06AN block-off plug and mounting bracket

Fitment and installation

Check your fuel system's required pressure, connection sizes and installation layout before ordering. Confirm suitability for your carburettor or dedicated nitrous system and follow the manufacturer's installation instructions.

Download Proflow PFEFS13220 installation instructions (PDF)
