PMERS2500P2L PME Driver Side 2-1/2" Hollow Full Floater Hub Rear End Spindle Snout 2-1/2" Spindle Length

PMERS2500P2L PME Driver Side 2-1/2" Hollow Full Floater Hub Rear End Spindle Snout 2-1/2" Spindle Length

$742.00 AUD
$742.00 AUD
Sale Currently Unavailable
Taxes included. Shipping calculated at checkout.
We call this a Pro 2 snout. Left hand thread weld on spindle. 2.365" major diameter on the threads. The backside isn't finished (DIMENSION - D) This allows you to turn down the OD (currently 3-1/2") on a lathe in order to fit the snout into whatever diameter axle tubes are on your rear end.

Works With:
  • 1.5" x 35 spline axles
  • 1.7" x 40 spline axles
  • 1.9" x 45 spline axles

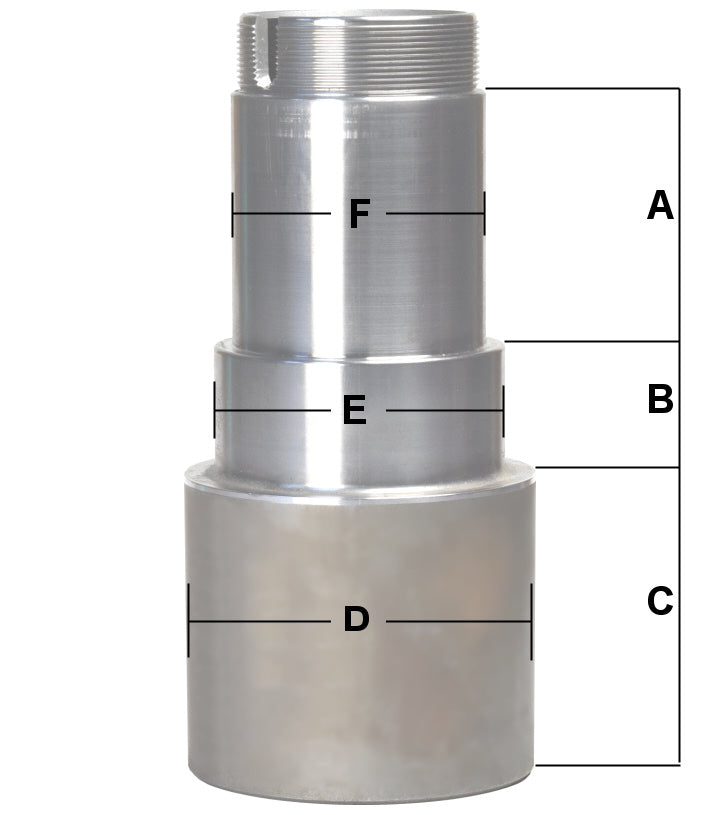

    • Dimensions:
  • Completely Hollow
  • A Spindle length 2-1/2"
  • B Shoulder length 1-1/4"
  • C Back shoulder length 3"
  • D Back shoulder diameter 3-1/2" (unfinished)
  • E Shoulder diameter 2-7/8"
  • H Spindle diameter 2-1/2"
  • 18 Threads per inch
  • 2.365" Major diameter on the threads

    • Low stock: 1 left
