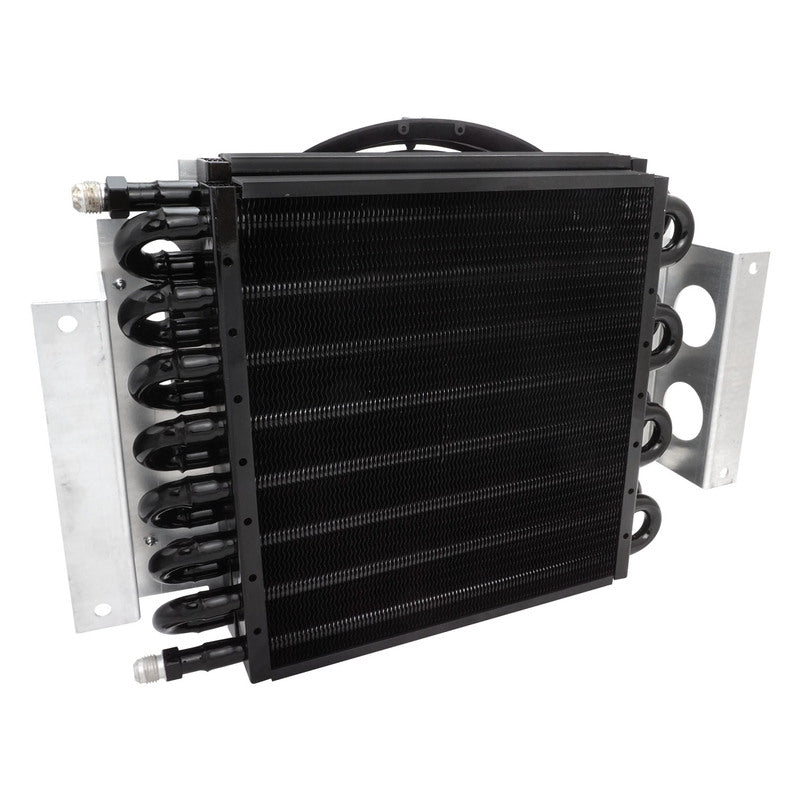

Proflow’s Ultra Cool dual core transmission oil cooler kit will help to increase your vehicle’s transmission life expectancy by significantly lowering operating temperatures. It has a large 38 mm thick powder coated dual core with an integrated mounting bracket and AN6 male connections. It also comes complete with a 650 CFM 10” curved-blade electric fan already mounted, so all you have to do is find a spot to mount it on your car! This kit also includes rubber hose, mounting accessories and a 74°C relay switch for activating the fan.
Features:
16 pass tube & fin core

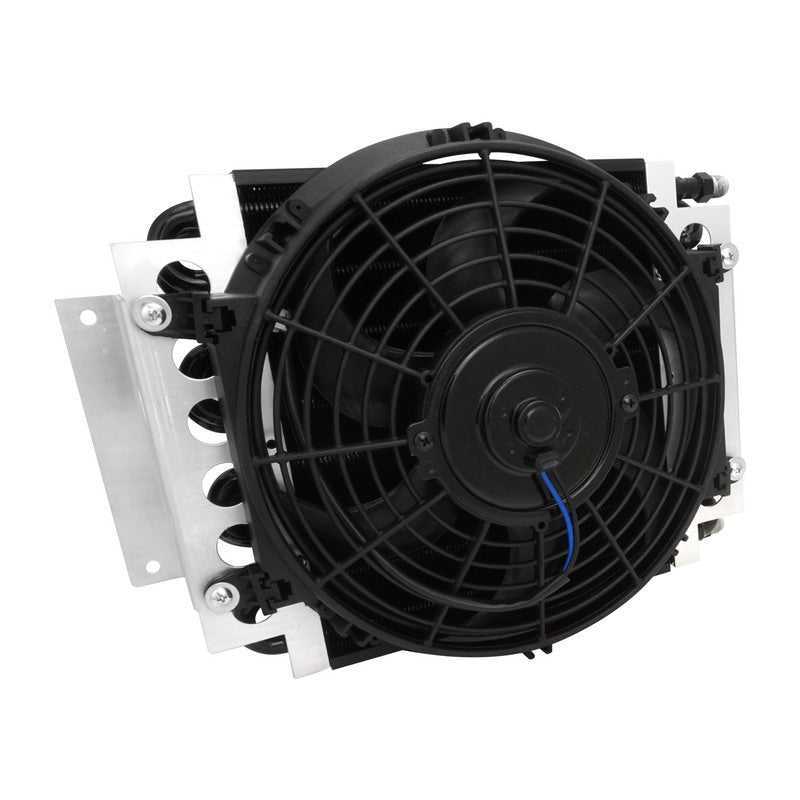

650 CFM reversible electric fan (5.3 Amp current draw)
Anodised aluminium shroud/bracket
Can be mounted vertically or horizontally
250 PSI working pressure

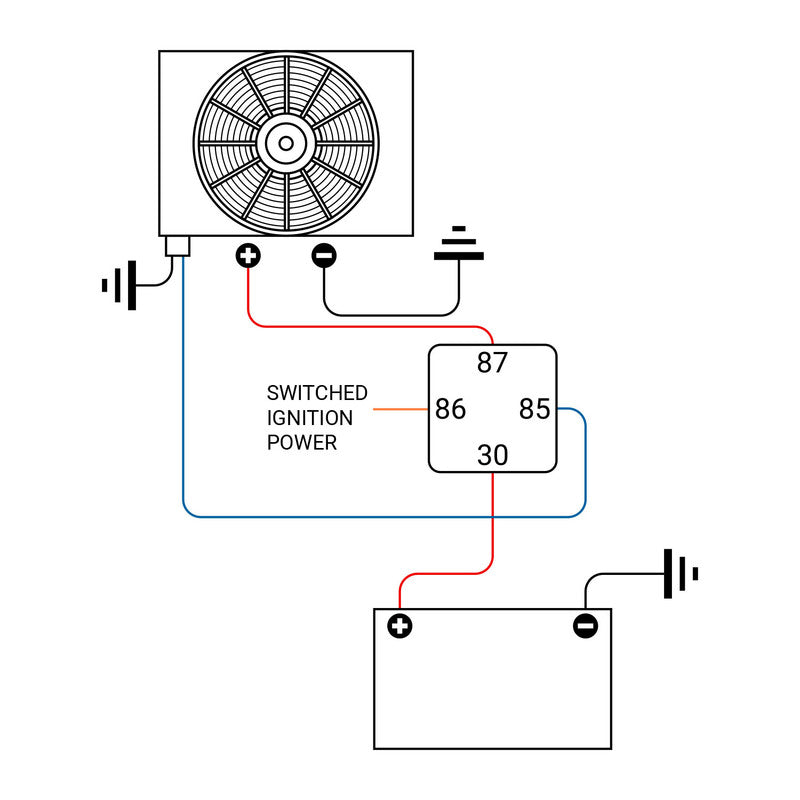

Includes 74°C in-line thermostat for fan activation
Specifications:
Inlet size: -06AN
Fan size: 10"
CFM: 650
Amp draw: 5.3 A
Width: 15-3/4"
Height: 11-1/2"
Depth: 5"
Mounting: 14-3/4" x 5-1/4"
Hose size: 3/8"
Hose length: 10'
Proflow's Ultra Cool Combo Compact fluid coolers will help to increase your vehicle's transmission life expectancy by lowering operating temperatures. Proflow also includes a 650 cfm electric fan to further the cooling experience. Proflow manufactures these fluid coolers out of quality materials to ensure performance and reliability.
