Proflow Ultra Pro 19-Row Dual-Fan Oil Cooler Kit | AN10 ORB - PFEOC19-DF

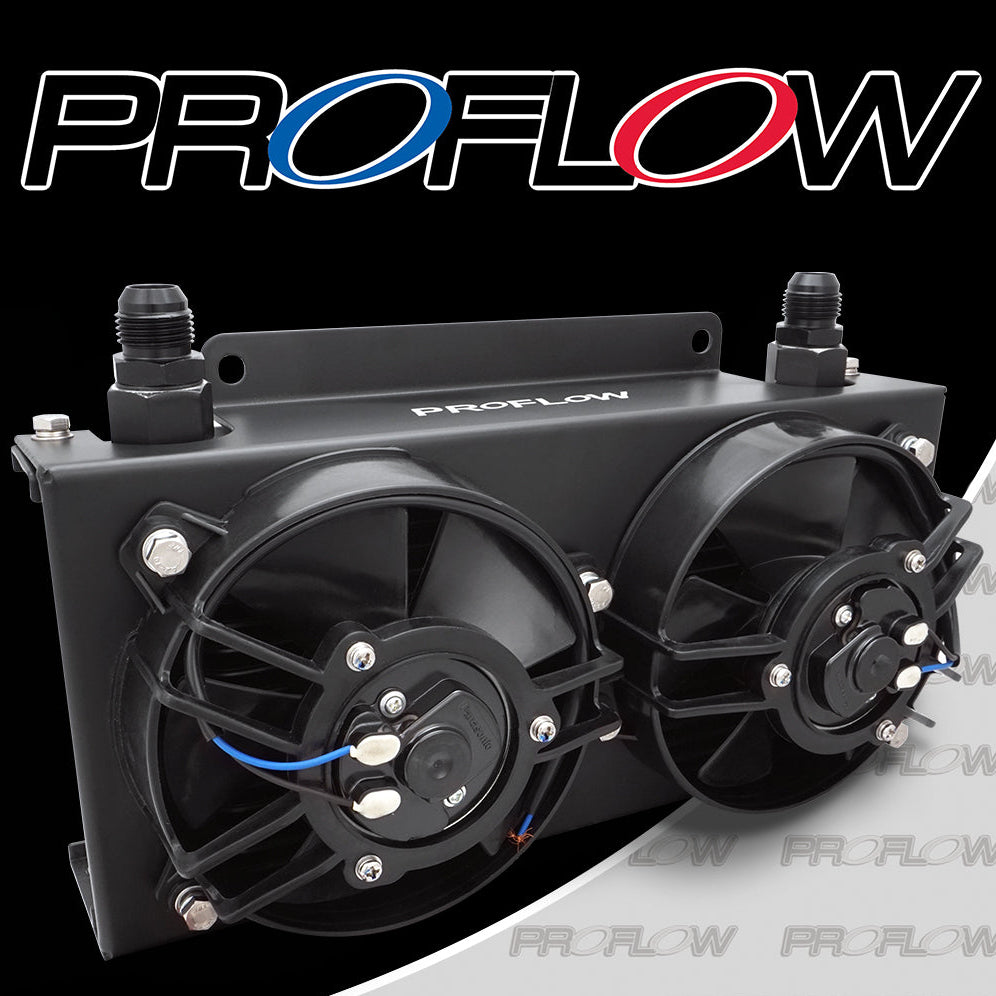

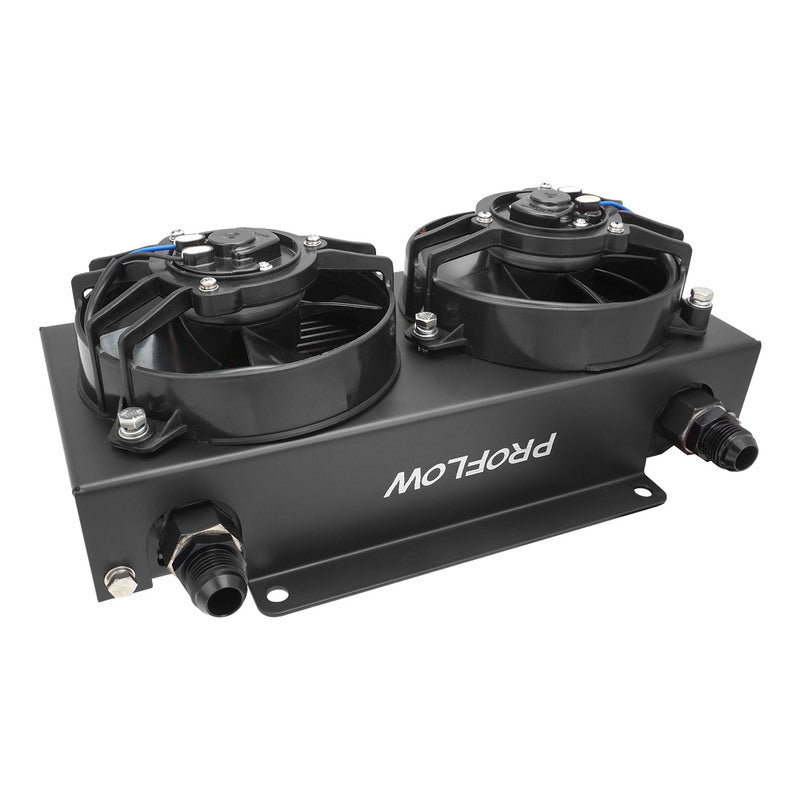

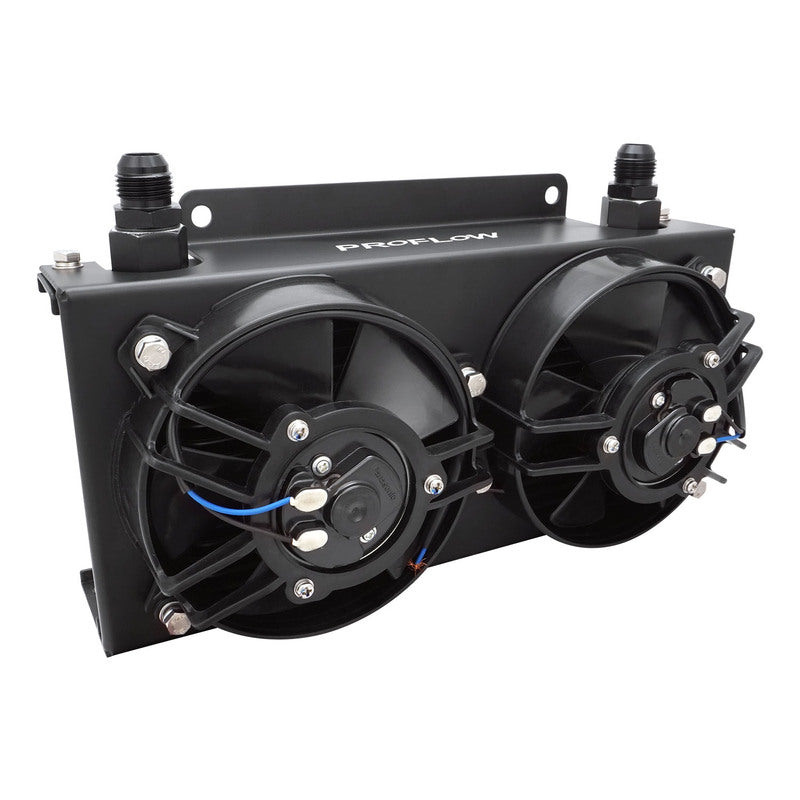

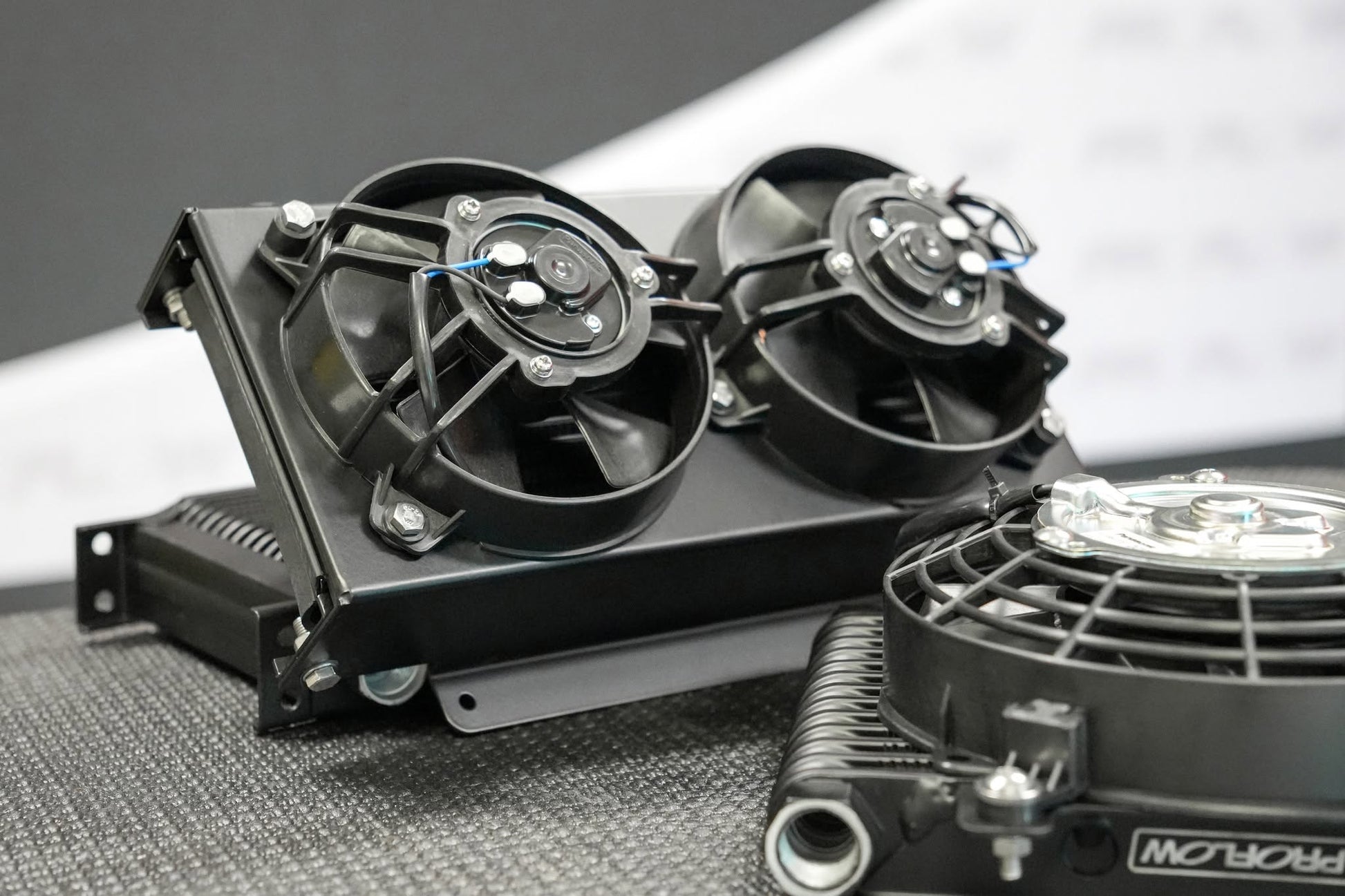

Proflow Ultra Pro 19-Row Dual-Fan Oil Cooler Kit

Mount your oil cooler away from the front of the vehicle and improve airflow to the radiator with this Proflow Ultra Pro dual-fan oil cooler kit. The 19-row stack-plate core uses integrated turbulators, while the black aluminium fan shroud channels air through the cooler and also works as a mounting bracket.

Key features

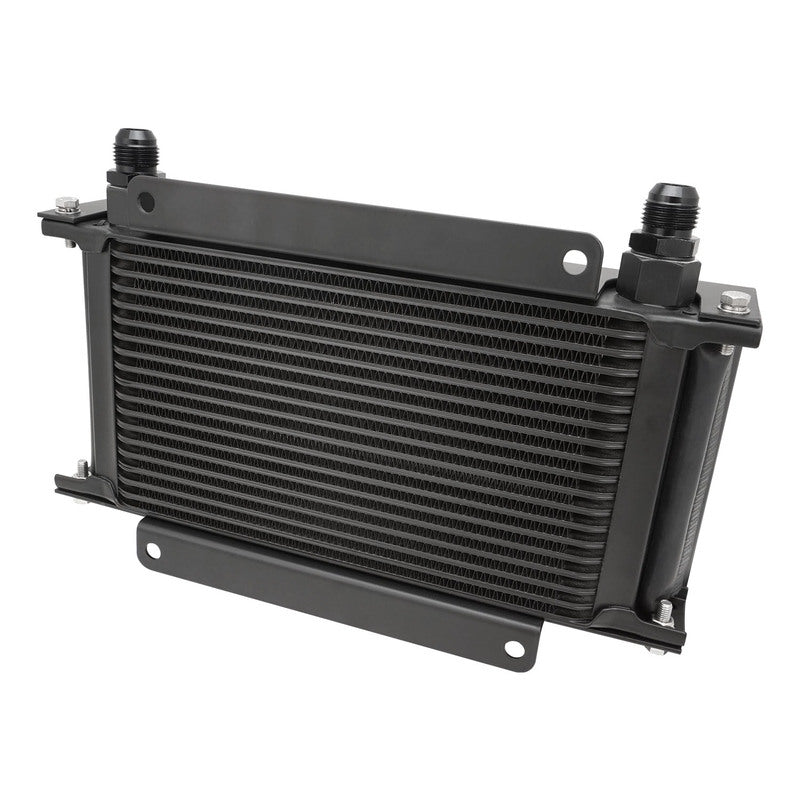

• 19-row stack-plate oil cooler with integrated turbulators
• Two 5-inch dustproof electric fans with a combined 7-amp rating
• 625 CFM airflow rating
• 38,000 BTU per hour cooling capacity
• Flexible installation with vertical or horizontal mounting
• -10AN female outlet ports with straight AN10 ORB fittings included
• Pressure tested to 250 PSI working pressure

Dimensions and specifications

• Overall dimensions: 330 × 200 × 120mm, including bracket and fans
• Oil cooler core: 280 × 145 × 50mm
• Part number: PFEOC19-DF
• Warranty: 1 year manufacturer's warranty

The included straight fittings let you connect the hose ends of your choice directly to the cooler. Check the available space, hose routing, and electrical requirements before installation.

Before installation: view the Proflow PFEOC19-DF instructions.

Australian stock ready to ship from Perth.
