Proflow AirMax Intake Manifold – Aluminium, Natural, Square Bore, Dual Plane, Ford 289/302 | PFEM7521

Proflow AirMax Dual Plane Intake Manifold – PFEM7521

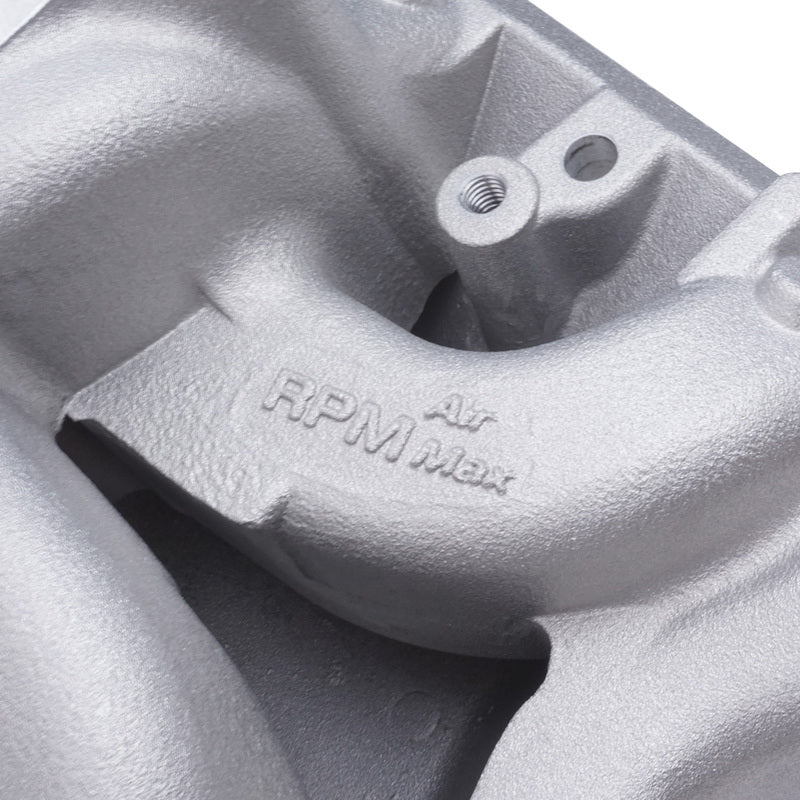

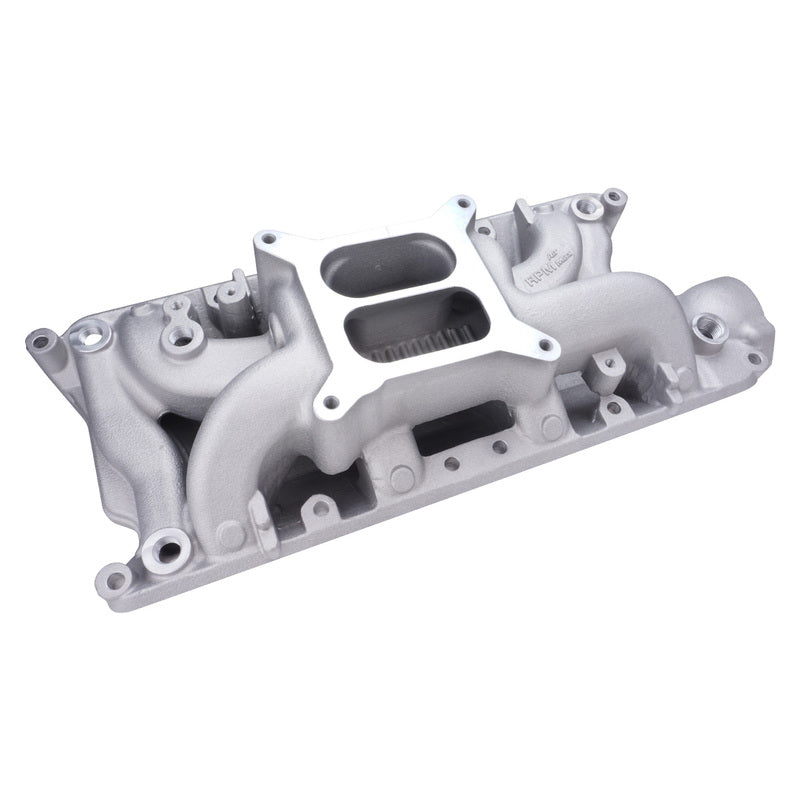

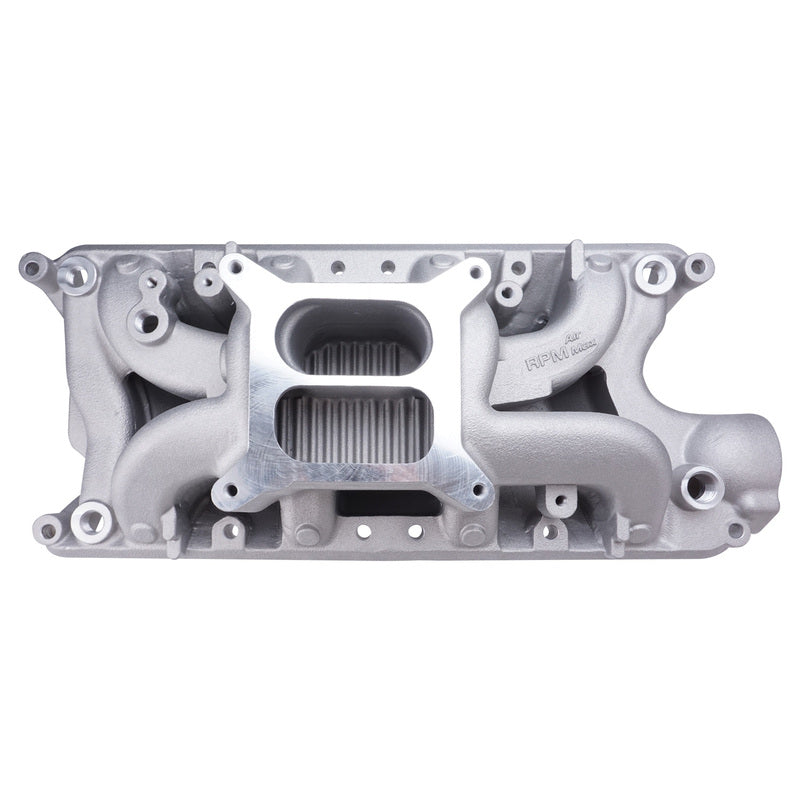

The Proflow AirMax dual-plane intake manifold brings improved airflow technology to Ford 289 and 302 engines. The signature AirMax air-gap design separates the runners from lifter-valley heat, keeping the air/fuel mixture cooler all the way to the cylinder heads — and the tuned runners push the power band 1,000 RPM higher than the original AirDual manifolds, delivering strong performance from 1,500 to 6,500 RPM.

Key Features

• AirMax air-gap design separates runners from lifter-valley heat for a cooler, denser charge and improved combustion efficiency
• Tuned runners shift the power band 1,000 RPM higher than AirDual manifolds — optimised for 1,500 to 6,500 RPM
• Dual-plane design for broad torque and strong throttle response across the RPM range
• Square bore carburettor flange for broad carb compatibility
• Natural cast aluminium finish — also available in black powder coat
• Designed specifically for Ford 289 & 302 engines

Specifications

• Part Number: PFEM7521
• Material: Cast Aluminium
• Finish: Natural
• Manifold Type: Dual Plane
• Carb Flange: Square Bore
• Application: Ford 289 & 302
• RPM Range: 1,500 – 6,500 RPM
• Weight: 10 kg

Want the black powder coat finish? Also available — ask us for details. Same proven AirMax performance, different look.
