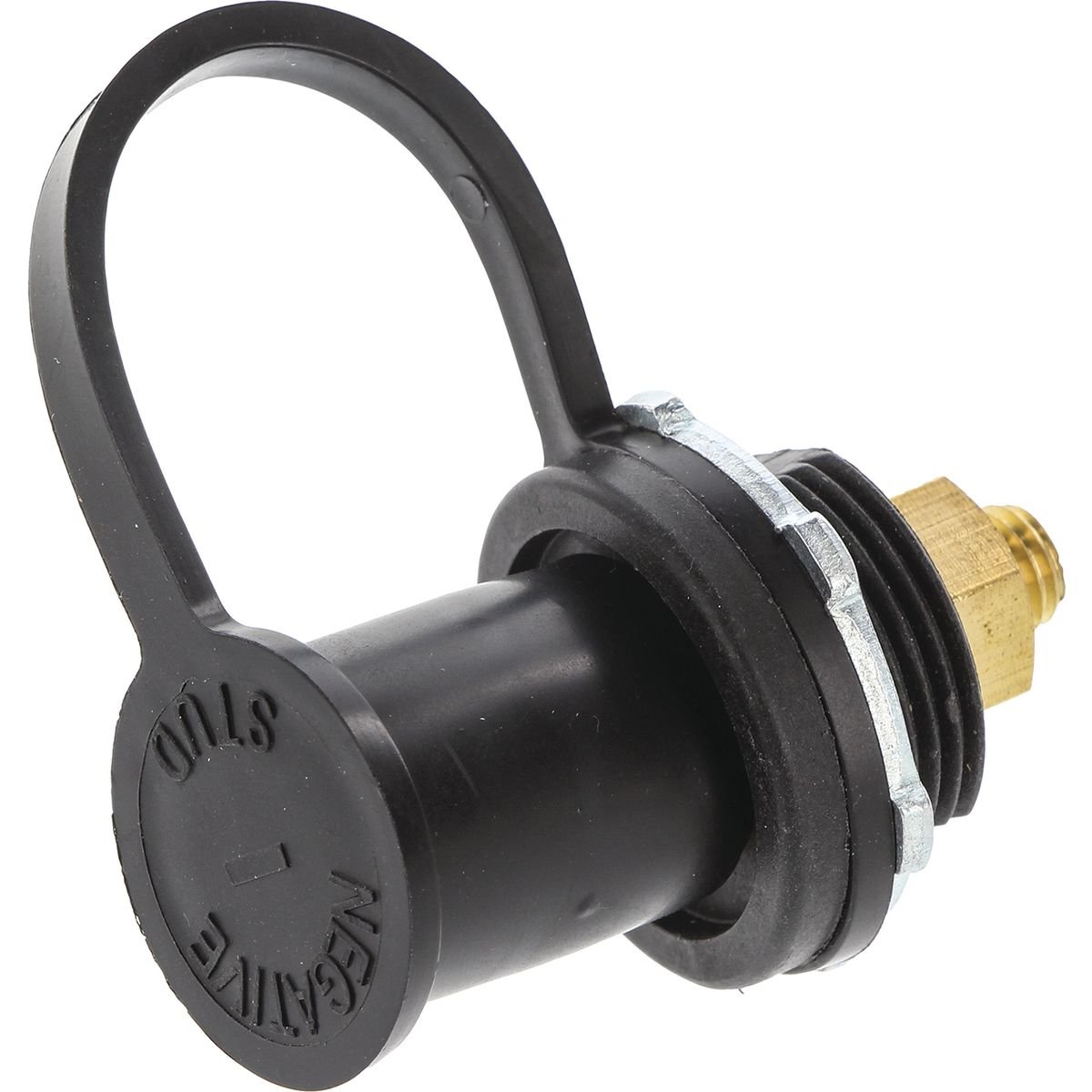

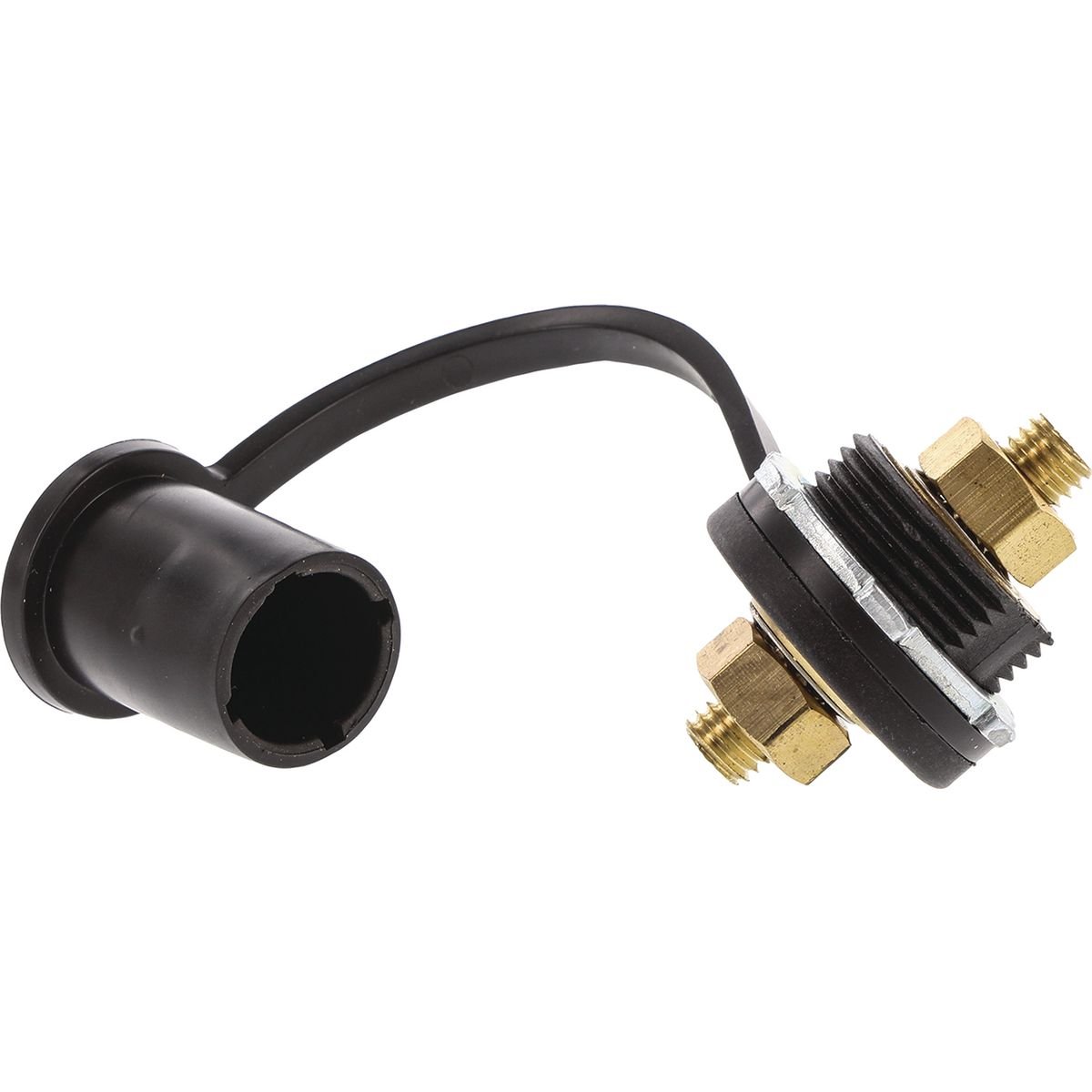

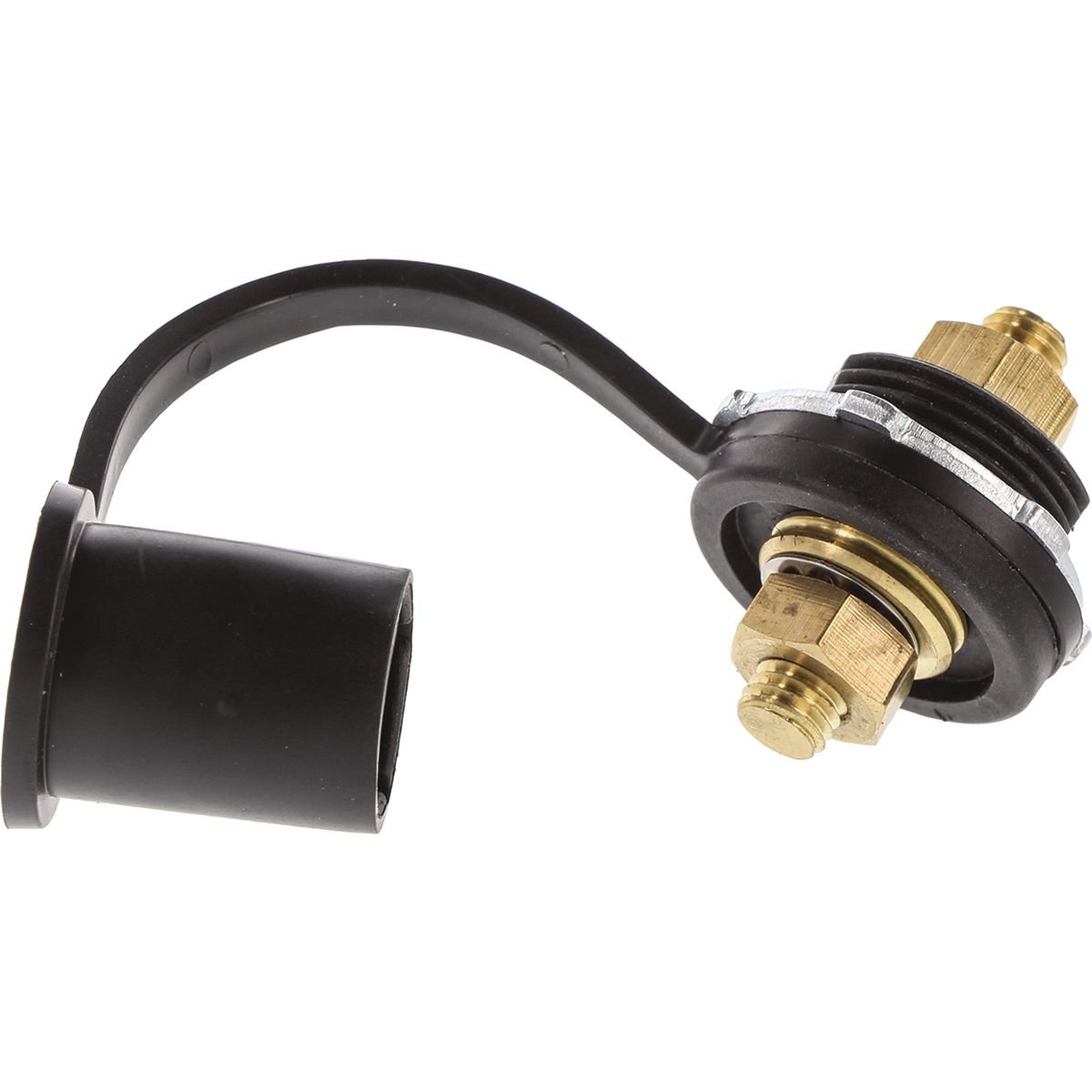

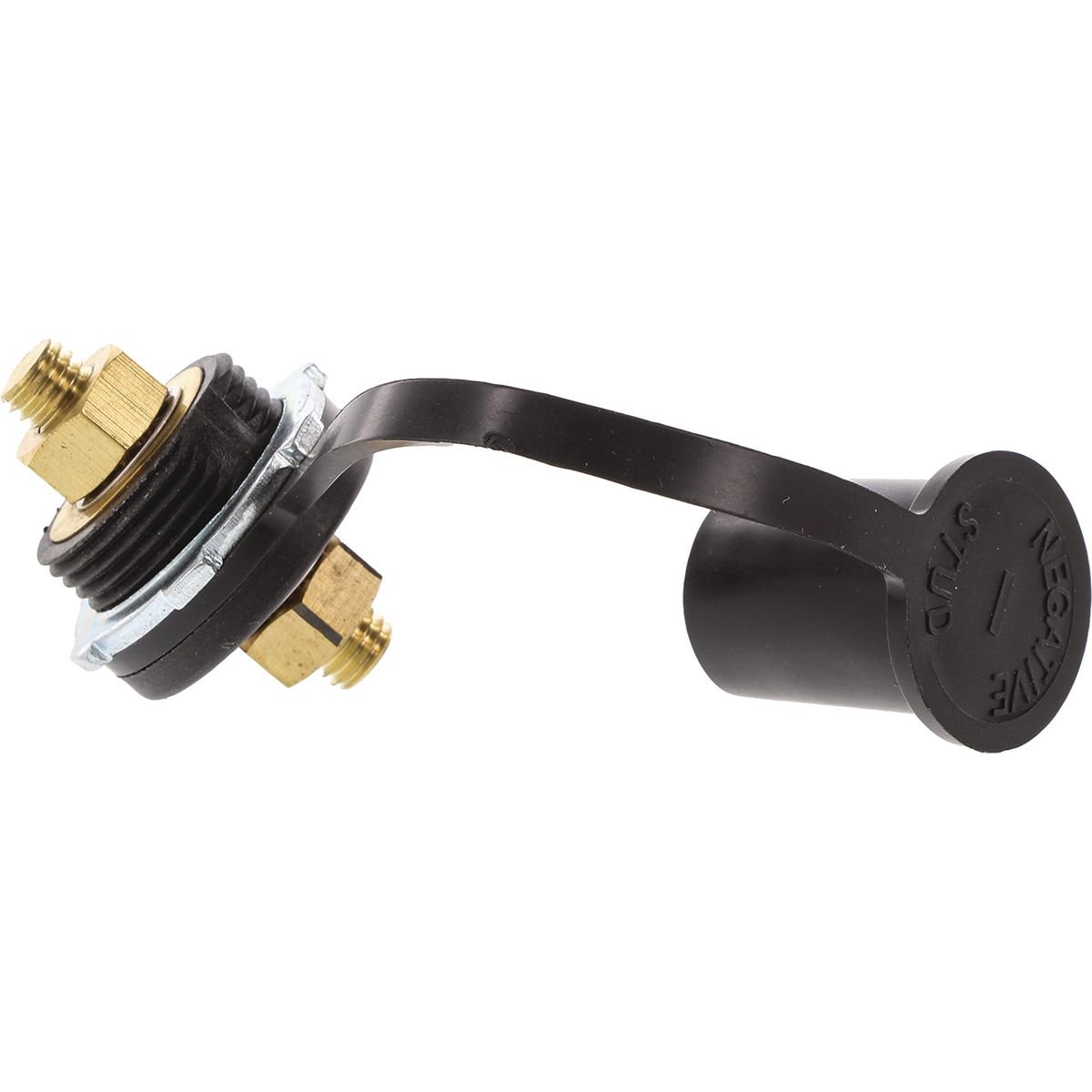

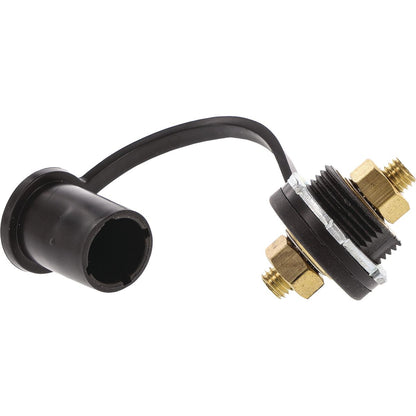

OEX Single Firewall & Bulkhead Stud - ACX0034

The OEX Single Firewall & Bulkhead Stud (ACX0034) is a heavy-duty electrical passthrough terminal designed for routing high-current circuits through firewalls and bulkheads in automotive, 4WD, and performance builds. Rated to 250A continuous and 48V DC, it's built to handle serious electrical loads with confidence.

Features

• Impact-resistant plastic insulator and mounting bush
• 250A continuous current rating
• 48V DC maximum operating voltage
• 10mm brass bolts for reliable conductivity
• Stainless steel nuts for corrosion resistance
• 2 x 3/8-16 thread brass stud terminals
• 15.9mm terminal length
• 32mm diameter mounting hole
• Suitable for installation through firewalls and bulkheads
