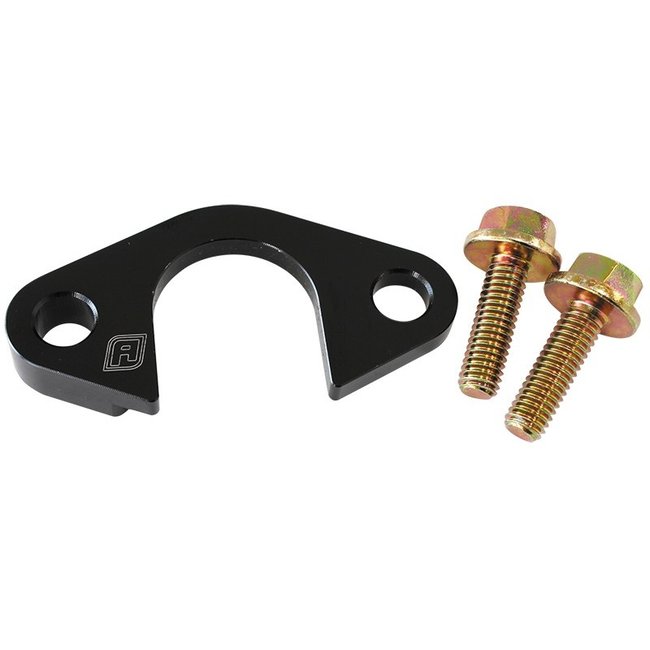

Aeroflow Oil Pick-Up Tube Support Brace Bracket GM LS Series Engines Bolts Included - AF82-2408

Aeroflow Oil Pick-Up Tube Support Brace - Essential LS Engine Protection

Eliminate oil pressure issues and prevent pick-up tube movement with the Aeroflow AF82-2408 Oil Pick-Up Tube Support Brace. Engineered specifically for GM LS series engines, this precision-manufactured brace secures your oil pick-up tube from both sides, preventing the oil leaks and cavitation problems caused by the factory's inadequate single-tab design.

Key Features:

• Dual-Side Clamping Design - Evenly secures pick-up tube from both sides for maximum stability
• Utilizes Existing Bolt Hole - No drilling required, uses factory un-used mounting point
• Prevents Oil Pressure Loss - Eliminates movement that causes cavitation and pressure issues
• Complete Kit - Includes all mounting bolts for straightforward installation
• Professional Quality - Aeroflow's aerospace-grade manufacturing standards
• Direct Fit for LS Engines - Designed specifically for GM LS series engines

Why You Need This Brace:

The factory GM LS oil pick-up tube is held in place by only one small tab, which is commonly found to cause oil pressure issues due to movement during high-RPM operation or hard acceleration. This movement can lead to oil starvation, cavitation, and catastrophic engine damage. Aeroflow's support brace eliminates this weak point by providing secure, dual-side clamping that keeps your pick-up tube exactly where it needs to be.

Compatible Engines:

GM LS series engines including LS1, LS2, LS3, LS6, LS7, LS9, LSA, LQ4, LQ9, L92, L76, and other LS variants. Essential upgrade for any LS engine rebuild or performance build.

Perfect For:

LS engine rebuilds, performance builds, race engines, high-RPM applications, street performance builds, and any LS application where reliable oil pressure is critical. This is a must-have upgrade during any LS engine assembly or rebuild to prevent oil system failures.

Installation Notes:

Install during engine assembly or oil pan removal. All mounting hardware included. Professional installation recommended to ensure proper pick-up tube positioning and secure mounting.

Australian Stock - Fast Perth Dispatch

In stock and ready to ship from our Wangara facility. Click and collect available for local Perth customers.

Part Number: AF82-2408
