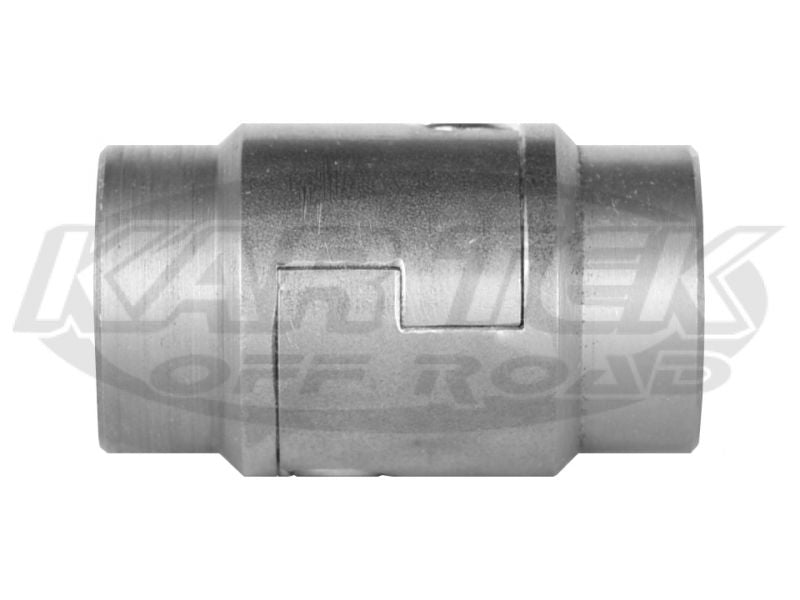

1-1/2" Interlocking Weld-In Tube Clamp Connector, 0.095" Wall | KTKTC150095

This interlocking weld-in tube clamp connector suits 1-1/2" diameter tubing with a 0.095" wall thickness. Made from 4130 chromoly, it allows a section of a chassis or tube assembly to be unbolted and removed when access is needed.

Specifications

• Tube diameter: 1-1/2"
• Tube wall thickness: 0.095"
• Material: 4130 chromoly
• Connector type: Interlocking weld-in tube clamp connector / coupler
• Part number: KTKTC150095

Applications

Use for removable chassis sections, rear bumpers and engine cages where an unbolting connection can provide access for engine removal or maintenance.

Check your tubing diameter and wall thickness before ordering. Tube connectors are available for different wall thicknesses; this listing is for the 1-1/2" diameter, 0.095" wall version.
