3/4"-16 RH Chromoly Step Round Bung for 1-1/2" x 0.120" Tube | KTK750TBRR1250

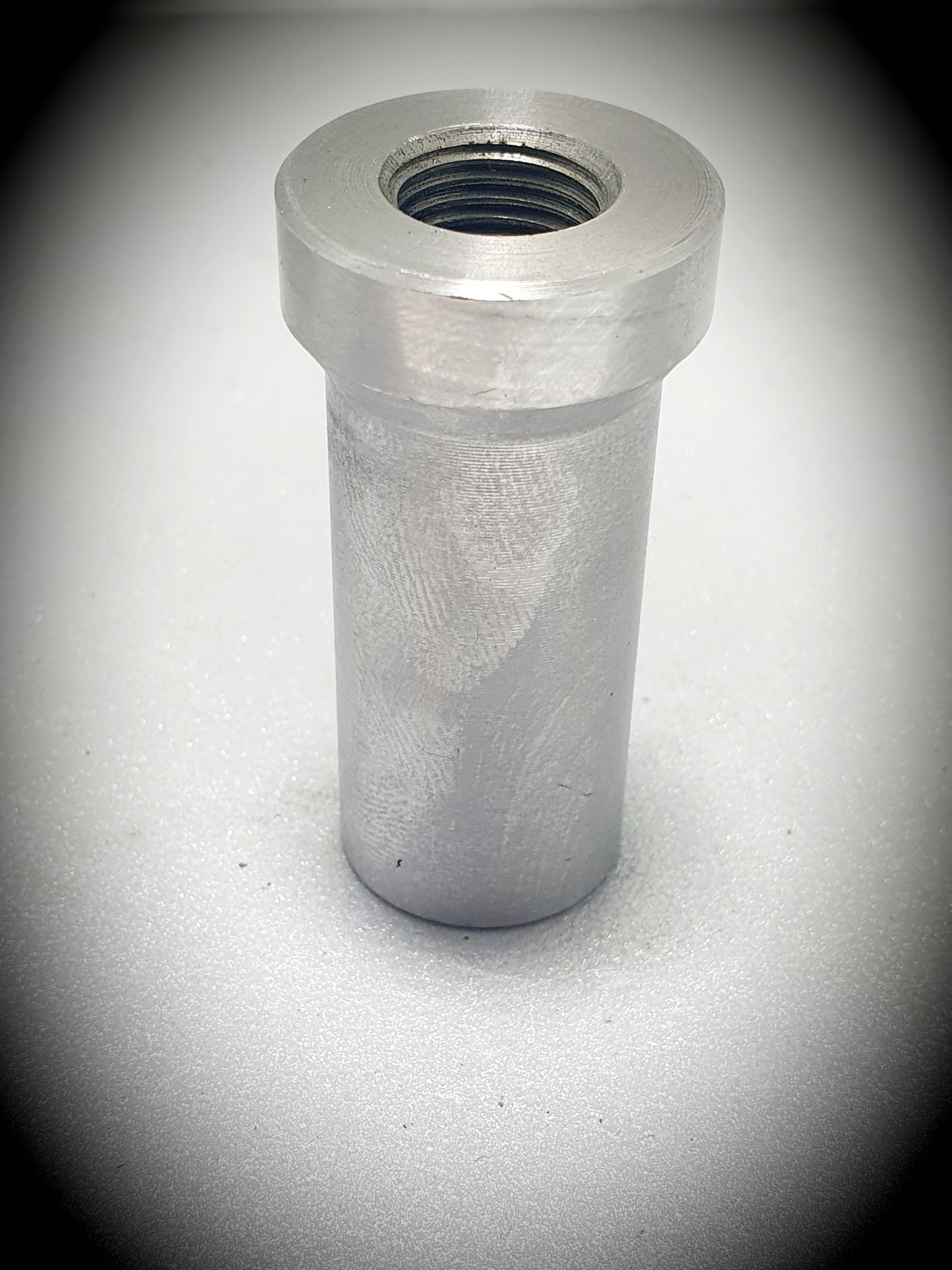

3/4"-16 Right Hand Thread Chromoly Step Round Bung – KTK750TBRR1250

Precision-machined from chromoly steel, this step round bung is built for serious fabrication. Designed to fit 1-1/2" x 0.120" wall tubing and accept 3/4" right hand thread heim joints, it's a go-to component for custom suspension and steering link builds.

Common Applications

• Tie rods & drag links
• Sway bar links & pan hard bars
• 3-link, 4-link & 5-link suspension
• Trailing arms, ladder bars & traction bars
• Upper & lower control arms, A-arms

Specifications

• SKU: KTK750TBRR1250
• Material: Chromoly
• Thread: 3/4"-16 Fine Thread, Right Hand (RH)

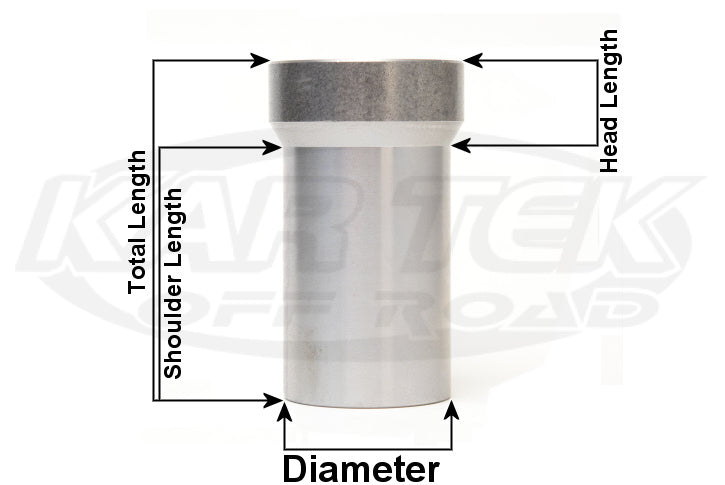

• Total Length: 2-1/8"
• Shoulder Length: 1-1/2"
• Head Length: 5/8"
• Fits Into: 1-1/2" x 0.120" Wall Tubing
• Base Diameter: 1-1/4"
• Note: Not threaded all the way through

Compatible with FK Rod Ends, Aurora Bearing Company, and NHBB New Hampshire Ball Bearing heim joints.
