3/4"-16 RH Chromoly Step Round Bung for 1-1/4" x 0.120" Tube | KTK750TBRR

3/4"-16 Right Hand Thread Chromoly Step Round Bung – KTK750TBRR

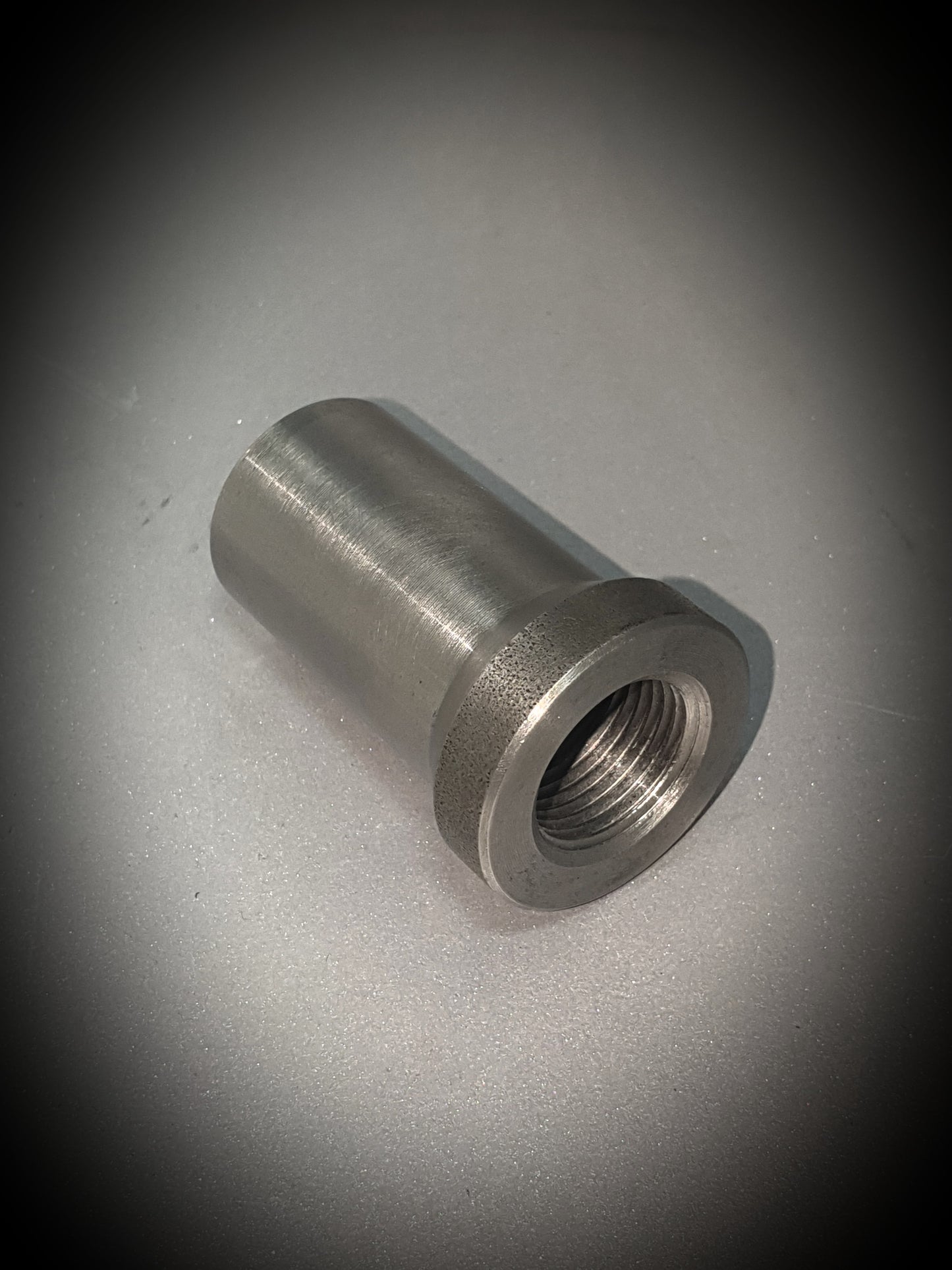

A precision-machined chromoly step round bung for mid-size suspension and steering link fabrication. Designed to fit 1-1/4" x 0.120" wall tubing and accept 3/4" right hand thread heim joints. Pair with the LH version (KTK750TBRL) for a fully adjustable link assembly.

Common Applications

• Tie rods & drag links
• Sway bar links & pan hard bars
• 3-link, 4-link & 5-link suspension
• Trailing arms, ladder bars & traction bars
• Upper & lower control arms, A-arms

Specifications

• SKU: KTK750TBRR
• Material: Chromoly
• Thread: 3/4"-16 Fine Thread, Right Hand (RH)

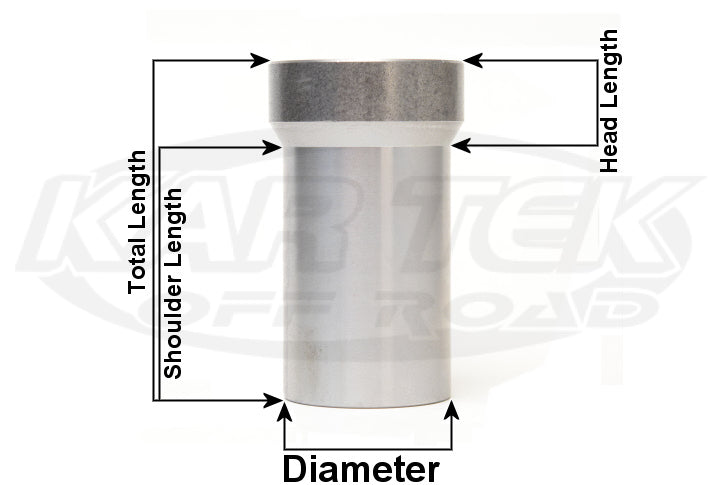

• Total Length: 2"
• Shoulder Length: 1-9/16"
• Head Length: 7/16"
• Fits Into: 1-1/4" x 0.120" Wall Tubing
• Base Diameter: 1"
• Note: Not threaded all the way through

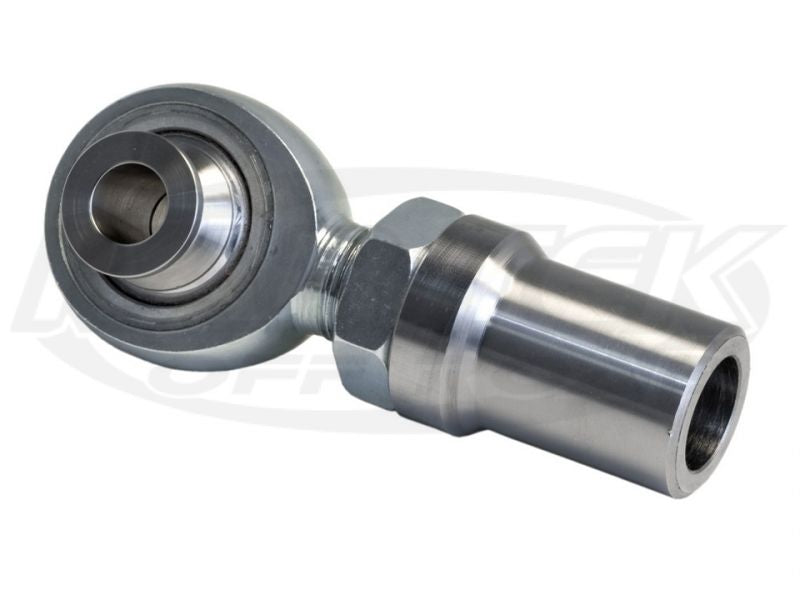

Compatible with FK Rod Ends, Aurora Bearing Company, and NHBB New Hampshire Ball Bearing heim joints.
