3/8"-24 RH Chromoly Step Round Bung for 3/4" x 0.095" Tube | KTK375TBRR750

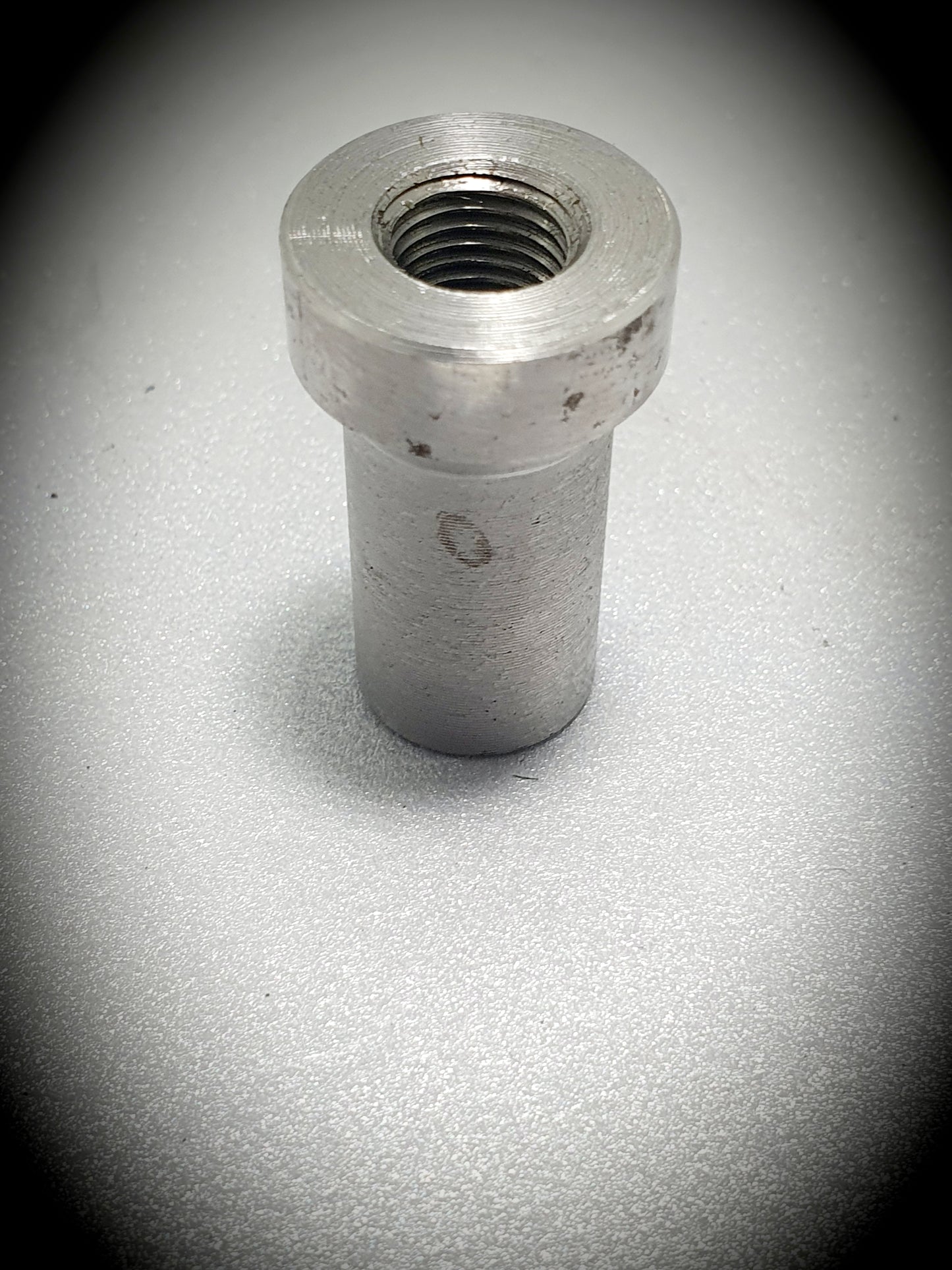

3/8"-24 Right Hand Thread Chromoly Step Round Bung – KTK375TBRR750

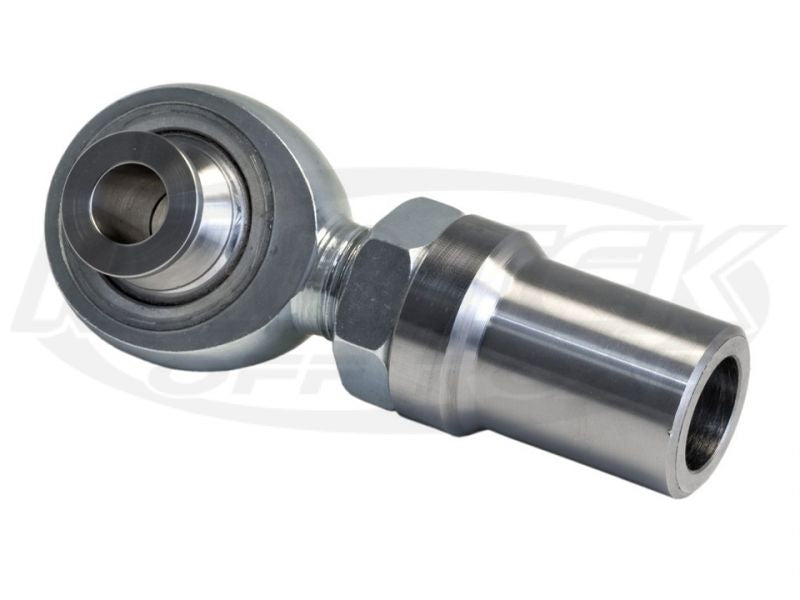

A compact, precision-machined chromoly step round bung built for smaller-diameter tube fabrication. Designed to fit 3/4" x 0.095" wall tubing and accept 3/8" right hand thread heim joints. Pair with the LH version for a fully adjustable link assembly.

Common Applications

• Tie rods & drag links
• Sway bar links & pan hard bars
• 3-link, 4-link & 5-link suspension
• Trailing arms, ladder bars & traction bars
• Upper & lower control arms, A-arms

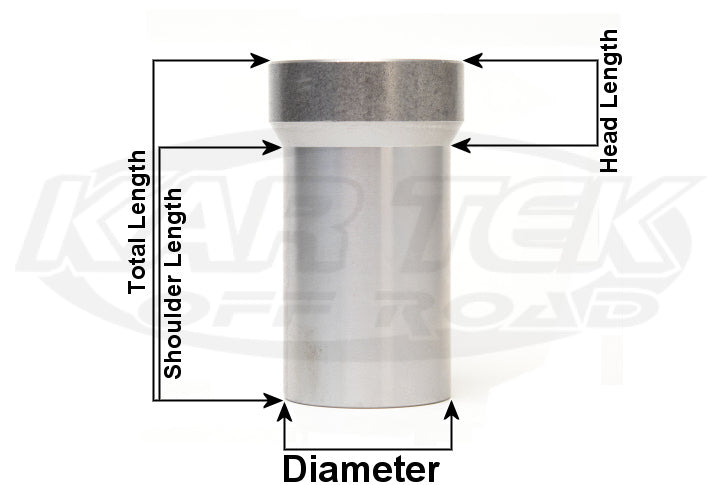

Specifications

• SKU: KTK375TBRR750
• Material: Chromoly
• Thread: 3/8"-24 Fine Thread, Right Hand (RH)
• Total Length: 1-1/4"
• Shoulder Length: 7/8"
• Head Length: 3/8"
• Fits Into: 3/4" x 0.095" Wall Tubing
• Base Diameter: 9/16"
• Note: Not threaded all the way through

Compatible with FK Rod Ends, Aurora Bearing Company, and NHBB New Hampshire Ball Bearing heim joints.
