3/8"-24 LH Chromoly Step Round Bung for 1" x 0.095" Tube | KTK375TBRL095

3/8"-24 Left Hand Thread Chromoly Step Round Bung – KTK375TBRL095

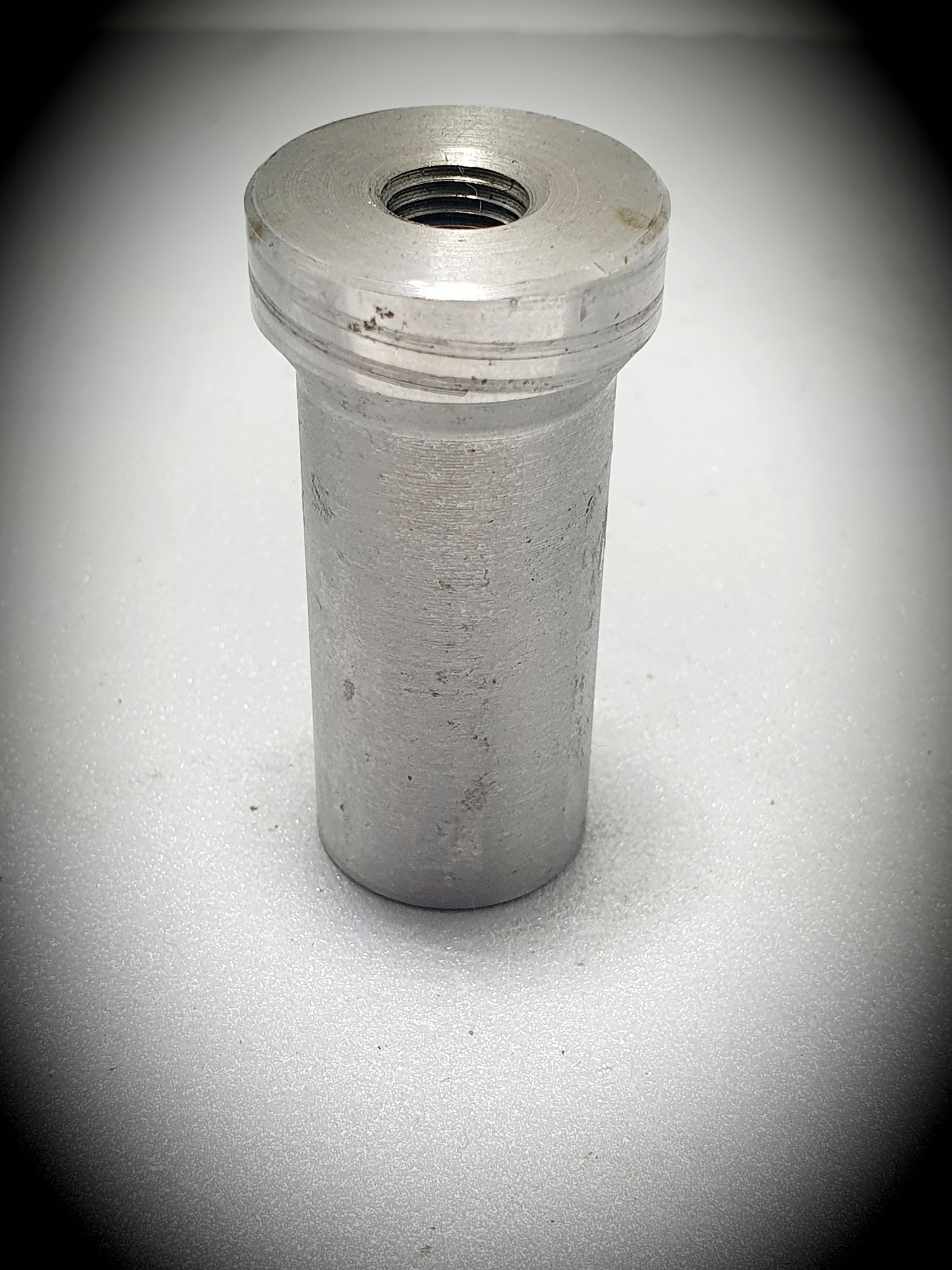

The LH counterpart to the KTK375TBRR095, this precision-machined chromoly step round bung is designed for 1" x 0.095" wall tubing and accepts 3/8" left hand thread heim joints. Pair it with the RH version for a fully adjustable suspension or steering link assembly.

Common Applications

• Tie rods & drag links
• Sway bar links & pan hard bars
• 3-link, 4-link & 5-link suspension
• Trailing arms, ladder bars & traction bars
• Upper & lower control arms, A-arms

Specifications

• SKU: KTK375TBRL095
• Material: Chromoly
• Thread: 3/8"-24 Fine Thread, Left Hand (LH)

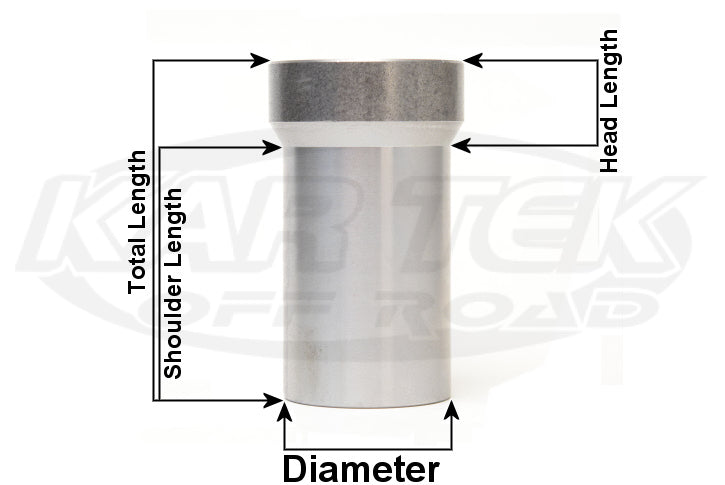

• Total Length: 2"
• Shoulder Length: 1-9/16"
• Head Length: 7/16"
• Fits Into: 1" x 0.095" Wall Tubing
• Base Diameter: 13/16"
• Note: Not threaded all the way through

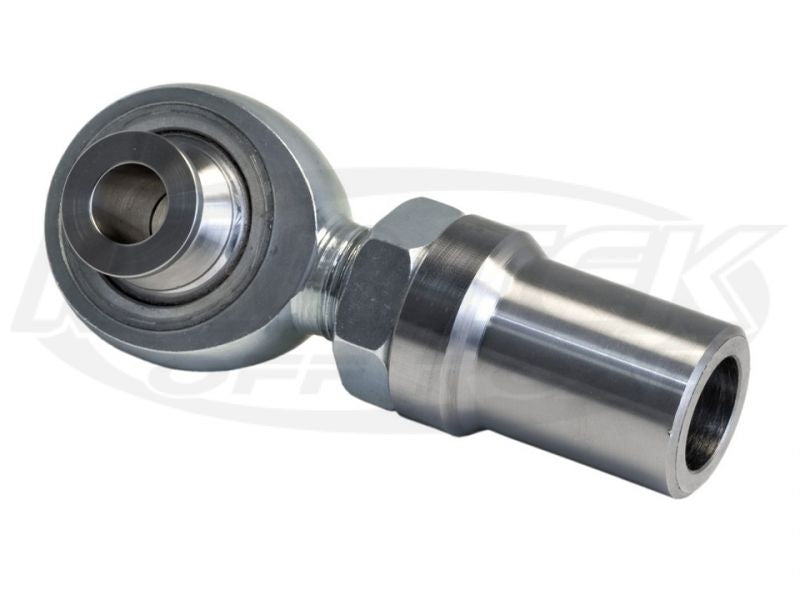

Compatible with FK Rod Ends, Aurora Bearing Company, and NHBB New Hampshire Ball Bearing heim joints.
