FK Rod End 3/4" Right Hand Thread 5/8" Hole with Shoulder PTFE Coated Heim Joint F2 Fit - FKBHRSMX10T

FK Rod End with Shoulder - 3/4" Right Hand Thread, 5/8" Hole, PTFE Coated Heim Joint

Build bulletproof suspension linkage with FK's premium PTFE-coated heim joints featuring built-in misalignment shoulder. Featuring 3/4" right hand thread and 5/8" hole with F2 fit, these HRSMX series rod ends deliver the strength, precision, and low-friction performance demanded by race cars and off-road vehicles.

Key Features

• Built-in misalignment shoulder for proper suspension geometry
• PTFE (Teflon) coating reduces friction and extends service life
• Heat treated hard chrome plated 52100 steel ball for maximum durability
• Heat treated 4340 chromoly zinc plated chromate treated body
• 3/4" right hand thread for standard linkage applications
• 5/8" hole diameter for proper bolt fitment
• F2 fit tolerance for precision suspension geometry
• Self-lubricating PTFE liner eliminates need for grease
• Larger diameter shank than hole for added strength
• Australian stock with fast Perth dispatch

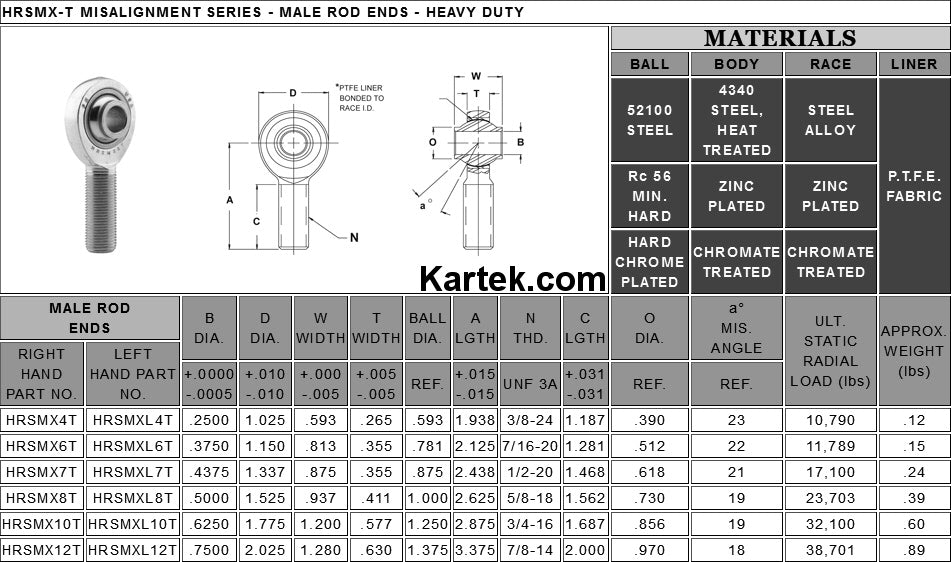

Specifications

• Thread Size: 3/4 inch right hand
• Hole Diameter: 5/8 inch (15.9mm)
• Fit: F2 tolerance
• Coating: PTFE (Teflon)
• Ball Material: Heat treated hard chrome plated 52100 steel
• Body Material: Heat treated 4340 chromoly
• Series: HRSMX with shoulder
• Part Number: FKBHRSMX10T

Perfect For

• Race car suspension linkage
• Off-road vehicle tie rods and control arms
• High-performance steering systems
• Custom suspension fabrication requiring misalignment shoulder
• Rock crawler and desert racing applications

Whether you're building a race car suspension, fabricating custom control arms, or upgrading your off-road rig's steering, FK's PTFE-coated chromoly rod ends with shoulder deliver the precision and durability your suspension demands.
