Fox 3.0" Bypass Shock Rebuild Kit | 7/8" Shaft 2.5" Reservoir 3-Tube FOX-80300022A

Fox Racing Shox complete O-ring rebuild kit for 3.0" three-tube bypass shocks with 7/8" shafts and 2.5" reservoirs. This comprehensive seal kit includes all shock body, reservoir, and bypass adjuster seals needed for a complete rebuild.

Compatibility

• Fox 3.0" three-tube bypass shocks (7/8" shaft, 2.5" reservoir)
• Also fits Fox 3.0" smooth body (smoothie) shocks with 7/8" shaft

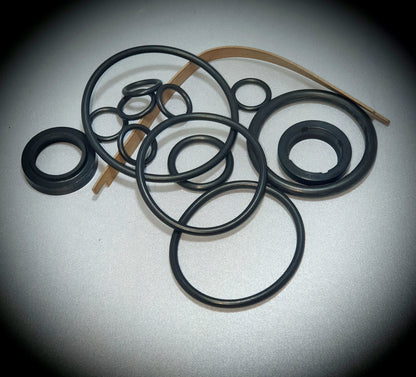

Kit Contents (Part 803-00-022-A)

Shock Body Seals:

• 1 Wiper seal for bearing cap
• 1 Wiper seal for shaft bearing/shaft guide
• 1 Internal O-ring for shaft bearing/shaft guide
• 1 External O-ring for shaft bearing/shaft guide

2.5" Reservoir Seals:

• 1 Soft wear band for reservoir piston
• 1 Thick O-ring for reservoir piston
• 2 O-rings for reservoir end caps

Bypass Seals:

• 6 O-rings for bypass adjusters (services 3 adjusters)

Pro Tip

A shaft bullet tool (sold separately) is strongly recommended to prevent seal damage during reassembly. This inexpensive tool prevents torn seals and eliminates the need to rebuild twice.

Clearance pricing—limited stock available.
