1" LH PTFE Chromoly Heim Joint | FK Rod Ends JMXL161T | FKBJMXL161T

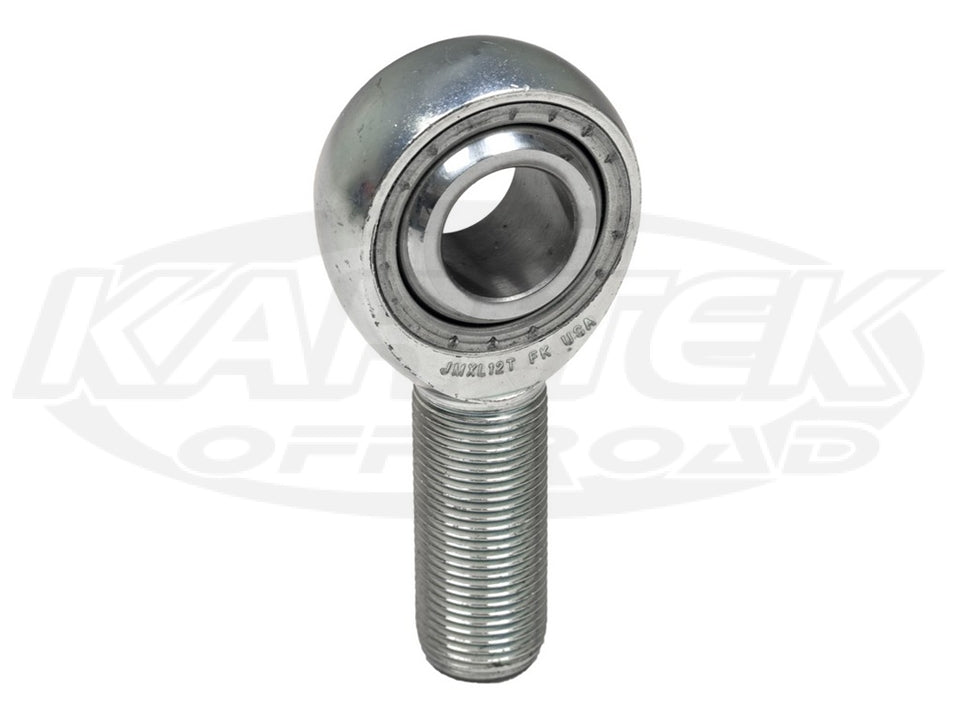

FK Rod Ends JMXL161T – 1" Left Hand Thread PTFE Chromoly Heim Joint

The FKBJMXL161T is a premium 3-piece FK JMX series heim joint featuring a PTFE-lined race ball for smooth, maintenance-free articulation. Built from chromoly steel with a hard chrome plated ball, it's engineered for high-load suspension, steering, and fabrication applications where precision and durability are non-negotiable.

Key Features

• FK JMX series 3-piece construction with PTFE liner for low-friction, maintenance-free operation
• F2 fit for precise housing tolerances
• 1" left hand (LH) thread with 1" bore hole
• Hard chrome plated 52100 steel ball (Rc 56 min. hardness)
• Chromoly alloy steel body, heat treated
• Zinc plated and chromate treated for corrosion resistance

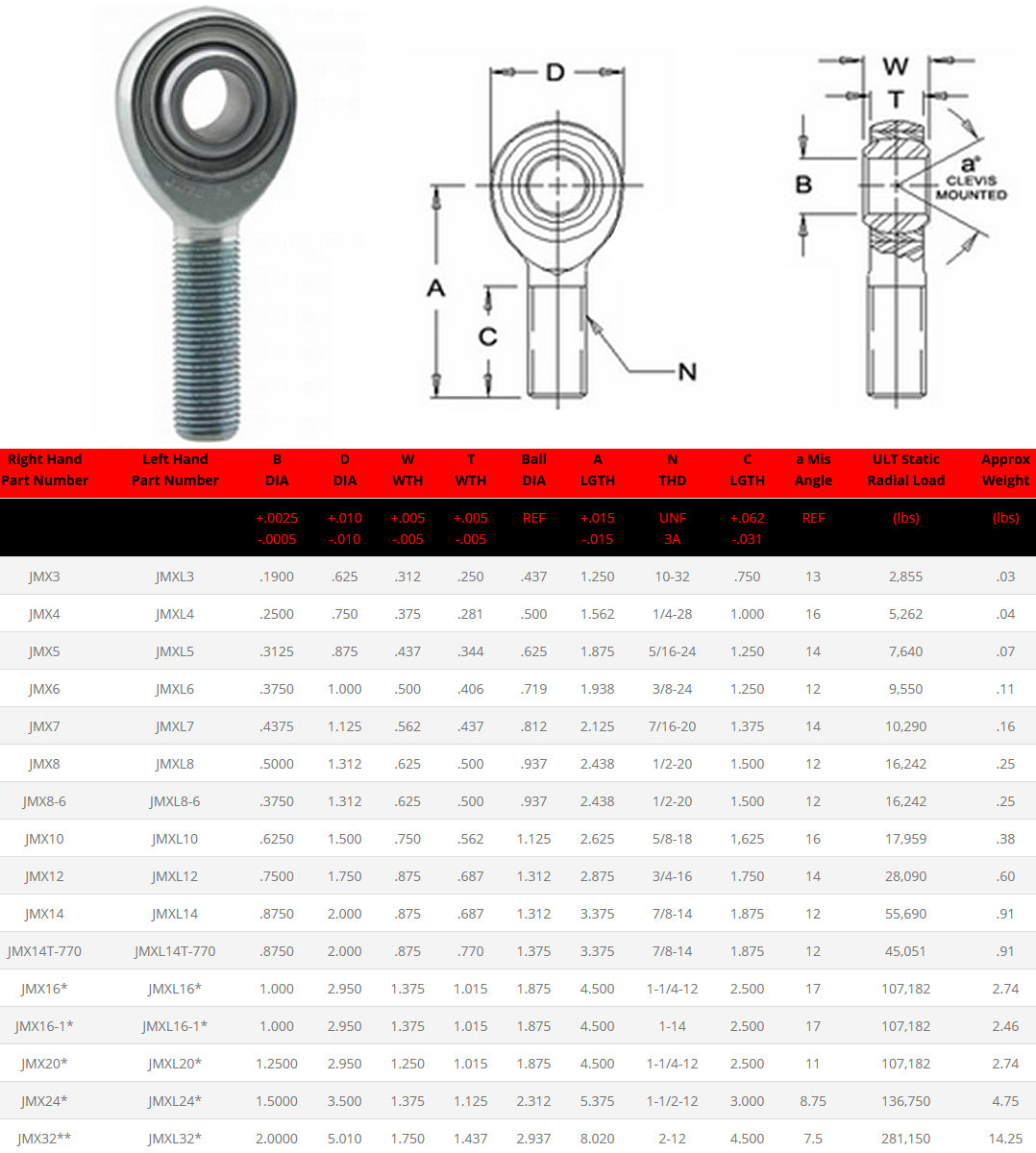

Specifications

• SKU: FKBJMXL161T
• Series: FK JMX – 3-piece PTFE lined
• Thread: 1" Left Hand (LH)
• Bore: 1" hole
• Fit: F2
• Ball Material: 52100 Steel, Hard Chrome Plated, Rc 56 min.
• Body Material: Chromoly Alloy Steel, Heat Treated, Zinc Plated & Chromate Treated

Ideal for race car suspension links, steering components, and custom high-performance fabrication builds.
