3/8" RH PTFE Chromoly Heim Joint | FK Rod Ends JMX6T | FKBJMX6T

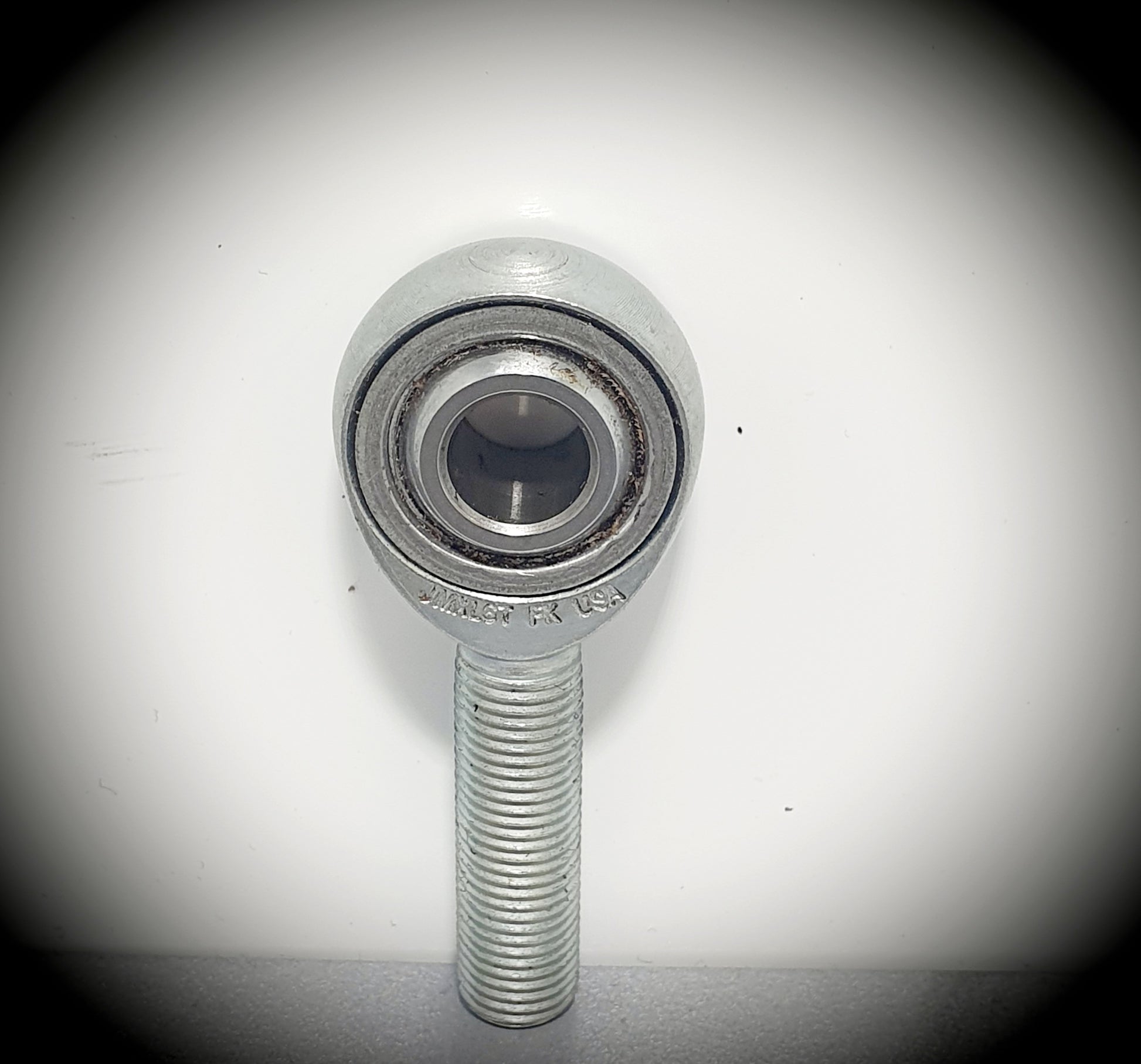

FK Rod Ends JMX6T – 3/8" Right Hand Thread PTFE Chromoly Heim Joint

The FKBJMX6T is a precision-engineered FK JMX series heim joint featuring a PTFE-lined race ball for smooth, maintenance-free articulation. Built from chromoly steel with a hard chrome plated 52100 steel ball, it's ideal for lightweight suspension links, steering components, and custom fabrication builds requiring reliable performance in a compact package.

Key Features

• FK JMX series 3-piece construction with PTFE liner for low-friction, maintenance-free operation
• F2 fit for precise housing tolerances
• 3/8" right hand (RH) thread with 3/8" bore hole
• Hard chrome plated 52100 steel ball (Rc 56 min. hardness)
• Chromoly alloy steel body and race, heat treated
• Zinc plated and chromate treated for corrosion resistance

Specifications

• SKU: FKBJMX6T
• Series: FK JMX – 3-piece PTFE lined
• Thread: 3/8" Right Hand (RH)
• Bore: 3/8" hole
• Fit: F2
• Ball Material: 52100 Steel, Hard Chrome Plated, Rc 56 min.
• Body Material: Chromoly Alloy Steel, Heat Treated, Zinc Plated & Chromate Treated

Ideal for race car suspension links, steering components, and custom high-performance fabrication builds. Pair with the LH version for a fully adjustable link assembly.
