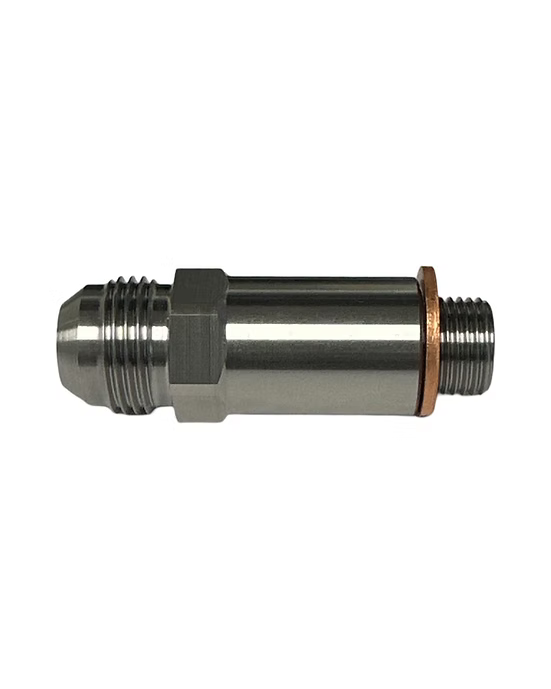

Dailey Engineering LS Oil Feed Fitting – OEM Block 16mm to -10 Flare

Dailey Engineering LS Oil Feed Fitting – OEM Engine Block 26-02-0600

16mm thread to -10 flare | Crush washer included

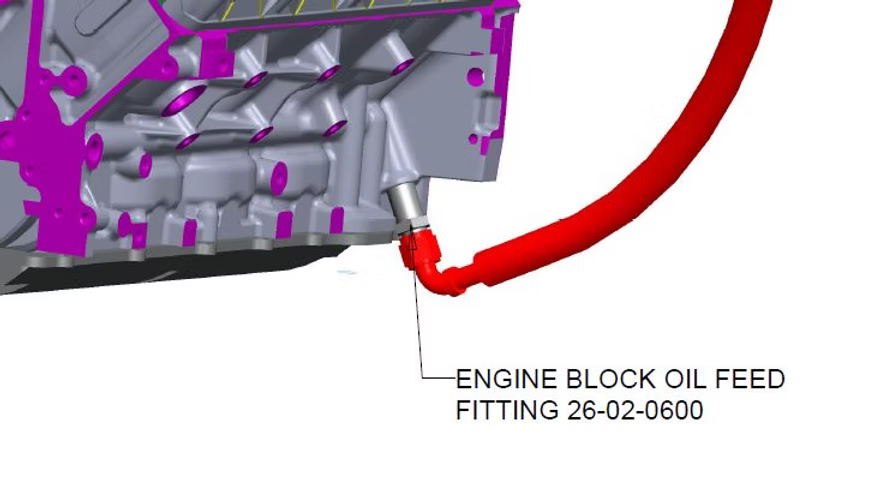

Purpose-built for LS engine builds, this Dailey Engineering oil feed fitting installs into the lower-left port just above the side bolt for the #5 main cap. It provides a clean, reliable oil feed path for dry-sump and aftermarket oiling system setups.

Installation Notes

• Remove the OEM plug to access the port — the internal plastic oil galley plug (dumbbell-shaped) must remain in place to prevent high-pressure oil from back-feeding into the galley toward the OEM oil pump location.
• If the galley plug is removed, the ports at the front of the block (where the OEM oil pump feeds) must be sealed.
• The pan gasket will need to be trimmed to accommodate this fitting.

Specifications

• Thread: 16mm
• Fitting: -10 flare
• Includes: Crush washer
• SKU: 26-02-0600
