Chassis Offset Radius Tab, 1/2" Hole, 1-3/4" Stand Off, 1-3/4" Tube - Each - BWS019500

Chassis Offset Radius Tab – 1/2" Hole, 1-3/4" Stand Off, 1-3/4" Tube Diameter

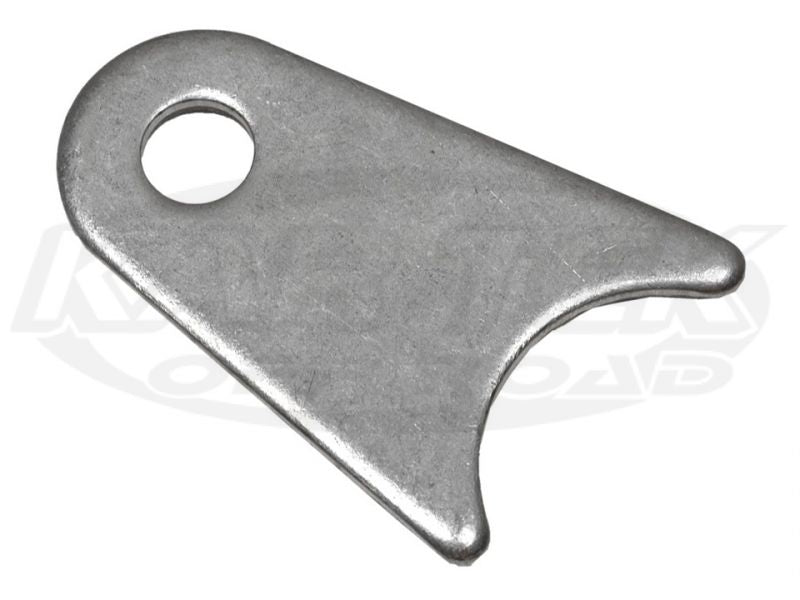

A chassis offset radius weld tab designed for applications where a standard inline tab won't work — the offset profile moves the bolt hole away from the tube centreline, providing clearance for rod ends, bolts, or adjacent components in tight chassis and suspension builds.

Fitment Notes

Use the tubing diameter diagram to confirm fitment before welding. The listed tube diameter is what the tab fits without modification. Trimming the notch allows the tab to accommodate larger tubing if needed.

Key Features

• Offset profile for bolt hole clearance away from tube centreline
• 1/2" hole diameter suits rod ends and larger fasteners
• 1-3/4" stand off for generous mounting clearance
• Radius notch for a tight, weldable fit against round tubing
• Notch trimmable to suit larger tube diameters
• Sold individually

Applications

• Suspension links and control arms
• Chassis and roll cage mounting points
• Rod end and heim joint mounts
• Steering and drivetrain pivot points
• Off-road, rally, drag, and circuit builds

Specifications
