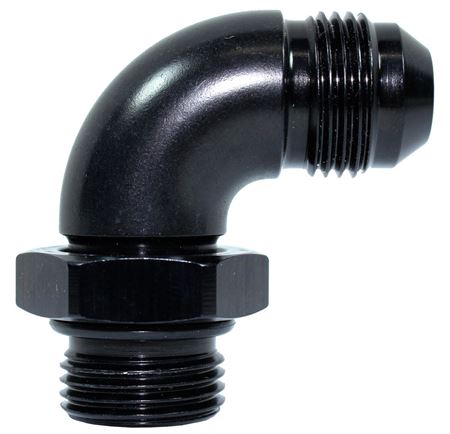

Speedflow -10AN Male to -8AN Port 90 Degree Adapter - Black 922 Series (922-10-08-BLK)

90° Male to Port Adapter with O-Ring Seal

The Speedflow 922-10-08-BLK adapter converts -10AN male threads to -8AN O-ring port at a 90-degree angle. Part of the 920 Series designed for reliable O-ring sealing on threaded ports. CNC-machined from 6061-T6 billet aluminium at Speedflow's NSW facility.

Key Features

• O-Ring Port Design: Reliable O-ring seal eliminates the need for thread sealant
• 90 Degree Configuration: Compact right-angle design for tight-space installations
• 6061-T6 Billet Aluminium: CNC-machined from solid aluminium for exceptional strength
• Hard Coat Anodised: Black finish resists corrosion and looks professional
• Stepped Size: -10AN male to -8AN port for flexible system design
• Australian Made: Manufactured by Speedflow in NSW since 1983

Technical Specifications

• Male side: -10AN (7/8"-14 UNF thread)
• Port side: -8AN O-ring port at 90 degrees
• Material: 6061-T6 billet aluminium
• Finish: Hard coat anodised black
• Seal type: O-ring (included)
• Weight: 46g

Perfect for: Connecting -10AN fittings to -8AN O-ring ports on fuel pumps, oil pans, dry sump tanks, turbo oil feeds, and any application requiring a 90-degree stepped connection.

Part number: 922-10-08-BLK | Australian stock ready to ship.
