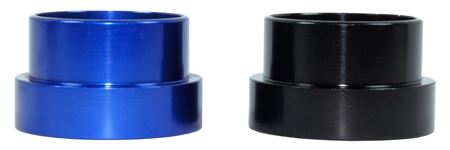

Speedflow 819-10-BLK | -10 Tube Sleeve — Black Anodised

The Speedflow 819-10-BLK is the matching tube sleeve for the SF818-10-BLK -10 AN tube nut, completing the compression-style hard line adapter system for large-bore -10 AN plumbing. The -10 AN size is purpose-built for high-volume oil, fuel, and coolant hard line circuits in serious motorsport and performance automotive builds — including dry-sump systems, high-capacity fuel delivery, and large-bore coolant circuits. Flare your tubing to 37°, slide the sleeve over the tube end, and secure with the matching tube nut for a clean, professional, leak-free hard line connection.

Why Choose the Speedflow 819-10-BLK?

• Compression tube sleeve — works in conjunction with the SF818-10-BLK tube nut to create a complete -10 AN hard line adapter
• 37° JIC/AN flare compatible — designed for use with tubing flared to the standard 37° AN flare angle
• Black hard anodised aluminium — corrosion and fluid resistant with a clean, professional finish
• Large-bore -10 AN sizing — designed for high-volume oil, fuel, and coolant hard line circuits that demand maximum flow capacity
• Lightweight construction — negligible weight impact despite the larger bore size
• Sold individually — order the exact quantity needed for your build

Ideal Applications

Dry-sump oil system hard lines, high-capacity fuel delivery hard lines, large-bore coolant circuit hard lines, and any -10 AN hard line plumbing circuit requiring a compression tube sleeve.

Important Note

Must be used with the matching SF818-10-BLK -10 AN tube nut and a 37° flaring tool. The tube must be flared before fitting the sleeve and nut. Sleeve is for hard line use only — not compatible with braided hose.

Specifications

• Part Number: SF819-10-BLK
• AN Size: -10 AN
• Type: Compression Tube Sleeve
• Flare Angle: 37° JIC/AN
• Finish: Black Hard Anodised Aluminium

Stock held locally in Perth, WA — fast dispatch Australia-wide.
