Speedflow SF383-03 | -3 AN Male to 1/8" NPT Male 90° Adapter | 380 Series

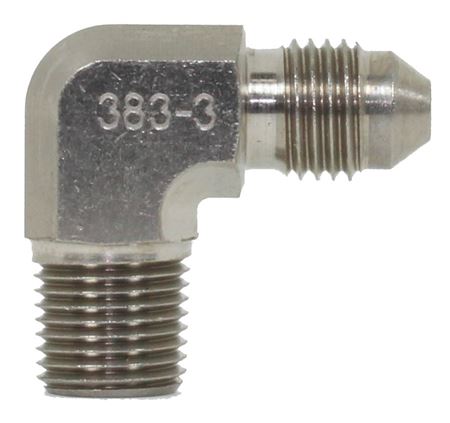

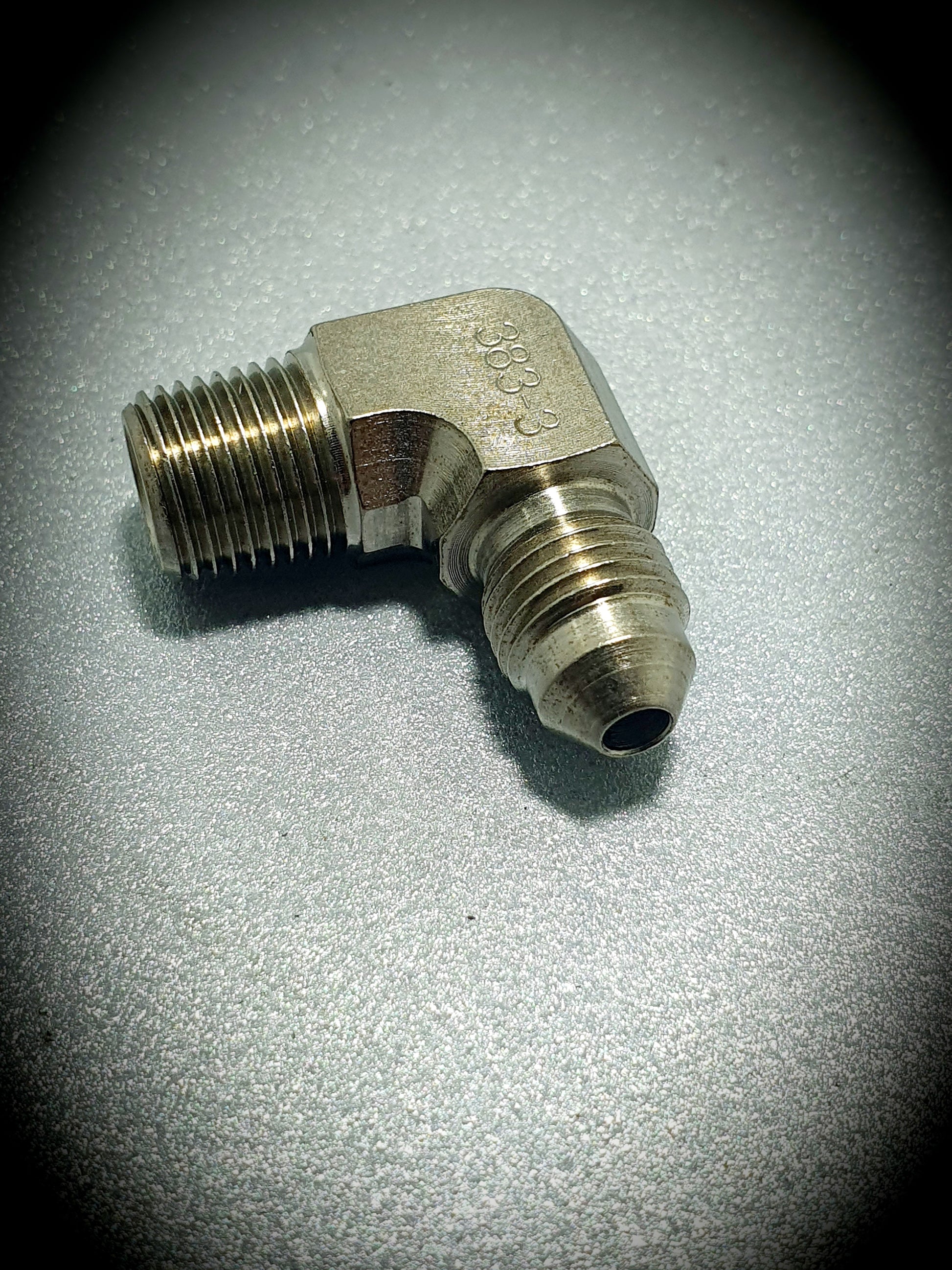

The Speedflow SF383-03 is a precision-machined -3 AN male to 1/8" NPT male 90-degree adapter, part of the Speedflow 380 series AN flare to NPT steel adapter range. The 90° angle allows the -3 AN hose end to exit perpendicular to the NPT port, making it the ideal solution for tight engine bay, caliper, and sensor installations where a straight adapter would force an awkward hose bend.

Product Specifications

• Part Number: SF383-03
• AN End: -3 AN male
• NPT End: 1/8" NPT male
• Angle: 90 degrees
• Weight: 22g
• Series: Speedflow 380 — AN Flare to NPT Steel Adapters
• Compatible With: Standard -3 AN fittings and 1/8" NPT female ports
• Barcode: 9342122003042

Applications

The SF383-03 is the go-to choice when a straight AN to NPT adapter won’t provide clean hose routing, including:

• Brake caliper and master cylinder connections where the line runs parallel to the port face
• Clutch master and slave cylinder hydraulic line connections in confined spaces
• Oil pressure gauge and sensor connections on engine blocks and heads
• Turbo oil feed line connections where a 90° exit eliminates hose stress
• Fuel pressure gauge and regulator connections requiring a right-angle exit
• Any -3 AN to 1/8" NPT application where a 90° angle improves routing and reduces hose end stress

90° vs Straight — When to Choose the Angle

A straight AN to NPT adapter works well when the hose approaches the port perpendicularly. However, when the hose runs along the component surface before connecting, a straight adapter forces a sharp bend immediately after the fitting — stressing the hose end and restricting flow. The SF383-03’s 90° angle eliminates this problem, allowing the -3 AN line to exit parallel to the component face for a clean, low-stress routing path. For straight -3 AN to 1/8" NPT applications, see our SF382-03 listing.

AN to NPT — Installation Note

NPT fittings use a tapered thread that seals via thread interference. Always apply appropriate thread sealant or PTFE tape to the NPT male threads during installation. Do not overtighten — NPT threads can crack cast components if over-torqued.

Sold individually. Weight: 22g. Compatible with standard -3 AN fittings and 1/8" NPT female ports.
