382-03 -3 male to 1/8" NPT

Speedflow SF382-03 | -3 AN Male to 1/8" NPT Adapter | 380 Series

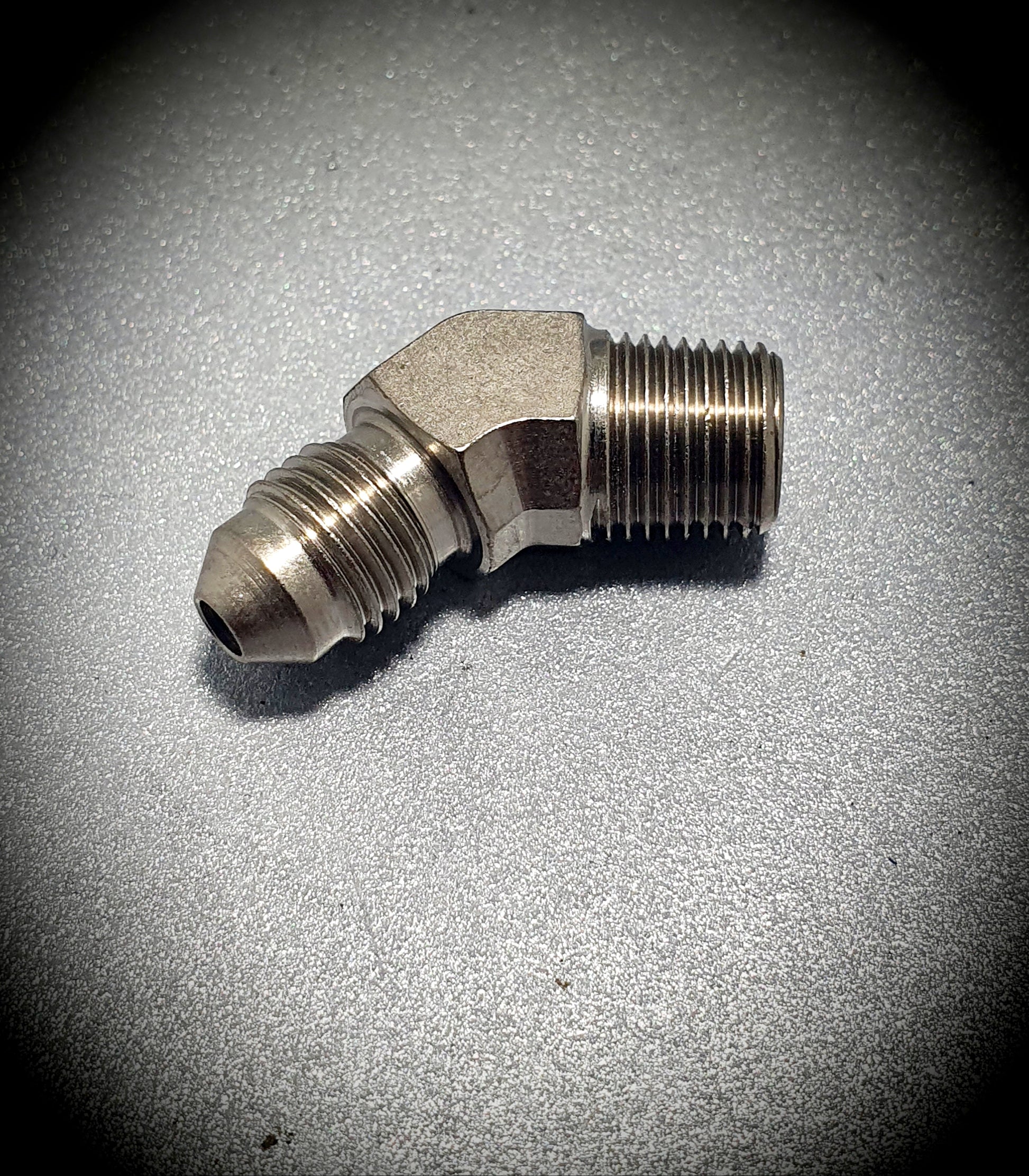

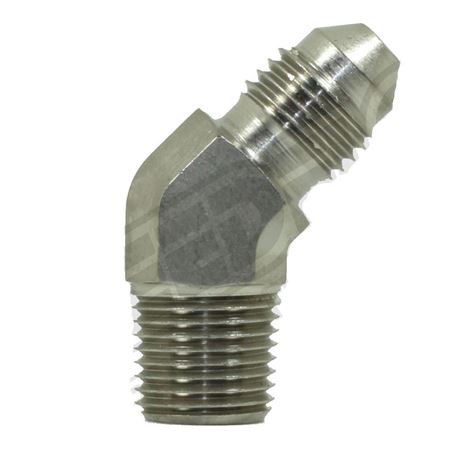

The Speedflow SF382-03 is a precision-machined -3 AN male to 1/8" NPT adapter, part of the Speedflow 380 series AN flare to NPT steel adapter range. Designed to connect -3 AN fittings to components with a 1/8" NPT port, this compact adapter is an essential fitting for performance brake, clutch, gauge, and hydraulic line builds where AN braided lines interface with NPT-ported aftermarket components.

Product Specifications

• Part Number: SF382-03
• AN End: -3 AN male
• NPT End: 1/8" NPT
• Weight: 16g
• Series: Speedflow 380 — AN Flare to NPT Steel Adapters
• Compatible With: Standard -3 AN fittings and 1/8" NPT ports
• Barcode: 9342122032004

Applications

The SF382-03 is a highly versatile adapter suited to a wide range of performance and motorsport plumbing applications, including:

• Brake caliper and master cylinder connections using -3 AN lines to 1/8" NPT ports
• Clutch master and slave cylinder hydraulic line connections
• Oil pressure gauge and sensor line connections
• Fuel pressure gauge and regulator connections
• Turbo oil feed line adaptations to 1/8" NPT ported components
• Any application requiring a -3 AN male to 1/8" NPT interface in a performance build

380 Series — AN Flare to NPT Steel Adapters

The Speedflow 380 series provides a comprehensive range of AN male to NPT adapters in steel construction, built to handle the pressures and temperatures of demanding performance and motorsport environments. The SF382-03 is the -3 AN variant in this series, offering a compact, lightweight solution for lower-flow applications such as brake lines, clutch hydraulics, and gauge connections. For higher-flow applications requiring -4 AN, see our SF380-04 listing.

AN to NPT — Installation Note

NPT fittings use a tapered thread that seals via thread interference. Always apply appropriate thread sealant or PTFE tape to the NPT threads during installation to ensure a leak-free seal. Do not overtighten — NPT threads can crack cast components if over-torqued.

Sold individually. Weight: 16g. Compatible with standard -3 AN fittings and 1/8" NPT ports.
