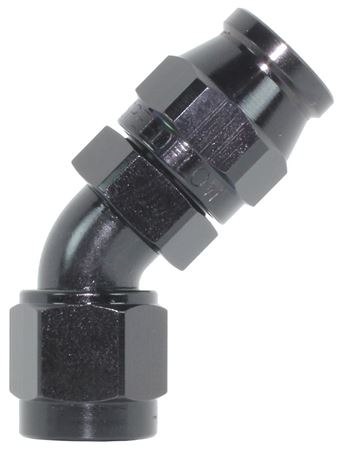

Speedflow -3AN 45 Degree Hose End - Black 202 Series (202-03-BLK)

Compact 45° Hose End for Precision Plumbing

The Speedflow 202-03-BLK hose end delivers maximum flow in a compact 45-degree angle. Full-flow formed bend design eliminates restrictions while the unique cutter-style fitting ensures leak-free performance. Precision-engineered for 200 series PTFE braided hose.

Key Features

• Full Flow Formed Bend: Maintains maximum flow with zero restrictions through the 45° angle
• Premium 6061-T6 Aluminium: CNC-machined from billet for exceptional strength and durability
• Cutter-Style Fitting: Ensures secure, leak-free seal on PTFE hose every time
• Post-Assembly Rotation: Adjust orientation after installation for perfect alignment
• Hard Coat Anodised: Black finish resists corrosion and looks professional
• Australian Made: Manufactured by Speedflow in NSW since 1983

Technical Specifications

• Size: -3AN (3/8"-24 UNF thread)
• Angle: 45 degrees
• Material: 6061-T6 billet aluminium
• Finish: Hard coat anodised black
• Compatible hose: Speedflow 200 series PTFE braided
• Design: Full-flow formed bend, cutter-style

Perfect for: Brake lines, fuel lines, oil lines, and any application requiring -3AN connections with a 45° bend angle in tight spaces.

Part number: 202-03-BLK | Australian stock ready to ship.
